GeoVision
GeoVision GV-EBD4704 Accessories
SKU:
GV-EBD4704

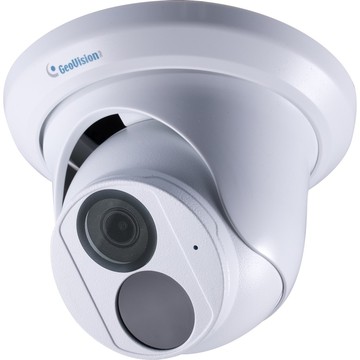

Security Cameras, GeoVision GV-EBD4704, 4 Megapixel Outdoor Network Camera, Color, Eyeball, 98.43 ft Infrared Night Vision, H.265, H.264, MJPEG, 2688 x 1520, 2.80 mm Fixed Lens, CMOS, Pendant Mount, Wall Mount, Junction Box Mount, Corner Mount, Pole Mount, IP67
Description
Products and parts from GeoVision.
Technical Specifications
| Technical Information | |
|---|---|
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared |
| Number of IR LEDs | 1 |
| Display & Graphics | |
|---|---|
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 101° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
|---|---|
| Video Formats |
|
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Lens | |
|---|---|
| Lens Type | Fixed |
| Maximum Focal Length | 2.80 mm |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
|---|---|
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
|---|---|
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Interfaces/Ports | |
|---|---|
| Network (RJ-45) | Yes |
| Power Description | |
|---|---|
| Input Voltage | 12 V DC |
| Power Source Type |
|
| Physical Characteristics | |
|---|---|
| Mount Type |
|
| Form Factor | Eyeball |
| Diameter | 5" |
| Weight (Approximate) | 15.87 oz |
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
|---|---|
| Features |
|
| Indoor/Outdoor | Outdoor |
| Package Contents |
|
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
|---|---|
| Limited Warranty | 24 Month |
