Description

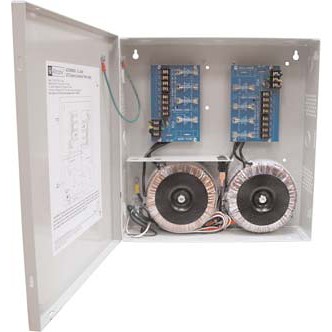

The Altronix ALTV2416 Power Supply provides 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. It has a supply current of 24VAC @ 8 amp (200VA) or 28VAC @ 7 amp (200VA). Main fuse is rated @ 10 amp/250V. It has a power ON/OFF switch. ALTV2416 Power Supply's ease of installation saves time and eliminates costly labor.
Technical Specifications
| Technical Information | |
|---|---|
| Protection Type | Surge |
| Power Description | |
|---|---|
| Input Voltage Type | AC |
| Input Voltage | 110 V AC |
| Output Voltage |
|
| Output Voltage Detail |
|
| Input Current | 5.4 A @ 110V |
| Output Current |
|
| Physical Characteristics | |
|---|---|
| Form Factor | Wall Mount |
| Height | 13.5" |
| Width | 13" |
| Depth | 3.3" |
| Weight (Approximate) | 22.60 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Compatibility |
|
| NDAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
|---|---|
| Limited Warranty | Lifetime |
