Elo

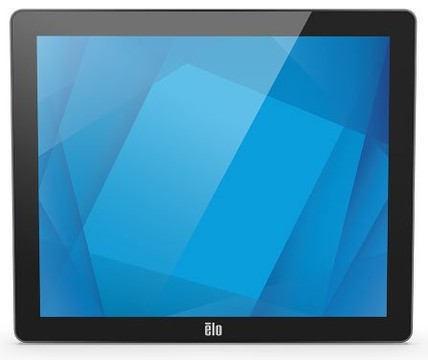

Elo EloPOS POS System, 17-Inch, Projected Capacitive, SSD, Windows 10 IoT Enterprise, Black

SKU:

E484096

Need faster checkout with a compact POS system that keeps transactions moving? The EloPOS Capacitive 17-Inch SSD Touch System combines a 17-inch projected capacitive touchscreen, Intel Celeron J processor, 4 GB RAM, and 128 GB SSD storage with Windows 10 IoT Enterprise for reliable point-of-sale performance. Its 1280 x 1024 display, responsive 5 ms response time, and built-in connectivity help support smooth operation in retail and service environments.
Description
ico-plus ico-minus

The EloPOS 17 is a professional 17-inch all-in-one POS terminal designed for retail, hospitality and service counters that require a compact, durable and easy-to-integrate checkout solution. Combining a projected capacitive touchscreen with crisp 1280 x 1024 resolution and configurable Intel processor options — from Celeron through Core i3 and Core i5 — this platform supports everyday transaction workloads while offering flexible RAM and SSD choices for varied performance needs. Built for continuous commercial operation, the system provides broad peripheral connectivity, VESA mounting for space‑saving installations and optional accessories such as barcode scanners, NFC and magnetic stripe readers to tailor deployments to specific POS environments.

Key Features

  • Responsive PCAP touch: Projected capacitive 10-point touchscreen delivers accurate, multi-touch interaction for fast checkout and self-service workflows.
  • Configurable performance: Multiple processor options and selectable RAM/SSD configurations let businesses match performance to transaction volume and application needs.
  • Broad connectivity: Includes USB, powered-USB, RS232, Bluetooth, Gigabit Ethernet and Wi‑Fi 802.11ac to integrate printers, scanners, payment devices and peripherals.
  • Commercial-grade reliability: Retail-hardened housing, anti-glare/zero-bezel display options and robust power/port provisioning support continuous daily use.
  • Flexible deployment: VESA 75 x 75 mm mounting, wall-mount/I/O hub and optional stand configurations enable space-saving counter or wall installations.

Specifications

  • Product Name: EloPOS 17 TouchPro
  • Brand: Elo
  • Screen Size: 17 in
  • Touchscreen Type: Projected Capacitive
  • Touch Points: 10
  • Display Resolution: 1280 x 1024 pixels
  • Response Time: 5 ms
  • Brightness: 212 cd/m²; 250 cd/m²
  • Viewing Angle (H/V): 170/160°
  • Contrast Ratio: 1000:1
  • Processor Options: Intel Celeron J 2.5 GHz; Intel Celeron G4900; Intel Core i3 3.1 GHz (i3-8100T); Intel Core i5 3.5 GHz
  • Memory (RAM): 4 GB; 8 GB (DDR4)
  • Storage Capacity: 128 GB SSD; 256 GB SSD
  • Storage Type / Interface: SSD (M.2, SATA) - SATA 6 Gb/s (M.2)
  • Graphics: Intel UHD Graphics 630
  • Wireless Connectivity: Wi‑Fi 802.11ac; Bluetooth (5.0 / 5.2)
  • Ethernet: Gigabit Ethernet
  • Ports: USB (various), Powered-USB (up to 3), RS232 ports (2), Audio 3.5 mm
  • VESA Mount Dimensions: 75 x 75 mm
  • Color: Black
  • Operating System: Windows 10; Windows 10 IoT Enterprise (optional); models available with no OS
  • Included / Optional Accessories: I/O hub stand, optional barcode reader (1D/2D), webcam, NFC reader, magnetic stripe reader
  • Dimensions (without stand): 15.5 x 12.8 x 3.3 in
  • Weight (without stand): 10.6 lb
  • Power Provided: 180 W (selected configurations)
  • Embedded Security: Trusted Platform Module (TPM 2.0) (selected configurations)

Main Features

  • Touch: Yes

  • POS: Yes

  • Screen size: 17 inch

  • Connection: Bluetooth, Ethernet, USB, RS232, Serial

  • Screen type: Capacitve

Technical Specifications
ico-plus ico-minus
Processor & Chipset
Processor Type Celeron
Processor Core Quad-core (4 Core)
Processor Speed 1.50 GHz
Memory
Standard Memory 4 GB
Memory Technology DDR4 SDRAM
Storage
Solid State Drive Capacity 128 GB
Solid State Drive Interface M.2/SATA
Display & Graphics
Screen Size 17"
Display Screen Type LCD
Touchscreen Yes
Graphics Controller Model UHD Graphics 600
Network & Communication
Wireless LAN Yes
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
USB Yes
Powered USB Yes
Network (RJ-45) Yes
Cash Drawer Port Yes
Serial Port Yes
Software
Operating System Windows 10
Physical Characteristics
Color Family Black
Product Color Black
Height 12.8"
Width 15.5"
Depth 3.3"
Weight (Approximate) 10.58 lb
Miscellaneous
Energy Star Yes
Country of Origin China
Documents
ico-plus ico-minus
Product document elopos-17-2021.pdf E484096 Product document mod-elopos-system-17-elo-all-in-one-datasheet.pdf MOD-ELOPOS-SYSTEM-17 Product document mod-elopos-system-17-elo-all-in-one-quick-guide.pdf MOD-ELOPOS-SYSTEM-17 Product document mod-elopos-system-17-elo-all-in-one-user-manual.pdf MOD-ELOPOS-SYSTEM-17
FAQs
ico-plus ico-minus
What touchscreen technology does the Elo EloPOS 17 use, and how many touch points does it support?
The EloPOS 17 uses a projected capacitive (PCAP) touchscreen that supports 10 simultaneous touch points, making it suitable for both attended checkout and self-service workflows.
Which processor configurations are available for the Elo EloPOS 17?
The EloPOS 17 is offered with four processor options: Intel Celeron J at 2.5 GHz, Intel Celeron G4900, Intel Core i3-8100T at 3.1 GHz, and Intel Core i5 at 3.5 GHz, allowing buyers to match compute performance to their transaction volume.
What peripheral connectivity does the Elo EloPOS 17 provide for integrating POS hardware?
The terminal includes USB ports, up to three powered-USB ports, two RS232 serial ports, a 3.5 mm audio jack, Gigabit Ethernet, Wi-Fi 802.11ac, and Bluetooth (5.0 or 5.2), covering the most common requirements for connecting receipt printers, payment devices, and scanners.
Can the Elo EloPOS 17 be mounted on a wall or configured for counter-space-saving installations?
Yes, the EloPOS 17 supports VESA 75 x 75 mm mounting and is compatible with optional wall-mount and I/O hub stand configurations for flexible counter or wall installations.
What optional accessories can be added to the Elo EloPOS 17 to extend its point-of-sale capabilities?
Optional accessories include a 1D/2D barcode reader, NFC reader, magnetic stripe reader, webcam, and an I/O hub stand, allowing the system to be tailored to specific retail, hospitality, or service-counter environments.
What are the display resolution, brightness, and contrast ratio specifications for the Elo EloPOS 17?
The 17-inch display offers 1280 x 1024 pixel resolution, a contrast ratio of 1000:1, a 5 ms response time, and brightness of either 212 cd/m² or 250 cd/m², with a wide 170/160-degree horizontal/vertical viewing angle.
