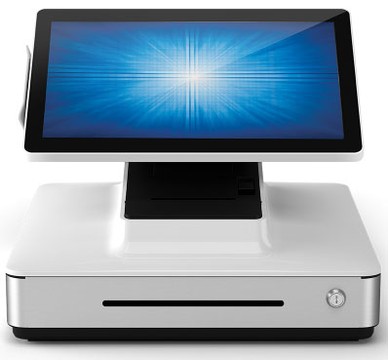

Elo PayPoint ProTouch System POS System 15.6-inch, PCAP, Intel Core i5-8500T, 8GB, 512GB SSD, 3-inch printer

The Elo PayPoint All-in-One Touch POS System is a modular point-of-sale terminal family that consolidates touchscreen interaction, receipt printing, barcode scanning, magnetic stripe reading and cash drawer support into a compact chassis for retail, hospitality and quick-service environments. Designed to accelerate checkout flows and reduce countertop clutter, these terminals are offered in multiple configurations—from fanless 13.3" units to 15.6" high‑definition models—providing options for performance, storage and connectivity to match deployment requirements. Benefits include simplified installation, integrated peripherals for turnkey operation, secure platform options (TPM/Intel AMT) and flexible wired and wireless I/O to support peripherals and remote management in demanding commercial settings.

Key Features

• Integrated peripheral ecosystem: Built-in receipt printer, 2D barcode scanner and encryptable MSR with full-size cash drawer options deliver a complete checkout solution with minimal external components.
• Touch-first displays: Projected capacitive (PCAP) and projective capacitive multi-touch screens (13.3" and 15.6") provide responsive, accurate input for staff and customers, including multi-touch and 5-point support where specified.
• Scalable hardware configurations: Models range from fanless Celeron-based units to Core i5 systems with TPM 2.0 and Intel AMT support, enabling choices between low-power reliability and higher processing performance.
• Flexible connectivity: Wired and wireless networking with Gigabit Ethernet, 802.11 b/g/n/ac Wi‑Fi and Bluetooth 5.0 plus multiple USB, serial and video ports for peripheral expansion and integration.
• Space-efficient, service-ready design: All-in-one enclosures in white or black minimize footprint and cabling, simplify installation, and are optimised for high-traffic retail and hospitality counters.

Specifications

• Processor (options): Intel Core i5-8500T (Coffee Lake, up to 3.50 GHz); Intel Celeron J1900 (Bay Trail‑D) 1.99 GHz, quad-core
• Memory (RAM): 4 GB; 8 GB
• Storage (options): 128 GB SSD (SSD, 72 TBW reported); 320 GB
• Display sizes: 15.6 in; 13.3 in
• Display resolution: 1920 x 1080 @ 60Hz (Full HD, for 15.6" variants)
• Touch technology: Projected Capacitive (PCAP) / TouchPro; multi-touch and 5-point touch where specified
• Printer: Star TSP100III 3" (80 mm) thermal receipt printer with auto-cutter
• Printer speed (reported): 230 mm/sec; 250 mm/sec (varies by configuration)
• Barcode scanner: Honeywell 2D scanner (N4680 series reported)
• Magnetic Stripe Reader (MSR): MagTek 3-track encryptable MSR
• Cash drawer: Full-size 16" drawer; configurations include 5 bill x 6 coin (NA/China) and 4 bill x 8 coin (worldwide)
• Security / manageability: TPM 2.0; Intel AMT 12.0 (on supported models)
• Wireless: 802.11 b/g/n/ac Wi‑Fi; Bluetooth 5.0 / BLE 5.0
• Ethernet: 1 Gigabit LAN
• Ports / I/O (example): Multiple USB Type‑A (including powered 12V USB), serial (RJ45) ports, micro HDMI, RJ12 cash drawer port
• Form factor / color: All-in-one POS terminal; available in White and Black enclosures
• Cooling: Fanless designs for select 13.3" models
• Power: 100–240 VAC; typical power consumption reported ~51.86 W (depends on model)
• Dimensions (example): 16.18" x 12.71" x 16.53" (representative 15.6" model)
• Weight (unpackaged): 22.47 lb (reported for select configuration)
• Operating system options: Windows 10 (including Windows IoT variants) or No OS (pretested with Linux distributions in some configurations)
