Elo

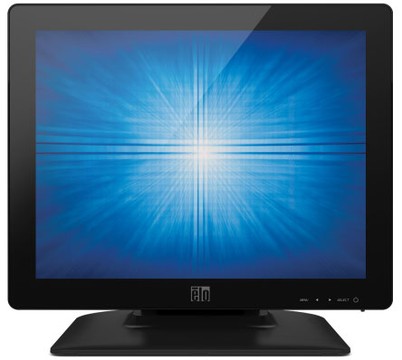

Elo 1523L, 15'', iTouch Plus, black

SKU:

E394454

IntelliTouch Zero-Bezel, USB interface, Antiglare. Color: Black
Description
ico-plus ico-minus

The Elo 1523L Touchscreen Monitor is designed for today's high-traffic retail and hospitality environments, offering a sleek zero-bezel style that blends effortlessly into any setup. This 15-inch LED desktop touchmonitor is built for touch reliability, ensuring durability and responsiveness with advanced multitouch capabilities. With a dual-position stand and energy-efficient LED technology that saves up to 40%, this monitor is perfect for Point-of-Service, kiosks, and more. The 1523L supports up to 10 touch interactions simultaneously and includes integrated cable management for a tidy workspace.


Key Features
  • Zero-Bezel Design: Sleek, modern look with a flat glass surface.
  • Built for Touch: Spill-resistant and durable construction.
  • Multi-Touch Technology: Supports up to 10 touch points with intuitive interfaces.
  • Flexible Connectivity: Integrated options for MSR, NFC/RFID, and webcam.
  • Energy Efficient: 40% savings with advanced LED technology.
  • Adjustable Stand: Dual-position with tilt functionality for optimal viewing.

Specifications
  • Model: 1523L
  • Color: Black or White
  • Active Display Area: 11.97" x 9.98" (304.128mm x 228.096mm)
  • Dimensions: 14.1" x 7.84" x 12.54" (358.1mm x 199.1mm x 318.5mm)
  • LCD Technology: Active matrix TFT LCD with LED backlighting
  • Display Size: 15 inches
  • Native Resolution: 1024 x 768
  • Brightness: 250 nits
  • Contrast Ratio: 700:1
  • VESA Mounting: Yes (75mm)
  • Weight: 9.25 lbs (4.2kg) unpackaged
  • Warranty: 3 years

Main Features

  • Touch: Yes

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 15"
Viewable Screen Size 15"
Screen Surface
  • Anti-glare
  • Anti-scratch
Response Time 25 ms
Aspect Ratio 4:3
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Adjustable Display Angle Yes
Adjustable Display Height Yes
Mount Type
  • Desk Mountable
  • Wall Mountable
Features
  • Security Lock
  • Water Proof
  • Cable Management
Adjustable Stand Yes
Video
Maximum Resolution 1024 x 768
Standard Refresh Rate 60 Hz
Color Supported 16.2 Million Colors
Contrast Ratio 700:1
Brightness 250 Nit
Audio
Speakers Yes
Touchscreen Information
Touchscreen Yes
Touchscreen Type Surface Acoustic Wave
Multi-touch Screen Yes
Interfaces/Ports
DVI Yes
USB Yes
VGA Yes
Built-in Devices
Built-in Devices USB Hub
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
Operating Power Consumption 12 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Product Color Black
Height with Stand 7.83"
Width with Stand 14.09"
Depth with Stand 12.52"
Weight (Approximate) 5.84 lb
Weight with Stand (Approximate) 9.79 lb
Miscellaneous
Package Contents
  • 1523L Multifunction 15-Inch Desktop Touchmonitor
  • Touch Cables
  • Video Cables
Certifications & Standards
  • UL/cUL
  • FCC-A
  • Semko
  • CE
  • VCCI
  • C-Tick
Platform Supported PC
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 1532l-2021.pdf E394454
