Elo

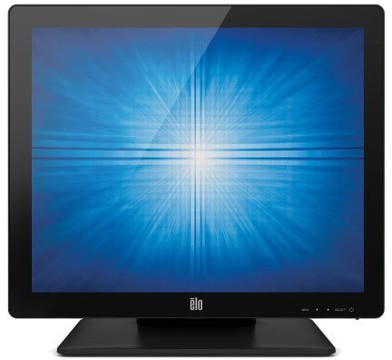

Elo 1517L rev. B, 38.1 cm (15''), IT, black

SKU:

E344758

Fitted with IntelliTouch Surface Wave single-touch technology, the Elo E344758 is a 15-inch LCD touchscreen monitor running at 1024 x 768 resolution with a 4:3 aspect ratio, 700:1 contrast ratio and 250 Nit brightness across an anti-glare panel with 160-degree horizontal and 140-degree vertical viewing angles. The LED backlight draws just 10 W at operating load and accepts input at both 110 V AC and 220 V AC, covering worldwide deployments. A 25 ms response time and 75 Hz refresh rate support responsive interaction in POS, kiosk and interactive signage roles, while USB 1.1, serial and VGA interfaces handle connectivity. The 75 x 75 VESA mount pattern, adjustable display angle and desk-mountable stand offer installation flexibility, and the 15.60 lb chassis ships in black. Certifications include UL, cUL, FCC, CE, CB, VCCI, CCC, KCC, BSMI, C-Tick, IC, IMERC, e-Standby, CoC and IEC 60320 C6, backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo Touch Solutions 1717L is a 17-inch commercial-grade LCD touchscreen monitor designed for procurement and IT buyers deploying point-of-sale, point-of-information, interactive digital signage, and loyalty systems in high-traffic retail and hospitality environments. Built on an active matrix TFT LCD panel with LED backlighting, it delivers a native resolution of 1280 x 1024 at SXGA, a 800:1 contrast ratio, 250 Nit brightness, and wide viewing angles of 170° horizontal and 160° vertical, ensuring clear visibility across the counter. Surface Acoustic Wave touch technology provides precise, durable touch response, while Serial (RS232) and USB touch interfaces support straightforward integration with existing POS infrastructure. Flexible VESA 75 x 75 mounting and a 5 ms response time round out a monitor engineered for continuous public use, backed by a 3-year standard warranty.

Main Features

  • Touch: Yes

  • Connection: USB, Serial

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 15"
Viewable Screen Size 15"
Screen Mode XGA-2
Screen Surface Anti-glare
Response Time 25 ms
Aspect Ratio 4:3
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Adjustable Display Angle Yes
Mount Type Desk Mountable
Backlight Technology LED
Features Security Lock
Video
Maximum Resolution 1024 x 768
Standard Refresh Rate 75 Hz
Color Supported 16.2 Million Colors
Contrast Ratio 700:1
Brightness 250 Nit
Touchscreen Information
Touchscreen Yes
Touchscreen Type IntelliTouch Surface Wave
Interfaces/Ports
USB Yes
USB Standard USB 1.1
VGA Yes
Serial Port Yes
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
Operating Power Consumption 10 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Product Color Black
Height 19"
Width 9.1"
Height with Stand 12.50"
Width with Stand 14.10"
Depth with Stand 6.80"
Weight (Approximate) 15.60 lb
Weight with Stand (Approximate) 9 lb
Miscellaneous
Package Contents
  • 1517L Rev A Multifunction 15-inch Desktop Touchmonitor
  • Power Cable
  • Touch/Video Cables
Certifications & Standards
  • C-Tick
  • cUL
  • IC
  • CCC
  • CE
  • VCCI
  • KCC
  • e-Standby
  • CoC
  • BSMI
  • UL
  • FCC
  • CB
  • IMERC
  • IEC 60320 C6
Platform Supported PC
Environmentally Friendly Yes
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 1517l-2021.pdf E344758  (PDF)
FAQs
ico-plus ico-minus
What touch technologies are available on the Elo Touch 1517L and 1717L touchscreen monitors?
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch surface acoustic wave, or iTouch zero-bezel surface acoustic wave technology, while the 1717L is also offered with AccuTouch, IntelliTouch, and iTouch technologies. Both models are available in traditional bezel or edge-to-edge zero-bezel configurations depending on the touch technology chosen.
What are the native resolutions of the Elo Touch 1517L and 1717L monitors?
The 1517L has a native resolution of 1024 x 768 on its 15.0-inch, 4:3 panel, while the 1717L has a native resolution of 1280 x 1024 on its 17.0-inch, 5:4 panel.
How do the Elo Touch 1517L and 1717L connect to a host system for touch input?
Both monitors support Serial (RS232) and USB touch interfaces, giving integrators the flexibility to connect via whichever port their POS or kiosk host system provides.
What mounting options are supported by the Elo Touch 1517L and 1717L monitors?
Both models support desktop use with the included stand, wall mounting, and VESA mounting via a four-hole 75 mm mounting interface on the rear of the unit. The stand base also includes a threaded three-hole mounting pattern for securing the monitor to a flat surface.
What is the standard warranty on the Elo Touch 1517L and 1717L monitors, and is an extended warranty available?
Both monitors include a 3-year standard warranty. For the 1517L, extended warranty options are available from Elo covering 4-year and 5-year terms, as well as options that include Advance Unit Replacement (AUR) coverage.
Can the Elo Touch 1517L or 1717L be fitted with a magnetic stripe reader for POS use?
Yes, both models support an optional field-installable 3-track magnetic stripe reader (MSR) that integrates directly into the monitor, eliminating the need for external brackets. The MSR is programmable to either HID or Keyboard Emulation mode.
