Elo

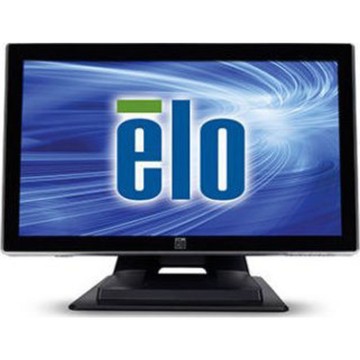

Elo 1519LM, de 39,6 cm (15,6 ''), capacitiva proyectada, blanco

SKU:

E277603

The Elo E277603 is a 15-inch WXGA LCD touchscreen monitor built for medical and healthcare settings, drawing only 18.40 W at operating power. It renders 1366 x 768 at 250 Nit brightness with a 500:1 contrast ratio, 16.7 million colors, an 8 ms response time, and a 16:9 aspect ratio across a 15-inch viewable area. The horizontal viewing angle spans 90 degrees and the vertical 65 degrees, while an adjustable display angle and security lock add flexibility and physical security. Connectivity covers DVI, VGA, USB, serial, and headphone ports, and built-in speakers are included. The white chassis weighs 11.46 lb and measures 12.2 in tall by 13.8 in wide by 6.9 in deep, with VESA 75 x 75 mount compatibility for wall or stand installation. Compliance with EN 60950-1, EN60601-1, EN55022, EN55024, and EN 60601-1-2, plus RoHS, supports deployment across healthcare and regulated environments.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 1519LM is a 15-inch LCD touchscreen monitor engineered for medical, healthcare, and point-of-sale environments where reliability and hygiene-conscious design are essential. Built by Elo Touch Solutions, it supports both IntelliTouch surface acoustic wave and AccuTouch five-wire resistive touch technologies, giving facilities the flexibility to choose the interaction method that best suits their workflow. The monitor delivers a 1366 x 768 WXGA resolution across a 16:9 panel with 250 Nit brightness and a 500:1 contrast ratio, rendering 16.7 million colors clearly for clinical recordkeeping, patient self-service kiosks, and front-desk admissions. Connectivity options include DVI, VGA, USB, serial, and a headphone jack, while VESA 75 x 75 mount compatibility and an adjustable display angle simplify installation. Compliance with EN 60950-1, EN 60601-1, EN 55022, EN 55024, EN 60601-1-2, and RoHS standards underscores its suitability for regulated healthcare settings.

Main Features

  • Connection: USB, Serial

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 15"
Viewable Screen Size 15"
Screen Mode WXGA
Response Time 8 ms
Aspect Ratio 16:9
Horizontal Viewing Angle 90°
Vertical Viewing Angle 65°
Adjustable Display Angle Yes
Features Security Lock
Video
Maximum Resolution 1366 x 768
Color Supported 16.7 Million Colors
Contrast Ratio 500:1
Brightness 250 Nit
Audio
Speakers Yes
Touchscreen Information
Touchscreen Yes
Interfaces/Ports
DVI Yes
USB Yes
VGA Yes
Headphone Yes
Serial Port Yes
Power Description
Operating Power Consumption 18.40 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Product Color White
Height 12.2"
Width 13.8"
Depth 6.9"
Weight (Approximate) 11.46 lb
Documents
ico-plus ico-minus
Product document elo-1919l.pdf E277603  (PDF)
FAQs
ico-plus ico-minus
What screen sizes are available in the Elo Touch 1519LM and 1919LM touchscreen monitor lineup?
The lineup includes a 15-inch model (1519LM) and a 19-inch model (1919LM), both in a widescreen 16:9 format designed for healthcare and medical environments.
Which touch technologies do the Elo Touch 1519LM and 1919LM support?
Both monitors are available with IntelliTouch surface acoustic wave and AccuTouch five-wire resistive touch technologies, as well as APR on the 1919LM.
What safety and EMC certifications do the Elo Touch 1519LM and 1919LM meet?
These monitors comply with EN60950-1, EN60601-1, EN55022, EN55024, and EN60601-1-2, and also meet RoHS compliance requirements.
What connectivity options do the Elo Touch 1519LM and 1919LM offer?
Both monitors include USB and serial touch controller connections, along with DVI and VGA video inputs and built-in speakers.
Are the Elo Touch 1519LM and 1919LM suitable for patient-facing or self-service deployments in clinical settings?
Yes, their healthcare certifications, IPX1 water-drip resistance rating, and white enclosure make them well suited for patient admittance, electronic medical records, and patient self-service kiosk applications in hospitals, medical offices, and treatment centers.
What warranty and mounting options come with the Elo Touch 1519LM and 1919LM?
Both monitors include a 3-year warranty and are VESA mount compatible with a removable base, allowing installation on walls or stands.
