Elo

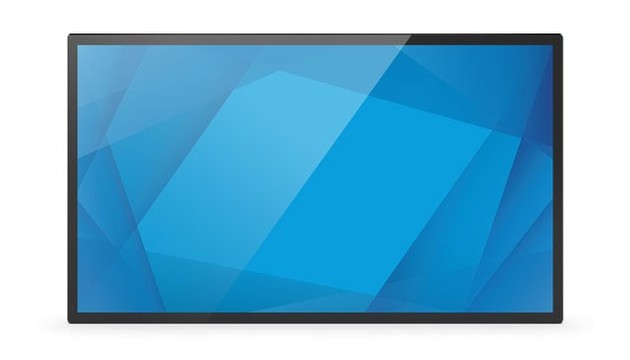

ET6554L-2UWA-1-MT-ZB-GY-G

SKU:

E104912

Rated IK07 for impact resistance and engineered for 24 Hours/7 Days operation, the Elo E104912 is a 64.50-inch LCD digital signage display delivering 3840 x 2160 resolution at 430 Nit brightness with a 1,100:1 native contrast ratio and 10-bit color depth. Its PCAP touch panel supports 40 simultaneous touchpoints at an 8 ms response time, and Touch Thru Glass capability allows mounting behind mirrors, counters or fully encased kiosks. Two HDMI 2.0 ports, DisplayPort, USB Type-C and Ethernet cover connectivity, while landscape, portrait and tabletop orientations are supported via a 600 x 600 VESA mount pattern. Operating from 32°F (0°C) to 104°F (40°C), the display measures 58.7 in wide by 34.1 in tall by 3.4 in deep and weighs 110.23 lb. Energy Star qualified, it carries a three-year standard warranty with advance unit replacement under the EloCare program.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo 6554L is a 65-inch commercial-grade interactive digital signage display built for businesses that demand reliable, high-impact touchscreen engagement around the clock. Rated for 24/7 operation and IK07 impact protection, it is well suited for retail, kiosk, wayfinding, hospitality, and corporate environments where continuous uptime and durability are non-negotiable. Its 4K LCD panel delivers 3840 x 2160 resolution at 430 Nit brightness with a 1,100:1 native contrast ratio and 10-bit color depth, ensuring vivid, detailed imagery in high-traffic spaces. Support for up to 40 simultaneous touch points and an 8 ms response time make interactions fast and fluid, while Ethernet, USB, HDMI, DisplayPort, and USB Type-C connectivity provide broad integration flexibility. Wall and table mounting options, plus a 600 x 600 VESA pattern, allow landscape, portrait, and tabletop deployment to suit virtually any installation.

Main Features

  • Touch: Yes

  • Connection: USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Impact Protection (IK) Rating IK07
Operation Hours 24 Hours/7 Days
Display & Graphics
Number of Screens 1
Viewable Screen Size 64.50"
Display Screen Type LCD
Touchscreen Yes
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 40
Display Resolution 3840 x 2160
Response Time 8 ms
Aspect Ratio 16:9
Backlight Technology LED
Orientation Landscape/Portrait
Maximum LED Life 5.7 Year
Video
Scan Format 2160p
Native Contrast Ratio 1,100:1
Color Depth 10-bit
Brightness 430 Nit
Network & Communication
Ethernet Yes
Interfaces/Ports
USB Yes
HDMI Yes
DisplayPort Yes
USB Type-C Yes
Number of HDMI 2.0 Ports 2
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Minimum Storage Temperature -4°F (-20°C)
Maximum Storage Temperature 140°F (60°C)
Minimum Operating Humidity 20%
Maximum Operating Humidity 80%
Minimum Storage Humidity 10%
Maximum Storage Humidity 95%
Physical Characteristics
Color Family Black
Product Color Black
VESA Mount Standard 600 x 600
Mount Type
  • Table Mount
  • Wall Mountable
Height 34.1"
Width 58.7"
Depth 3.4"
Weight (Approximate) 110.23 lb
Miscellaneous
Application/Usage
  • Retail
  • Kiosk
  • Wayfinding
  • Hospitality
  • Commercial
  • Business
Energy Star Yes
Documents
ico-plus ico-minus
Product document 6553l.pdf E104912 Product document 6553l.pdf MOD-6554L
FAQs
ico-plus ico-minus
How many simultaneous touch points does the Elo 6554L support, and what touch technology does it use?
The Elo 6554L uses TouchPro® Projected Capacitive (PCAP) technology and supports up to 40 simultaneous touch points, delivering fast, responsive multi-touch interaction suited to high-traffic environments.
What is the native display resolution and brightness of the Elo 6554L?
The 6554L outputs a native 3840 x 2160 (4K UHD) resolution at 60 Hz with a typical brightness of 500 nits and a contrast ratio of 1100:1, ensuring clear visibility across a wide range of commercial settings.
Is the Elo 6554L built for continuous operation in demanding environments?
Yes, the 6554L is rated for 24/7 operation and carries an IK-07 impact protection rating, making it suitable for high-traffic locations such as retail stores, kiosks, wayfinding installations, and hospitality venues.
What mounting orientations and VESA patterns does the Elo 6554L support?
The display can be mounted in landscape, portrait, or tabletop orientations and is compatible with a 400 mm x 400 mm VESA pattern as noted in the product specifications.
What connectivity options are available on the Elo 6554L?
The 6554L includes Ethernet and USB connectivity, and the reference data also lists HDMI, DisplayPort, and USB Type-C ports, giving integrators flexible options for connecting source devices and peripherals.
What warranty coverage comes standard with the Elo 6554L?
The 6554L includes a 3-year standard warranty, and Elo's EloCare program provides complimentary advance unit replacement should the display require service during the warranty period.
