Elo

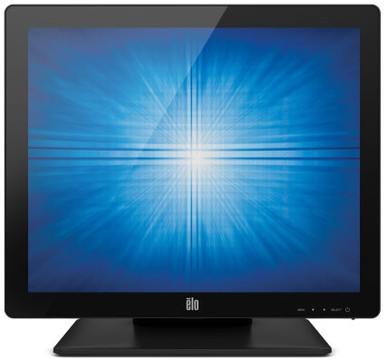

Elo 1717L rev. B, 43.2 cm (17''), iTouch, black

SKU:

E017030

Surface Acoustic Wave touch technology on the Elo E017030 sets this 17-inch LCD monitor apart for single-touch point-of-sale, point-of-information and interactive signage deployments. The anti-glare panel resolves to 1280 x 1024 in SXGA mode at a 5:4 aspect ratio, delivering 250 Nit brightness, an 800:1 contrast ratio and 16.7 million colors with a 5 ms response time and 75 Hz refresh rate. Viewing angles reach 170 degrees horizontal and 160 degrees vertical, backed by LED backlighting. Operating power consumption is 20 W, dropping to 1.80 W in standby and 1.40 W off-mode, with input voltage accepted at 110 V AC, 220 V AC or 12 V DC. Connectivity covers USB, VGA and a serial port. The black chassis weighs 11.90 lb and supports desk, pole and wall installation via a 75 x 75 VESA mount pattern. Certifications include UL, FCC, CE, cUL, CCC, VCCI, KCC and CB, and the unit carries a 3 Year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Elo Touch Solutions 1717L is a 17-inch commercial-grade LCD touchscreen monitor designed for procurement and IT buyers deploying point-of-sale, point-of-information, interactive digital signage, and loyalty systems in high-traffic retail and hospitality environments. Built on an active matrix TFT LCD panel with LED backlighting, it delivers a native resolution of 1280 x 1024 at SXGA, a 800:1 contrast ratio, 250 Nit brightness, and wide viewing angles of 170° horizontal and 160° vertical, ensuring clear visibility across the counter. Surface Acoustic Wave touch technology provides precise, durable touch response, while Serial (RS232) and USB touch interfaces support straightforward integration with existing POS infrastructure. Flexible VESA 75 x 75 mounting and a 5 ms response time round out a monitor engineered for continuous public use, backed by a 3-year standard warranty.

Main Features

  • Touch: Yes

  • Connection: USB, Serial

Technical Specifications
ico-plus ico-minus
Technical Information
Screen Size Class 17"
Viewable Screen Size 17"
Screen Mode SXGA
Screen Surface Anti-glare
Response Time 5 ms
Aspect Ratio 5:4
Horizontal Viewing Angle 170°
Vertical Viewing Angle 160°
Mount Type
  • Desk Mountable
  • Pole Mount
  • Wall Mountable
Backlight Technology LED
Features Security Lock
Horizontal Frequency 80 kHz
Video
Maximum Resolution 1280 x 1024
Standard Refresh Rate 75 Hz
Color Supported 16.7 Million Colors
Contrast Ratio 800:1
Brightness 250 Nit
Touchscreen Information
Touchscreen Yes
Touchscreen Type Surface Acoustic Wave
Interfaces/Ports
USB Yes
VGA Yes
Serial Port Yes
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
  • 12 V DC
Operating Power Consumption 20 W
Standby Power Consumption 1.80 W
Off-Mode Power Consumption 1.40 W
Physical Characteristics
VESA Mount Compatible Yes
VESA Mount Standard 75 x 75
Color Family Black
Product Color Black
Height 14.2"
Height with Stand 14.20"
Width with Stand 15.40"
Depth with Stand 7.50"
Weight (Approximate) 11.90 lb
Weight with Stand (Approximate) 11.90 lb
Miscellaneous
Package Contents
  • 1717L Rev B 17-inch Multifunction Desktop
  • Power Cable
  • Detachable Touch and Video Cables
Certifications & Standards
  • Argentina S-mark
  • Australia C-Tick
  • Canada cUL
  • IC
  • China CCC
  • Europe CE
  • Japan VCCI
  • Korea KCC
  • Mexico CoC
  • Taiwan BSMI Mark
  • United States UL
  • FCC
  • International CB
  • IMERC
Environmentally Friendly Yes
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 1717l-2021.pdf E017030  (PDF)
FAQs
ico-plus ico-minus
What touch technologies are available on the Elo Touch 1517L and 1717L touchscreen monitors?
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch surface acoustic wave, or iTouch zero-bezel surface acoustic wave technology, while the 1717L is also offered with AccuTouch, IntelliTouch, and iTouch technologies. Both models are available in traditional bezel or edge-to-edge zero-bezel configurations depending on the touch technology chosen.
What are the native resolutions of the Elo Touch 1517L and 1717L monitors?
The 1517L has a native resolution of 1024 x 768 on its 15.0-inch, 4:3 panel, while the 1717L has a native resolution of 1280 x 1024 on its 17.0-inch, 5:4 panel.
How do the Elo Touch 1517L and 1717L connect to a host system for touch input?
Both monitors support Serial (RS232) and USB touch interfaces, giving integrators the flexibility to connect via whichever port their POS or kiosk host system provides.
What mounting options are supported by the Elo Touch 1517L and 1717L monitors?
Both models support desktop use with the included stand, wall mounting, and VESA mounting via a four-hole 75 mm mounting interface on the rear of the unit. The stand base also includes a threaded three-hole mounting pattern for securing the monitor to a flat surface.
What is the standard warranty on the Elo Touch 1517L and 1717L monitors, and is an extended warranty available?
Both monitors include a 3-year standard warranty. For the 1517L, extended warranty options are available from Elo covering 4-year and 5-year terms, as well as options that include Advance Unit Replacement (AUR) coverage.
Can the Elo Touch 1517L or 1717L be fitted with a magnetic stripe reader for POS use?
Yes, both models support an optional field-installable 3-track magnetic stripe reader (MSR) that integrates directly into the monitor, eliminating the need for external brackets. The MSR is programmable to either HID or Keyboard Emulation mode.
