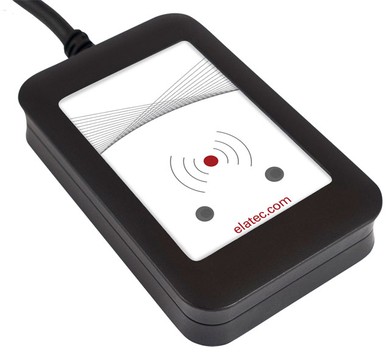

Elatec TWN4 MultiTech 2 BLE-P DT-U20-b

Elatec's TWN4 MultiTech for LF/HF/NFC RFID Reader is designed for versatility, enabling the reading and writing of various 125kHz/134.2kHz and 13.56MHz tags. With an innovative SDK for application development, this reader provides seamless integration for all major transponders including MIFARE and LEGIC. Its compact design and dual communication support (USB and RS232) make it suitable for diverse use cases, from OEM solutions to desktop configurations, all while ensuring compliance with worldwide certifications.
Key features:

• Powerful SDK for writing applications directly on the reader
• Infield Upgradeable for enhanced functionality
• Power down mode for optimal energy efficiency
• Two onboard SAM sockets for secure data processing
• Supports multiple interfaces: I²C, SPI, Wiegand, and CAN
• Worldwide certifications for reliable global use

Specifications:

• Frequency: 125kHz, 134.2kHz (LF) / 13.56MHz (HF)
• Housing Material: ABS UL94-V0
• Dimensions: Desktop - 88mm x 56mm x 18mm / OEM - 76mm x 49mm x 14mm
• Power Supply: 4.3V..5.5V via USB or RS232
• Operating Temperature: -25°C to +80°C
• Read/Write Distance: Up to 100mm
• Compatible OS: Windows, Linux
• Weight: Approx. 20 g (without housing)
• MTBF: 500,000 hours
