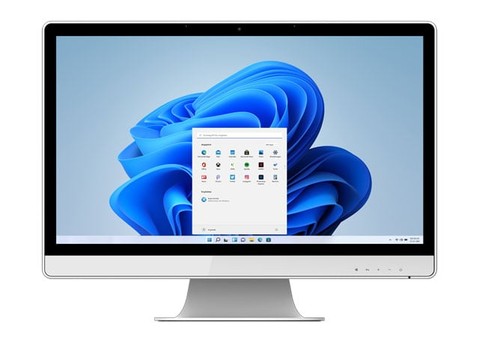

23.8" MEDICAL GRADE ALL-IN-ONE COMPUTER WITH 14TH INTEL GENERATION CORE I CPU, CAPACITIVE TOUCH LCD, INTEGRATED MICROPHONE AND SPEAKER.
504T-715A
Select model
The DT Research 504TF All-in-One PC is the perfect solution for point-of-care medical needs, combining functionality with an elegant design. Equipped with a powerful Intel® Core™ i processor, this medical-grade system features a vibrant 23.8" touchscreen, housed in a fanless and bacteria-resistant enclosure. Its space-saving design allows for easy placement in clinical environments, while integrated Wi-Fi and Bluetooth connectivity ensure seamless patient data management. This reliable system is also Energy Star 8.0 certified, making it environmentally friendly for healthcare facilities.
Key Features
- 23.8" high-resolution touchscreen
- Intel® Core™ i processor
- Elegant fanless design with antimicrobial enclosure
- IP65 sealed front and IPX1 back cover
- VESA mounting compatibility for versatile installation
- Built-in Wi-Fi and Bluetooth connectivity
Specifications
- Model: 504TF
- CPU: Intel® Core™ i5 14400T / Core™ i7 14700T
- RAM: 8GB to 64GB
- Storage: 256GB to 4TB Flash
- Operating System: Microsoft® Windows® 10/11 IoT Enterprise or Ubuntu
- Display: 23.8" Touchscreen, 1920 x 1080
- WLAN: Wi-Fi 802.11ax
- Weight: 16.5 lbs/7.5 kg
- Dimensions (H x W x D): 14.6 x 22.3 x 1.8 in
- Water Resistance: IP65 Sealed Front
- Energy Certification: Energy Star 8.0
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
