DT Research

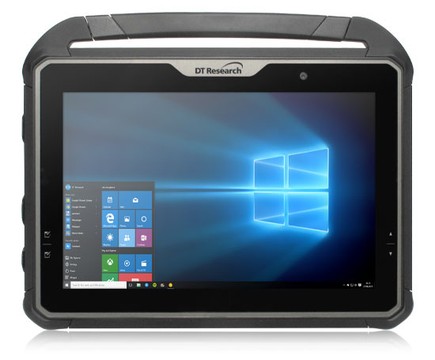

DTR, DT302 10.1" RUGGED TABLET WITH INTEL 13TH GENERATION I5 PROCESSOR, 512GB SSD, 16GB RAM, CAPACITIVE TOUCH LCD, WINDOWS 11 IOT ENTERPRISE, POWER SUPPLY, 3 YEAR STANDARD WARRANTY, TPM 2.0. - TAA COM

SKU:

3025-1-5A

Tablets, DT-Research DT302P, 10.1", Rugged Tablet, i5 Processor, 45W Battery, Power Supply and Handle, Windows 11, 16GB/512GB
Description
ico-plus ico-minus

The DT Research 302MD Rugged Medical Tablet is designed for healthcare professionals seeking a robust, efficient solution for patient data management. Its 10.1" LED-backlit touchscreen offers sunlight readability and features a high-performance Intel® Core™ processor, ensuring seamless operation in demanding environments. The tablet's hot-swappable battery guarantees uninterrupted functionality, while its antimicrobial enclosure maintains hygiene standards. With built-in Wi-Fi and Bluetooth connectivity, optional cameras, and various data capture modules, the 302MD simplifies the monitoring, recording, and retrieval of critical patient information.


Key Features
  • 10.1" LED-backlit touchscreen with 800 nits sunlight readability
  • Intel® Core™ processor for high performance
  • Hot-swappable battery allows for 24/7 operation
  • IP65-rated for water and dust resistance
  • MIL-STD-810G certified for shock and vibration protection

Specifications
  • Model: 302MD
  • CPU: Intel® Core™ i7/i5/U300
  • RAM: 8GB to 32GB
  • Storage: 64GB to 1TB Flash
  • Operating System: Microsoft® Windows® 10/11 IoT Enterprise
  • Display: 10.1" Touchscreen, 1920 x 1200 resolution
  • Weight: 3 lbs (1.32 kg)
  • Durability: IP65, MIL-STD-810G certified
  • Battery: Hot-swappable (up to 8000mAh)
  • Connectivity: Wi-Fi 802.11ax, Bluetooth 5.2

Main Features

  • Operation System: Windows

  • Rugged: Industrial

  • Connection: Bluetooth

Technical Specifications
ico-plus ico-minus
Processor
Processor Type Core i5
Processor Generation 13th Gen
Processor Model i5-1335U
Processor Core Deca-core (10 Core)
vPro Technology Yes
Memory
Standard Memory 16 GB
Storage
Flash Memory Capacity 512 GB
Display & Graphics
Screen Size 10.1"
Display Screen Type LCD
Screen Resolution 1920 x 1200
Brightness 800 Nit
Graphics Controller Model Iris Xe Graphics
Graphics Memory Accessibility Shared
Network & Communication
WWAN Supported No
Wireless Connectivity Technology Wi-Fi
Cellular Phone Capability No
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ax
Bluetooth Yes
Interfaces/Ports
Number of USB 3.0 Ports 1
USB Type-C Yes
USB Type-C Detail 1 x USB Type-C (Data transmission & Power Charging)
Charging Interface USB Type C
Operating System
Operating System Platform Windows
Battery Information
Battery Capacity 5400 mAh
Power Description
Maximum Power Supply Wattage 45 W
Power Source
  • Battery
  • AC/DC Adapter
Physical Characteristics
Rugged Yes
Form Factor Slate
Height 7.7"
Width 10.7"
Depth 0.8"
Weight (Approximate) 3 lb
Miscellaneous
Certifications & Standards
  • MIL-STD-810G
  • CE
  • FCC Class B
  • UL
Features
  • Hot-swappable Battery
  • Antimicrobial
  • Shock Resistant
  • Vibration Resistant
  • Sunlight Readable
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Documents
ico-plus ico-minus
Product document dt302p.pdf 3025-1-5A Product document 302md.pdf MOD-DT302RP
