Datalogic

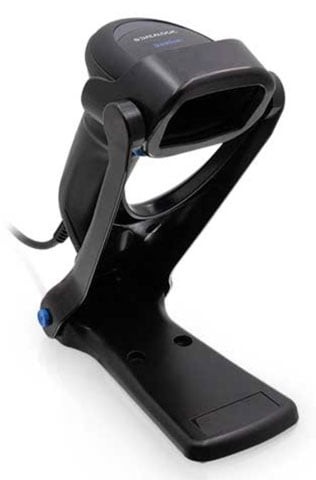

Datalogic QuickScan QW2520 Barcode Scanner 2D VGA Imager, USB, Handheld, IP52, Black

SKU:

QW2520-BKK1S

Datalogic QuickScan QW2500 Scanner — QuickScan 2D Retail - Robust Corded Imager (MPN: QW2520-BKK1S). Built for retail environments, this robust corded 2D imager provides durable daily performance and reliable decoding. Key attributes: - form_factor - interface - imager_type - ingress_protection_rating - supported_symbologies - scan_types - supported_barcode_types - supported_code_types - connectivity - color - scan_pattern - feedback_technology - aiming_read_feedback - pos - cordless
Description
ico-plus ico-minus

The DataLogic QuickScan QW2500 Barcode Scanner is an essential tool for any retail environment, offering superior performance at an affordable price. With its advanced imaging technology, this 2D imager excels in reading various barcode types, including hard-to-read and damaged ones, while also effortlessly scanning mobile devices. The unique blue dot aimer enhances precision, providing clear visual guidance during scans. Designed for effortless transitions between handheld and presentation modes, it ensures operator comfort and efficiency, making it ideal for fast-paced POS check-out settings.


Key Features
  • 2D Imaging Technology: Reads 1D and 2D barcodes, including QR codes, easily.
  • Green Spot Technology: Provides visual confirmation of successful scans.
  • Motion-Sensing Mode: Automatically switches between handheld and presentation modes.
  • Ergonomic Design: Soft red illumination reduces eye fatigue during extended use.
  • Multi-Interface Options: Compatible with RS-232, USB, and Keyboard Wedge.

Specifications
  • Decoding Capability: Supports 1D, 2D, postal codes, stacked codes.
  • Electrical: Operating current

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Case color: Black

  • IP Rating: IP52

  • Range: Short Range

  • Connectivity: Corded

  • Connection: Serial, USB

  • Scanner Capability: 2D, Imager, 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D :
  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D :
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot code

Postal Codes :

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes :

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking :

  • Digimarc Barcodes (QD2500, QM2500, QBT2500 only)
Image Sensor Type Imager
Scan Pattern Omni-directional
Scanning Distance 20.10"
Cable Type Included USB
Stand Included Yes
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 30 in/s
Image Formats
  • JPEG
  • BMP
  • TIFF
Maximum Ambient Light 110000 lux
Drop Specification Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 10 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 6.7 mil
Interfaces/Ports
Host Interface
  • USB
  • Serial
  • Keyboard Wedge
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Weight (Approximate) 5.11 oz
Miscellaneous
Ingress Protection (IP) Rating IP52
Application/Usage
  • Retail
  • Commercial Service
  • Hospitality
  • Ticketing
  • Government
  • Healthcare
  • Light/Clean Manufacturing
  • Industrial
Documents
ico-plus ico-minus
Product document qw2500.pdf QW2520-BKK1S Product document qw2500.pdf MOD-QUICKSCAN-QW2500
