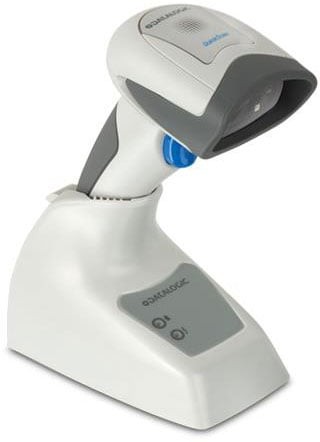

Datalogic QuickScan QBT2131 Barcode Scanner, Bluetooth, 1D, Linear Imager, Handheld, IP42, White

SKU:

QBT2131-WH

The Datalogic QBT2131-WH is a white, handheld 1D linear imager built around an extra-wide field of view and extra-long scan line that makes reading long barcodes at close distances practical in retail, point-of-sale, and inventory environments. It delivers 400 scan/s and autodiscriminates all standard 1D codes including GS1 DataBar linear, stacked, and composite symbologies, as well as EAN/JAN, UPC A/E, and GS1 DataBar Expanded Stacked variants. Bluetooth wireless connectivity allows data transmission through the included base station/charger or directly to any Bluetooth-compliant device, with the Bluetooth HID profile supporting iOS and Android tablets. Serial, Keyboard Wedge, and USB host interfaces cover wired integration needs. The scanner weighs 6.70 oz and measures 6.4 in tall, 3.6 in deep, and 1.6 in wide, with IP42 ingress protection for everyday commercial use. RoHS and China RoHS compliance is confirmed, and the unit carries a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic WideView Bluetooth Scanner (QuickScan QBT2131 series) is a cordless handheld 1D linear imager engineered for fast, reliable barcode capture in retail, POS, inventory and light warehouse environments. Combining an extra-wide scan line and broad scanning angle with a 400 scans/sec read rate, the device simplifies capture of longer and challenging 1D barcodes on paper or mobile screens. Bluetooth wireless connectivity (SPP) and multi-interface support (RS232, KBW, USB) enable flexible integration at checkout or on the floor, while internal memory, long battery life and IP42 protection deliver dependable, everyday operation for high-throughput, mobile workflows.

Key Features

  • WideView scanning: Extra-wide scan line and broad angle improve readability of long or wide 1D barcodes, reducing rescans and speeding throughput.
  • High-speed capture: Up to 400 scans per second for responsive performance in busy checkout and inventory tasks.
  • Cordless mobility: Bluetooth wireless operation (SPP) with up to 25 m range enables flexible deployment across POS and mobile workflows.
  • Versatile integration: Multi-interface support (RS232, KBW, USB) and wired/wireless connectivity options simplify connection to existing systems.
  • Business-ready endurance: Rechargeable 1,400 mAh Li‑Ion battery, internal storage for ~500 barcodes and up to 30,000 scans per charge support long shifts and offline capture.
  • Durable design: IP42 ingress protection and 1.5 m drop resistance suit everyday retail and commercial environments.

Specifications

  • Brand: Datalogic
  • Product Name: WideView Bluetooth Scanner (QuickScan QBT2131 series)
  • Model: QBT2131
  • Variant SKUs: QBT2131-BK-BTK2, QBT2131-BK, QBT2131-WH
  • Category: Handheld Barcode Scanners
  • Scanner Type / Technology: 1D linear imager / Imager-Scanner
  • Scan Engine: Linear imager
  • Scan Speed / Read Rate (max): 400 scans/sec
  • Scan Feedback: Green Spot
  • Bluetooth Profile / Version: SPP; Bluetooth 3.0+HS
  • Bluetooth Range / Wireless Range: 25 m
  • Interfaces: RS232, KBW, USB
  • Connectivity: Cordless (Bluetooth) and wired options
  • Internal Memory Capacity: 500 barcodes
  • Battery Capacity: 1,400 mAh
  • Battery Technology / Recharge: Lithium‑Ion (Li‑Ion); Micro‑USB and charging cradle
  • Maximum Scans per Charge: 30,000 scans
  • Ingress Protection Rating: IP42
  • Drop Resistance: 1.5 m
  • Weight: 190 g
  • Dimensions (W x D): 91 mm x 41 mm
  • Color Options: Black, White
  • Included Kit Contents: Scanner with optional charging and transmitter cradle (varies by SKU)
  • Compatible Operating Systems: Android, iOS
  • Maximum Warranty (where specified): 36 months

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Case color: White

  • IP Rating: IP42

  • Range: Long Range

  • Connectivity: Cordless

  • Connection: RS232, USB, Bluetooth

  • Scanner Capability: 1D, Imager

  • Included Battery: Yes

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Barcode Symbology Supported 1D / Linear Codes
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • UPC A/E Composites
Image Sensor Type Imager
Scan Rate 400 scan/s
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface
  • Serial
  • Keyboard Wedge
  • USB
Physical Characteristics
Form Factor Handheld
Product Color White
Height 6.4"
Width 1.6"
Depth 3.6"
Weight (Approximate) 6.70 oz
Miscellaneous
Package Contents
  • QuickScan I QBT2131 Handheld Barcode Scanner
  • Base Station/Charger
Additional Information

USB Cable separate
Environmentally Friendly Yes
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document qbt2131.pdf QBT2131-WH Product document qbt2131-2021.pdf MOD-QBT2131
