Datalogic

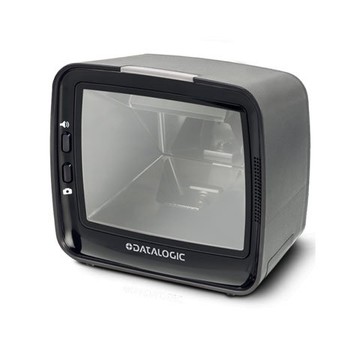

Datalogic Magellan 3450VSi Barcode Scanner Multi-interface, 1D/2D, Digimarc, Scanner Only

SKU:

M3450-010300

Datalogic Magellan 3400VSi Barcode Scanner (Variant: Datalogic Magellan 3450VSi 2D Imager Scanner). A high-performance 2D imaging scanner designed for retail and point-of-sale environments, offering fast and accurate barcode capture. Attributes: - scan_type - connectivity - sensor_type - supported_symbologies - Scanner Type - Scan Types - Interfaces - scan_types - scanner_type - form_factor - scan_capability - imaging_technology - maximum_read_range - mount_type - mounting_orientation - power_input_voltage - illumination_type - ingress_protection_ip_rating - cable_length - connector_type - USB Connector Type - Mounting Options - Symbologies Supported - power_source - working_distance - protection_class - interface
Description
ico-plus ico-minus

The DataLogic Magellan™ 3450VSi Barcode Scanner is engineered for high-volume point-of-sale environments, offering unmatched imaging performance. It not only replicates the speed and large field-of-view of laser scanners but also extends functionality to tackle even the most difficult barcodes efficiently. This versatile scanner supports high-speed sweep and presentation scanning techniques, ensuring ergonomic ease and maximizing productivity, even with truncated or poorly printed codes. Enhance your retail experience with the optional Customer Service Scanner, enabling seamless mobile commerce engagement for quick transactions and improved customer satisfaction.


Key Features
  • Advanced digital imaging for superior performance
  • Seamlessly reads all barcodes on various media including mobile screens
  • Ergonomic design with subtle illumination for user comfort
  • Remote management capabilities for efficient operation
  • Multiple interfaces including USB and RS-232 for flexible connectivity

Specifications
  • Decoding Capability: 1D/Linear and 2D Codes
  • Power Requirements: AC Input: 100-240 VAC, 50-60 Hz
  • Operating Temperature: 10 to 40 °C / 50 to 104 °F
  • Dimensions: 13.7 x 15.2 x 9.4 cm (5.4 x 6.0 x 3.7 in)
  • Weight: 0.6 kg (1.3 lb)
  • Warranty: 3-Year Factory Warranty

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Scanner Capability: Digimarc, Imager, 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
  • Aztec Code
  • Data Matrix (ECC200 only)
  • MaxiCode
  • QR Code
Stacked Codes:
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Digital Watermarks:
  • Optional support for Digimarc® Barcode/GS1 DW Code
Image Sensor Type Imager
Interfaces/Ports
Host Interface Multi-interface
Physical Characteristics
Form Factor Fixed Mount
Weight (Approximate) 1.32 lb
Miscellaneous
Environmentally Friendly Yes
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 3400vsi.pdf M3450-010300 Product document magellan-3450vsi-2021.pdf MOD-MAGELLAN-3400V Product document magellan-3410vsi.pdf MOD-MAGELLAN-3400V
