Datalogic

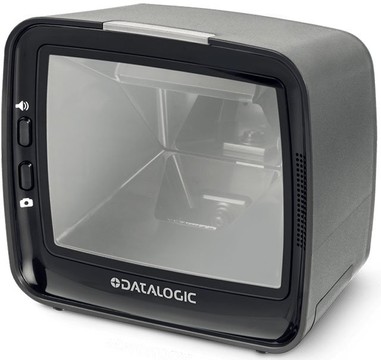

Datalogic Magellan 3410VSi Barcode Scanner 1D/2D, Omnidirectional, Countertop, USB, RS-232, Extra-large Reading Area

SKU:

M3410-010210-01104

The Datalogic M3410-010210-01104 ships with a 15-inch RS-232 interface cable, counter/wall mount, and US/Canada power supply included, and draws a maximum of 3.30 W when powered from a single USB connection. Its 1280 x 800 area-imager reads omnidirectional 1D and 2D codes — Aztec, Data Matrix, QR, PDF417, Micro PDF417, GS1 DataBar stacked variants, and optionally Digimarc Barcodes — across a scanning distance of 8 inches, tolerating skew to 75 degrees, pitch to 65 degrees, and a full 360-degree roll. Minimum print contrast is 25%, DataMatrix elements resolve from 10 mil to 20 mil, and PDF417 from 6.6 mil to 10 mil, with maximum ambient light tolerance of 86100 lux. Air ESD protection reaches 25kV, and IP52 ingress rating adds dust and water resistance for retail and grocery countertop use. Operating range spans 50°F (10°C) to 104°F (40°C), storage down to -40°F (-40°C). Good-read feedback combines an audible beep, notification LED, and Green Spot confirmation. At 1.32 lb in a black and silver desktop chassis, it carries RoHS and China RoHS compliance and a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Magellan 3450 is a presentation-grade barcode imager engineered for high-throughput point-of-sale and retail environments. Combining the Magellan 3400VSi series imaging platform with versatile mounting and multi-interface connectivity, this scanner handles 1D and 2D barcodes—including Digimarc, QR, DataMatrix and PDF417—using sweep, presentation and omnidirectional capture modes. Designed for hands-free counter operation or compact wall/omni-mount installations, the 3450 streamlines checkout workflows with reliable image-based decoding, integrated illumination for low-light conditions, and clear good-read confirmation. The package options include USB and serial interfaces, long cable reach and the power options needed for professional POS deployments.

Key Features

  • Multi-symbology decoding: Supports 1D and 2D codes—including Digimarc, QR, DataMatrix and PDF417—for broad retail compatibility.
  • Flexible connectivity: Multiple interfaces available (RS-232, USB, IBM / USB keyboard wedge) for straightforward POS integration.
  • Presentation and omnidirectional scanning: Sweep, presentation and omnidirectional capture modes enable fast hands-free checkout and rapid barcode acquisition.
  • Installation versatility: Counter, desktop, wall and omni-mount options allow deployment in diverse counter and fixture layouts.
  • Complete deployment kit: Models ship with required cables, power supply and mounting accessories (wall mount kit available) to simplify installation.

Specifications

  • Product Name: Magellan 3450
  • Brand: Datalogic
  • Product Series: Magellan 3400VSi
  • Device Type / Product Type: Presentation scanner / Presentation scanner
  • Imaging Technology / Scan Technology: 2D imager (Datalogic Illumix where specified)
  • Supported Barcode Symbologies / Code Types Supported: 1D, 2D (including QR, DataMatrix, PDF417, Digimarc)
  • Interfaces / Connectivity: RS-232, USB (including USB keyboard wedge), IBM
  • Scan Modes / Scan Types: Sweep, presentation, omnidirectional
  • Mounting Options / Mount Options: Counter mount, wall mount, omni-mount, desktop
  • Included Items: USB/IBM cables, power supply unit and power cable (region dependent), wall mount kit (where provided)
  • Cable Length: 4.5 m (15 ft)
  • Power Supply / Powering: USB-powered or supplied power brick and cord (EU / US depending on model)
  • Color: Dark grey (where specified)
  • ESD Protection: 25 kV (where specified)
  • Good-Read Confirmation: Audible beep, LEDs, Green Spot (where specified)

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Connection: RS232, USB

  • Scanner Capability: 2D, QR, 1D, Digimarc, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D :

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D :

  • Aztec Code
  • Data Matrix
  • QR Code

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • Micro PDF417
  • PDF417

Digital Watermarks:

  • Optional support for Digimarc Barcodes / GS1 DW Code
Light Source LED
Image Sensor Type Imager
Scan Pattern Area
Scanning Distance 8"
Features
  • Beep
  • Notification LED
  • Ergonomic Design
  • Sensormatic EAS
  • Checkpoint EAS
  • Diagnostic Reporting
Cable Type Included Serial
Reading Angle (Skew) 75°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Image Formats
  • JPEG
  • BMP
Maximum Ambient Light 86100 lux
Minimum Print Contrast 25%
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 20 mil
Minimum Element Resolution (PDF417) 6.6 mil
Maximum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Air Electrostatic Discharge (+/-) 25kV
Interfaces/Ports
Host Interface Serial
Power Description
Maximum Operating Power Consumption 3.30 W
Power Supply Included Yes
Environmental Conditions
Operating Temperature 50°F (10°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Desktop
Color Family Dual Color
Product Color
  • Black
  • Silver
Durability
  • Water Resistant
  • Dust Resistant
Weight (Approximate) 1.32 lb
Miscellaneous
Package Contents
  • 1 x Magellan 3410VSi Barcode Scanner
  • 1 x 15in RS-232 Interface Cable
  • 1 x Counter/Wall Mount
  • 1 x US/Canada Power Supply
Ingress Protection (IP) Rating IP52
Application/Usage
  • Industrial
  • Retail
Environmentally Friendly Yes
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document magellan-3410vsi.pdf M3410-010210-01104  (PDF)
