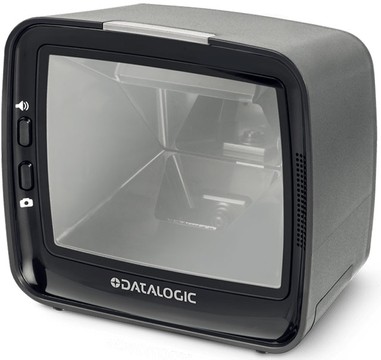

Datalogic Magellan 3410VSi Presentation Barcode Scanner 2D Imager, RS-232, Black/Silver, No Mount, Brazil Power Supply

SKU:

M3410-010200-0E104

Configured with a 15-foot RS-232 interface cable and Brazil power supply, the Datalogic M3410-010200-0E104 is a desktop presentation barcode scanner rated IP52 for dust and water resistance in retail and industrial counter environments. Its 1280 x 800 area-imager reads both 1D and 2D symbologies -- including Aztec Code, Data Matrix, QR Code, PDF417, Micro PDF417, and the full GS1 DataBar family -- at scanning distances up to 8 inches and tolerates skew up to 75 degrees, pitch up to 65 degrees, and full 360-degree roll. Minimum print contrast is 25%, DataMatrix elements resolve from 10 mil to 20 mil, and the imager operates under ambient light to 86100 lux. Maximum operating power draw is 3.30 W, and the operating temperature range spans 50°F (10°C) to 104°F (40°C). The 1.32 lb unit also supports USB and Powered USB interfaces alongside serial, captures images in JPEG and BMP formats, and carries RoHS and China RoHS compliance with a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Datalogic Magellan 3450 is a presentation-grade barcode imager engineered for high-throughput point-of-sale and retail environments. Combining the Magellan 3400VSi series imaging platform with versatile mounting and multi-interface connectivity, this scanner handles 1D and 2D barcodes—including Digimarc, QR, DataMatrix and PDF417—using sweep, presentation and omnidirectional capture modes. Designed for hands-free counter operation or compact wall/omni-mount installations, the 3450 streamlines checkout workflows with reliable image-based decoding, integrated illumination for low-light conditions, and clear good-read confirmation. The package options include USB and serial interfaces, long cable reach and the power options needed for professional POS deployments.

Key Features

  • Multi-symbology decoding: Supports 1D and 2D codes—including Digimarc, QR, DataMatrix and PDF417—for broad retail compatibility.
  • Flexible connectivity: Multiple interfaces available (RS-232, USB, IBM / USB keyboard wedge) for straightforward POS integration.
  • Presentation and omnidirectional scanning: Sweep, presentation and omnidirectional capture modes enable fast hands-free checkout and rapid barcode acquisition.
  • Installation versatility: Counter, desktop, wall and omni-mount options allow deployment in diverse counter and fixture layouts.
  • Complete deployment kit: Models ship with required cables, power supply and mounting accessories (wall mount kit available) to simplify installation.

Specifications

  • Product Name: Magellan 3450
  • Brand: Datalogic
  • Product Series: Magellan 3400VSi
  • Device Type / Product Type: Presentation scanner / Presentation scanner
  • Imaging Technology / Scan Technology: 2D imager (Datalogic Illumix where specified)
  • Supported Barcode Symbologies / Code Types Supported: 1D, 2D (including QR, DataMatrix, PDF417, Digimarc)
  • Interfaces / Connectivity: RS-232, USB (including USB keyboard wedge), IBM
  • Scan Modes / Scan Types: Sweep, presentation, omnidirectional
  • Mounting Options / Mount Options: Counter mount, wall mount, omni-mount, desktop
  • Included Items: USB/IBM cables, power supply unit and power cable (region dependent), wall mount kit (where provided)
  • Cable Length: 4.5 m (15 ft)
  • Power Supply / Powering: USB-powered or supplied power brick and cord (EU / US depending on model)
  • Color: Dark grey (where specified)
  • ESD Protection: 25 kV (where specified)
  • Good-Read Confirmation: Audible beep, LEDs, Green Spot (where specified)

Main Features

  • Rugged: Commercial

  • Connection: RS232

  • Scanner Capability: 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D :

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D :

  • Aztec Code
  • Data Matrix
  • QR Code

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • Micro PDF417
  • PDF417

Digital Watermarks:

  • Optional support for Digimarc Barcodes / GS1 DW Code
Light Source LED
Image Sensor Type Imager
Scan Pattern Area
Scanning Distance 8"
Features
  • Beep
  • Notification LED
  • Ergonomic Design
  • Sensormatic EAS
  • Checkpoint EAS
  • Diagnostic Reporting
Cable Type Included Serial
Reading Angle (Skew) 75°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Image Formats
  • JPEG
  • BMP
Maximum Ambient Light 86100 lux
Minimum Print Contrast 25%
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 20 mil
Minimum Element Resolution (PDF417) 6.6 mil
Maximum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Air Electrostatic Discharge (+/-) 25kV
Interfaces/Ports
Host Interface
  • USB
  • Powered USB
  • Serial
Power Description
Maximum Operating Power Consumption 3.30 W
Power Supply Included Yes
Environmental Conditions
Operating Temperature 50°F (10°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Desktop
Color Family Dual Color
Product Color
  • Black
  • Silver
Durability
  • Water Resistant
  • Dust Resistant
Weight (Approximate) 1.32 lb
Miscellaneous
Package Contents
  • 1 x Magellan 3410VSi Barcode Scanner
  • 1 x Brazil Power Supply
  • 1 x 15' RS232 Interface Cable
Ingress Protection (IP) Rating IP52
Application/Usage
  • Industrial
  • Retail
Environmentally Friendly Yes
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document magellan-3410vsi.pdf M3410-010200-0E104  (PDF)
