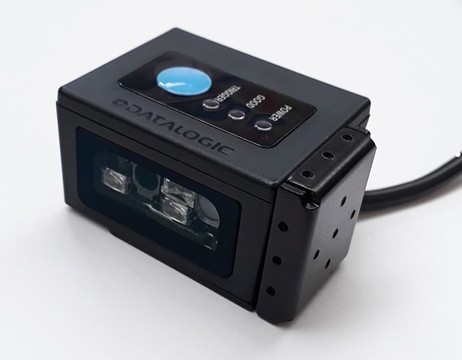

DSM0400, 2D, MP-WA, USB, 50cm Cable

SKU:

DSM0422-WA

DSMO4XX Fixed Mounted 2D imager barcode scanner. Imager Sensor: MP: 1280 x 960 pixels. Field of view: 52H x 40V . USB interface.
Description
ico-plus ico-minus
The Datalogic DSM04XX Fixed Barcode Scanner is your go-to solution for high-performance fixed position scanning in a compact design. Available in both WVGA and Megapixel models, it is tailor-made for applications where space is limited. With its rugged construction, featuring an IP54 rating for water and particulate sealing, this scanner offers reliable performance in various environments. Its simple integration options make it a perfect fit for system designers, allowing seamless connectivity via USB, RS-232, or multi-interface models.

Key Features
  • Compact Design: Ideal for embedded applications.
  • Rugged Enclosure: Made with high-impact resin resistant to solvents.
  • Multi-Interface Support: Easy 'plug-and-play' installation.
  • Excellent Motion Tolerance: Capable of image capture and document scanning.
  • Datalogic 'Green Spot' Technology: Provides visual feedback for successful scans.

Specifications
  • Model Options:
    • DSM0421: 2D, WVGA, USB
    • DSM0400: 2D, MP-DL, USB/RS-232/RJ-45
  • Reading Performance:
    • Field of View: Up to 52°H x 40°V
    • Maximum Resolution: 2 mils
    • Reading Range: Up to 60 cm for 20 mils Code 39
  • Electrical:
    • Input Voltage: 5 VDC ± 5%
    • Operating Current: Approx. 214 mA
  • Environmental:
    • Temperature: Operating -20 to 50°C
    • Humidity: 5-95%, non-condensing
    • Sealing Rating: IP54

Main Features

  • Rugged: Industrial

  • Connection: USB

  • Scanner Capability: 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

All standard 1D codes including:

  • UPC/EAN/JAN
  • P2 / P5 add-ons
  • Code 39
  • Italian Pharmacode 39
  • Code 128
  • C128 ISBT
  • I 2 of 5
  • Standard 2 of 5
  • Interleaved 2 of 5
  • Industrial 2of 5
  • Datalogic 2of5
  • IATA; Code 11
  • Codabar
  • ABC Codabar
  • EAN 128
  • Code 93
  • MSI/Plessey
  • RSS-14
  • BC412
  • Databar Limited
  • Databar Omnidirectional
  • Databar Expanded
  • IATA
  • Trioptic
  • Matrix 2/5
  • Telepen
  • Composite codes CC-A
  • CC-B
  • CC-C

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger/Sense
Scanning Distance 23.60"
Features
  • Beep
  • Notification LED
  • Grayscale Image Capture
Field of View (Horizontal) 52°
Field of View (Vertical) 40°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 180°
Image Formats
  • BMP
  • JPEG
Maximum Ambient Light 100000 lux
Drop Specification
  • Withstands repeated drops from 3 ft onto a concrete surface.
Minimum Print Contrast 25%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 15 mil
Image Sensor Resolution 1280 x 960
Illumination Type LED
Illumination Color White
Interfaces/Ports
Host Interface USB
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Fixed Mount
Rugged Yes
Color Family Black
Product Color Black
Product Material Resin
Durability
  • Water Resistant
  • Dust Resistant
  • Impact Resistant
  • Drop Resistant
Weight (Approximate) 4.62 oz
Miscellaneous
Ingress Protection (IP) Rating IP54
Application/Usage
  • Retail
  • Self-checkout
  • Ticketing
  • Manufacturing
  • Healthcare
  • Transportation
  • Logistics
  • Kiosk
  • Laboratory
Platform Supported
  • Android
  • Linux
  • PC
  • Windows
  • Smartphone
