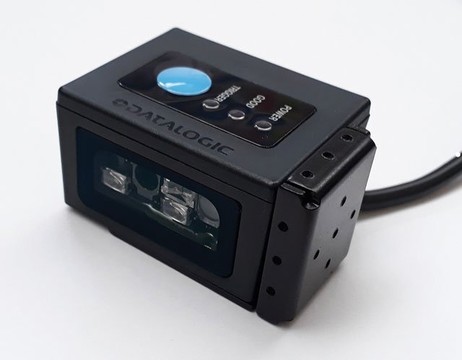

Datalogic DSM0400, 1280x960, Driver License, RS232, Cable

The Datalogic DSM04XX Fixed Barcode Scanner is your go-to solution for high-performance fixed position scanning in a compact design. Available in both WVGA and Megapixel models, it is tailor-made for applications where space is limited. With its rugged construction, featuring an IP54 rating for water and particulate sealing, this scanner offers reliable performance in various environments. Its simple integration options make it a perfect fit for system designers, allowing seamless connectivity via USB, RS-232, or multi-interface models.

Key Features

• Compact Design: Ideal for embedded applications.
• Rugged Enclosure: Made with high-impact resin resistant to solvents.
• Multi-Interface Support: Easy 'plug-and-play' installation.
• Excellent Motion Tolerance: Capable of image capture and document scanning.
• Datalogic 'Green Spot' Technology: Provides visual feedback for successful scans.

Specifications

• Model Options:
  • DSM0421: 2D, WVGA, USB
  • DSM0400: 2D, MP-DL, USB/RS-232/RJ-45
• Reading Performance:
  • Field of View: Up to 52°H x 40°V
  • Maximum Resolution: 2 mils
  • Reading Range: Up to 60 cm for 20 mils Code 39
• Electrical:
  • Input Voltage: 5 VDC ± 5%
  • Operating Current: Approx. 214 mA
• Environmental:
  • Temperature: Operating -20 to 50°C
  • Humidity: 5-95%, non-condensing
  • Sealing Rating: IP54
