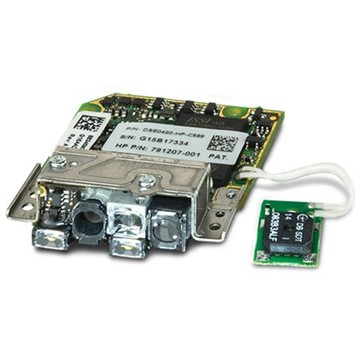

Datalogic DSE0420-D 2D Scan Engine, Demo Kit

The Datalogic DSE0420 2D Decoded Scan Module is a high-performance barcode verifier that excels in fast and accurate decoding of 1D and 2D barcodes. With a compact design, it integrates seamlessly into space-constrained applications such as kiosks, medical devices, and POS systems. Equipped with a high-speed sensor capturing images at 60 frames per second, it ensures excellent motion tolerance and depth-of-field reading capabilities. Optional features like Datalogic's 'Green Spot' technology provide visual feedback, making it user-friendly for inexperienced operators.
Key features:

• High-speed imaging at 60 frames per second for superior performance
• Compact size ideal for limited spaces
• Excellent reading of poorly printed barcodes and digital displays
• Low power consumption for extended battery life
• 'Green Spot' technology for visual confirmation (optional)

Specifications:

• Decoding Capability: Autodiscriminates all standard 1D and 2D codes
• Reading Performance:
  • Resolution: 752 x 480 pixels (WVGA)
  • Field of View: 40° H x 26° V
  • Reading Angle: Pitch +/- 60°, Roll +/- 180°, Skew +/- 60°
• Environmental:
  • Operating Temperature: -10 to 50 °C
  • Humidity: 5-95% non-condensing
• Dimensions: 13.65 H x 40.1 W x 47.86 D mm
• Weight: 20.0 g
• Warranty: 18-Month Factory Warranty
