Code

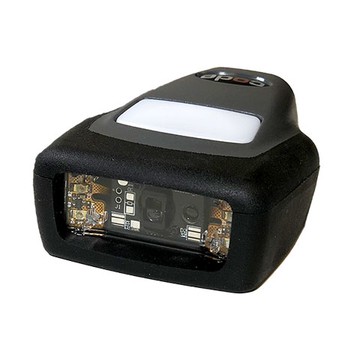

Code CR1100 Barcode Reader 1D & 2D, Dual-field optics, USB 2.0, RS232, 6 ft cable, Disinfectant-ready

SKU:

CR1100-K201-C500

Scan wide 1D and dense 2D barcodes with the Code CR1100 2D USB Reader, a compact cabled handheld scanner built around patented dual-field optics for high-speed, omnidirectional decoding. Designed for handheld or in-stand use, it also reads reliably from cellphone screens and reflective surfaces, while USB 2.0 and RS232 connectivity support flexible integration.
Description
ico-plus ico-minus

The Compact Plus (Code CR1000 Barcode Scanner) is a compact, corded 2D area-imager designed for high-use commercial and clinical environments where reliable, high-speed barcode capture is essential. Engineered for retail, point-of-sale, healthcare, kiosks, manufacturing and OEM installations, this scanner combines patented dual-field optics and omnidirectional decoding to read both wide 1D labels and dense 2D codes, including barcodes on mobile device screens and reflective surfaces. Its disinfectant-ready housing, flexible handheld or in-stand presentation modes, and broad interface support (USB and serial/RS232) help streamline integration and maintain hygiene, durability and throughput in demanding B2B workflows.

Key Features

  • Dual-field optics: Patented wide-field and high-density optical design enables fast, reliable decoding of both large 1D barcodes and small, dense 2D symbols.
  • Omnidirectional capture: High-speed omnidirectional decoding reduces alignment effort and increases throughput across mixed barcode workflows.
  • Healthcare-ready housing: Disinfectant-ready enclosure supports use in clinical and other hygiene-sensitive environments without sacrificing durability.
  • Flexible operation: Supports handheld, hands-free (in-stand/presentation) and on-counter use with manual, automatic, continuous scan and motion-detection triggering modes to fit varied workflows.
  • Integration and connectivity: Broad interface support including USB 2.0 and RS232, programmable data editing and JavaScript-based parsing streamline system integration and data handling.

Specifications

  • Brand: Code
  • Product Reference: Code CR1000 Barcode Scanner
  • Product Name: Compact Plus
  • Scanner Type: 2D Area Imager / Imager
  • Scanner Capability: 2D (1D and 2D symbologies)
  • Optics: Patented dual-field (high-density & wide-field) omnidirectional
  • Image Sensor Type: CMOS
  • Disinfectant-Ready Housing: Yes
  • Connectivity: Corded / Cabled
  • Interfaces: USB 2.0 (HID/Keyboard/Virtual COM), Serial / RS232
  • Scan Pattern: Area
  • Supported Symbologies: 1D, 2D
  • Triggering Modes: Manual, Automatic, Continuous scan, Motion detection
  • Glare Reduction Technology: Yes (patented glare-reduction for reflective surfaces)
  • Included Cable Types / Lengths (varies by configuration): Straight USB (6 ft), Coiled USB (8 ft); RS-232 options available
  • Power Source / Requirements: USB; 5 VDC; typical < 300 mA; idle < 1 mA
  • Memory: 1 MB Flash; 16 MB RAM
  • Mounting / Integration Features: Threaded brass inserts for fixed-mount and OEM installations

Main Features

  • Rugged: Commercial

  • Connection: RS232, USB

  • Scanner Capability: 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Image Sensor Type CMOS
Cable Type Included USB
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Color Family Gray
Product Color Dark Gray
Height 1.2"
Width 2.1"
Length 2.7"
Weight (Approximate) 1.94 oz
Documents
ico-plus ico-minus
Product document cr1100.pdf CR1100-K201-C500 Product document cr1100.pdf MOD-CODE-CR1000-SCANNERS
FAQs
ico-plus ico-minus
What barcode types can the Code CR1000 read, and can it scan barcodes displayed on mobile device screens?
The Code CR1000 reads both 1D and 2D symbologies using a CMOS area imager with patented dual-field optics, and its glare-reduction technology enables reliable scanning from mobile device screens and other reflective surfaces.
What interfaces does the Code CR1000 support for connecting to a host system?
The scanner supports USB 2.0 (HID, Keyboard, and Virtual COM modes) and Serial RS232, giving integrators flexibility for both modern USB-based and legacy serial installations.
What triggering and operation modes does the Code CR1000 offer?
It supports four triggering modes — manual, automatic, continuous scan, and motion detection — and can be used handheld, hands-free in a stand for presentation scanning, or placed on a counter, accommodating a range of workflow setups.
Is the Code CR1000 suitable for healthcare or other hygiene-sensitive environments?
Yes, the Code CR1000 features a disinfectant-ready housing specifically designed to withstand cleaning protocols required in clinical and other hygiene-sensitive settings without compromising durability.
What are the power requirements for the Code CR1000, and does it need an external power supply?
The scanner is USB-powered at 5 VDC, drawing typically less than 300 mA during operation and less than 1 mA at idle, so no external power supply is required when connected via USB.
Does the Code CR1000 support fixed-mount or OEM installations?
Yes, the scanner includes threaded brass inserts in its housing to facilitate secure fixed-mount and OEM integration, and its JavaScript-based parsing and programmable data editing further support custom system deployments.
