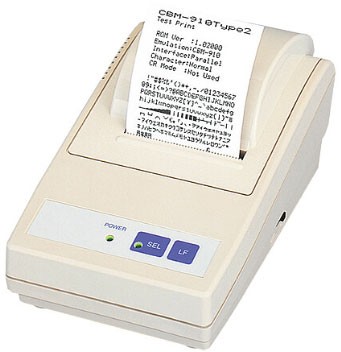

Citizen 910II-24PF120-B Receipt Printers
910II-24PF120-B
Select model
Key Features:
- Compact Design: Palm-sized and lightweight for easy portability.
- Dual Connectivity: Supports RS-232C and Centronics interfaces.
- High-Speed Printing: Outputs at approximately 5 lines/sec.
- Low Power Consumption: Ideal for energy-conscious users.
- Applications: Versatile functionality for receipts, tickets, and reports.
- Durable Ribbon: Service life of approximately 250,000 characters.
Specifications:
- Printing Method: Dot Matrix
- Print Speed: Approx. 5 lines/sec
- Input Buffer: 2K bytes
- Dimensions: 106 (W) x 180 (D) x 88 (H) mm
- Weight: Approx. 470g
- Power Supply: DC 7V ±1V (Exclusive adapter)
- Temperature Range: Operation: 0-40°C; Storage: -20-60°C
- Humidity: Operation: 35-85%RH; Storage: 10-90%RH
- Safety Standards: CE Marking/TUV GS/FCC class B
Main Features
-
Equipment Format: Desktop
-
POS: Yes
-
Printing Technology: Dot Matrix
| Technical Information | |
|---|---|
| Recommended Use | Receipt Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 2.5 lps |
| Number of Columns | 24 |
| Maximum Print Width | 2.28" |
| Application/Usage | Desktop |
| Print Technology | Impact Dot Matrix |
| Memory | |
|---|---|
| Standard Memory | 2 KB |
| Interfaces/Ports | |
|---|---|
| Parallel Port | Yes |
| Media Types & Handling | |
|---|---|
| Media Type | Receipt |
| Media Sensor | Paper Low Sensor |
| Media Thickness | 5.12 mil |
| Maximum Roll Diameter | 3.15" |
| Maximum Label Width | 2.26" |
| Maximum Label Length | 39.4 mil |
| Power Description | |
|---|---|
| Power Source | Power Adapter |
| Input Voltage |
|
| Physical Characteristics | |
|---|---|
| Height | 3.5" |
| Width | 4.2" |
| Depth | 7.1" |
| Weight (Approximate) | 1.04 lb |
| Miscellaneous | |
|---|---|
| Platform Supported | PC |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
cbm-910ii.pdf 910II-24PF120-B
cbm-910ii.pdf MOD-CBM910II/920
