Bogen

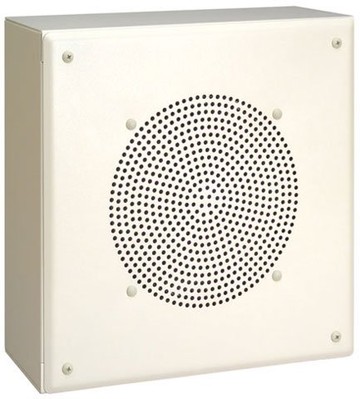

Bogen MB8TSQ Computer Speakers

SKU:

MB8TSQ

Bogen MB8TSQ Speaker - 4 W RMS - 96 dB Sensitivity
Description
ico-plus ico-minus

Bogen's MB8 Series Public Address Equipment delivers powerful and clear audio with its robust 8" cone speaker and multi-tap transformer. Designed for both ceiling and wall mounting, the MB8TSQ offers versatile installation options, while the MB8TSL features a downward-angled face for optimized sound projection. Encased in a durable all-steel framework, these speakers ensure lasting performance and intelligibility in various settings, making them ideal for commercial applications.


Key Features
  • Rugged all-steel enclosure for durability
  • Multiple power taps (4, 2, 1, 1/2, 1/4, 1/8 Watts)
  • Excellent intelligibility with a full range 8" cone speaker
  • Includes mounting hardware (toggle bolts, wood screws, wire crimps)
  • Compatible with 25V or 70V amplifier systems

Specifications
  • Cone Diameter: 8" (paper)
  • Magnet Weight: 6 oz.
  • Power Rating (max.): 4 Watts
  • Transformer Power Taps: 4, 2, 1, 1/2, 1/4, 1/8 Watts
  • Constant Voltage Amp Type: 70V or 25V
  • Frequency Response: 110 Hz - 15 kHz
  • Sensitivity (1-watt @ 1 meter on axis): 96 dBspl
  • Dispersion (min.): 100°
  • Product Weight: 9 lb.
  • Enclosure Size:
    • MB8TSQ: 11-5/8" W x 11-5/8" H x 4-1/4" D
    • MB8TSL: Top 11-5/8" W x 11-3/8" H x 5-3/8" D; Bottom 11-5/8" W x 11-3/8" H x 3-1/8" D
  • Construction: Painted steel enclosure
Technical Specifications
ico-plus ico-minus
Technical Information
RMS Output Power 4 W
Minimum Frequency Response 110 Hz
Maximum Frequency Response 15 kHz
Sensitivity 96 dB
Physical Characteristics
Product Material Steel
Form Factor
  • Ceiling Mountable
  • Wall Mountable
Weight (Approximate) 9 lb
Miscellaneous
Package Contents
  • MB8TSQ Speaker
  • Toggle Bolts
  • Wood Screws
  • Wire Crimps
Warranty
Limited Warranty 2 Year
Documents
ico-plus ico-minus
Product document mb8series.pdf MB8TSQ Product document mb8series.pdf MOD-BOGEN-MB8-SERIES
