Bixolon

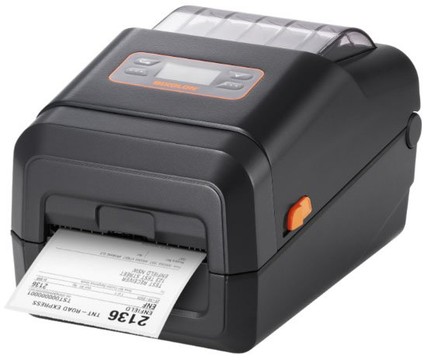

BIXOLON XL5-40CT Desktop Label Printer, Linerless, Direct Thermal, 203 dpi, USB, Auto Cutter

SKU:

XL5-40CTOG

Print linerless labels with the BIXOLON XL5-40CT, a direct thermal desktop label printer that combines 203 dpi resolution with fast 152 mm/s output for reliable, cost-effective labeling. Designed for manufacturing, retail, hospitality, and healthcare, it supports printing and cutting of variable-length labels, features USB and USB Host connectivity, and uses a guillotine auto cutter with label taken and gap sensors for smooth, efficient operation.
Description
ico-plus ico-minus

The Bixolon XL5-40CT label printer is a professional, desktop direct-thermal solution engineered for high-throughput labeling in retail, logistics, warehousing and light manufacturing. Designed to operate with liner-free label rolls and standard thermal paper, this family of models delivers fast, reliable output with options for 203 dpi or 300 dpi resolution and built-in cutting. Integrated sensors and flexible connectivity enable straightforward integration into POS and enterprise systems, while on-board memory and a compact commercial-grade housing support dependable day-to-day operation. By combining linerless capability, robust media handling and multiple interface choices, the XL5-40CT series reduces consumable waste and simplifies label workflows for busy workstations and production counters.

Key Features

  • Liner-free printing: Supports linerless label rolls to reduce waste and simplify media handling for high-volume applications.
  • High-resolution options: Available in 203 dpi and 300 dpi variants to deliver clear barcodes and detailed label graphics as required.
  • Integrated cutter: Built-in full-width or guillotine cutting options provide clean label separation and streamline workstation output.
  • Advanced sensing: Label Taken and Gap sensors ensure accurate media detection and reduce misfeeds and wasted prints.
  • Broad connectivity: USB 2.0, USB Host, RS232, Ethernet, Wi‑Fi (802.11a/b/g/n) and Bluetooth options allow flexible deployment across networks and POS systems.
  • Commercial desktop design: Compact, black housing with 64 MB RAM and 128 MB flash memory for reliable continuous operation in professional environments.

Specifications

  • Brand: Bixolon
  • Product Reference: Label Printer Bixolon XL5-40CT
  • Product Type: Desktop printer
  • Printing Technology: Direct thermal
  • Resolution: 203 dpi / 300 dpi
  • Maximum Print Speed: Up to 152 mm/s
  • Maximum Media Width: 114 mm
  • Maximum Print Width: 105 mm
  • Maximum Roll Diameter: 127 mm
  • Media Type: Liner-free label roll, thermal paper
  • Connectivity / Interfaces: USB 2.0, USB Host, RS232, Ethernet, Wi‑Fi (802.11a/b/g/n), Bluetooth
  • Sensors: Label Taken Sensor, Gap Sensor
  • Cutter: Yes (full-width / guillotine options depending on variant)
  • RAM: 64 MB
  • Flash Memory: 128 MB
  • Printer Emulation: SLCS
  • Color: Black
  • Weight: 4.53 kg

Main Features

  • Rugged: Commercial

  • Print Speed: 6 in/s

  • Equipment Format: Desktop

  • DPI: 203 dpi

  • Case color: Black

  • Connection: Ethernet, USB, RS232, WLAN/Wi-Fi

  • Optional Upgrades: Cutter

  • Max Width: 4 mm

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 6 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 39.37"
Maximum Print Width 4.25"
Barcode Symbology Supported
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar (RSS-14)
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • AZTEC
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF417
  • Micro PDF-417
  • QR Code
  • TLC 39
Application/Usage Desktop
Character Sets Unicode
Optional Connectivity
  • Wireless LAN
  • Bluetooth
  • Serial (RS-232)
  • Ethernet
Print Technology Direct Thermal
Memory
Standard Memory 64 MB
Interfaces/Ports
USB Host Yes
USB Yes
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Liner-free Label
  • Label
  • Continuous Label
  • Black Mark
Media Sensor
  • Gap Sensor
  • Black Mark Sensor
  • Head Open Sensor
Media Thickness 7.87 mil
Maximum Roll Diameter 5"
Maximum Label Width 4.49"
Fonts & Emulation
Language Emulation
  • SLCS
  • BPL-Z
  • ZPL II
  • BPL-E
  • EPL
Software
Operating System Supported Windows Driver (Europlus / Seagull), Linux / Mac CUPS Driver, Virtual COM USB / Ethernet Driver, Utility Program, OPOS / JPOS Driver, Bartender Ultralite for BIXOLON, Label Artist-II™
Power Description
Power Source AC Supply
Environmental Conditions
Operating Temperature 32°F (0°C) - 104°F (40°C)
Operating Relative Humidity 10% - 80%
Storage Temperature -4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 6.8"
Width 7.3"
Depth 11.3"
Weight (Approximate) 6.17 lb
Miscellaneous
Platform Supported
  • PC
  • Mac
  • iOS
  • Android
  • SPARC
Energy Star Yes
Documents
ico-plus ico-minus
Product document zl5-40.pdf XL5-40CTOG Product document zl5-40.pdf MOD-XL5-40CT
