Bixolon

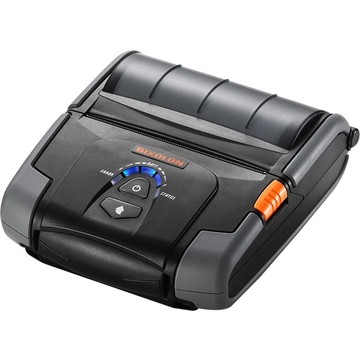

Bixolon SPP-R410, 203dpi, Bluetooth (iOS), USB, Serial

SKU:

SPP-R410IK5

Mobile printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 112 mm, print width (max.): 104 mm, roll diameter (max.): 57 mm, USB, RS232, Bluetooth (iOS), emulation: BXL/POS, RAM: 8 MB, Flash: 4 MB, Gap Sensor, incl.: power supply unit, power cable, belt clip, battery, 2850mAh, receipt roll
Description
ico-plus ico-minus
The Bixolon SPP-R410 Barcode Label Printer is a robust and compact mobile printing solution, ideal for field service, retail deliveries, and mobile POS applications. Weighing only 530g, it offers remarkable portability without compromising performance. Designed for seamless connectivity, the printer supports major operating systems, including iOS and Android, and features dual-band WLAN and Bluetooth. Its exceptional durability is certified with an IP54 rating for water and dust resistance, making it a reliable choice for various environments. Whether you need high-speed receipt printing or label printing, the SPP-R410 transitions effortlessly to meet your business needs.

Key Features
  • Fast printing speed: Up to 90 mm/sec for receipts.
  • Compact and lightweight: Only 530g with a drop rate of 1.8m.
  • Advanced connectivity: Compatible with iOS, Android, Linux, and Windows.
  • NFC capability: For easy Bluetooth pairing.
  • Supports linerless label printing: Optional for enhanced versatility.
  • 62-hour standby time: Perfect for long-term usage in the field.


Specifications
  • Print Method: Direct Thermal
  • Print Speed: Up to 90 mm/sec
  • Print Resolution: 203 dpi
  • Print Width: Up to 104 mm
  • Media Type: Receipt, Label, Linerless (Optional)
  • Drop Rate: 1.8 m (6 ft.)
  • Weight: 530 g (1.17 lbs) including battery
  • Battery: 7.4 V Li-ion, 2,600 mAh, rechargeable
  • Operating Temperature: -15~50°C (5~122°F)
  • Sealing: IP54 water and dust proof

Main Features

  • POS: Yes

  • Connection: Serial, USB

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 3.15 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.09"
Mobile Device Printing Yes
Print Technology Direct Thermal
Memory
Standard Memory 64 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Media Types & Handling
Media Type
  • Label
  • Linerless
  • Receipt
Maximum Roll Diameter 2.24"
Maximum Label Width 4.41"
Power Description
Power Source Battery
Physical Characteristics
Height 6.7"
Width 5.8"
Depth 2.6"
Weight (Approximate) 1.54 lb
Miscellaneous
Platform Supported
  • Handheld
  • PC
Documents
ico-plus ico-minus
Product document mod-spp-r410-bixolon-label-printer-datasheet.pdf MOD-SPP-R410 Product document mod-spp-r410-bixolon-label-printer-user-manual.pdf MOD-SPP-R410
