Bixolon

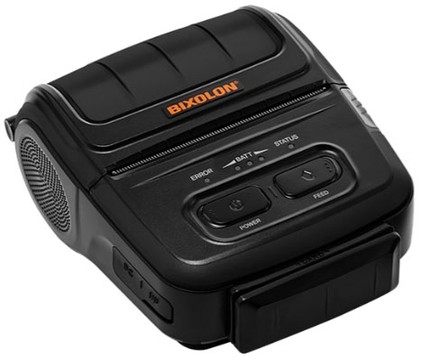

Bixolon SPP-L310WK5 Label Printers

SKU:

SPP-L310WK5

label printer, mobile printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 80 mm, print width (max.): 72 mm, roll diameter (max.): 50mm, speed (max.): 127 mm/s, USB, RS232, Wi-Fi (802.11a/b/g/n), Black Mark Sensor, Gap Sensor, emulation: ZPLII, CPCL, RAM: 128 MB, Flash: 256 MB, incl.: power supply unit, power cable, belt clip, battery, 2850mAh
Description
ico-plus ico-minus
Bixolon SPP-L310 is a compact and efficient 3-inch mobile label printer designed for diverse environments such as retail, healthcare, and warehousing. Weighing only 385g, it’s lightweight yet delivers exceptional performance with fast printing speeds of up to 5 inches per second. The printer is fully compatible with major programming languages and operating systems, including iOS, Android, and Windows, making it an ideal solution for businesses that require versatility and reliability on the go. With advanced connectivity options, including **Bluetooth 4.1** and **Dual-band WLAN**, the SPP-L310 supports easy Bluetooth pairing via NFC and can operate under challenging conditions thanks to its **IP54** water and dustproof rating. Enjoy seamless operations in a mobile environment without sacrificing speed or performance.

Key features:
  • Super compact and lightweight: Weighs just 385g (0.85 lbs).
  • Fast printing speed: Up to 5 ips (127 mm/sec).
  • Versatile connectivity: Bluetooth 4.1, Dual-band WLAN (2.4GHz & 5GHz), USB and Serial.
  • Durable design: IP54 rated for water and dust protection, with a drop resistance of 1.8m (6 ft).
  • Multiple media options: Supports various media widths from 58 to 80 mm.

Specifications:
  • Print Method: Direct Thermal
  • Print Speed: Up to 5 ips (127 mm/sec - Label), Up to 4 ips (102 mm/sec - Linerless)
  • Print Resolution: 203 dpi
  • Media Type: Liner and Linerless (Optional)
  • Media Width: 80 mm (Optional: 58/62/66/70/74 mm)
  • Battery: 7.3 V Li-ion, 2850 mAh (Rechargeable, charging time: Up to 4 hrs)
  • Weight: 385 g (Including battery)
  • Humidity Range: Operating: 10% to 80% RH
  • Operating Temperature: -15°C to 50°C (5°F to 122°F)
  • Interface: USB V2.0 HS + Serial + Bluetooth/WLAN (Optional)

Main Features

  • Equipment Format: Mobile

  • Connection: Serial, USB, Bluetooth

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4.02 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 2.83"
Barcode Symbology Supported
  • TLC 39
  • QR Code
  • Codabar
  • Maxi Code
  • UPC-E
  • UPC-A
  • AZTEC
  • POSTNET
  • Code 11
  • Code 93
  • Code 39
  • Industrial 2 of 5
  • IMB
  • UPC/EAN
  • GS1 DataBar (RSS-14)
  • LOGMARS
  • MSI
  • Plessey
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • Standard 2 of 5
  • Micro PDF-417
  • UTF-8
Application/Usage
  • Mobile
  • Ticketing
  • Healthcare
  • Retail
  • Logistic
Features
  • Compact
  • Lightweight
  • Water Resistant
  • Dust Resistant
  • Belt Clip
Ingress Protection (IP) Rating IP54
Connectivity Technology Wired & Wireless
Fonts Included
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 7 BPL-C
Print Technology Direct Thermal
Memory
Standard Memory 128 MB
Flash Memory 256 MB
Interfaces/Ports
Serial Port Yes
USB Host Yes
USB Yes
USB Standard USB 2.0
Network & Communication
Bluetooth Yes
Bluetooth Version 4.1
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Near Field Communication (NFC) Yes
Display & Graphics
Display Screen Yes
Screen Size 3"
Display Screen Type LCD
Media Types & Handling
Media Type
  • Label
  • Linered Label
Media Sensor
  • Paper End Sensor
  • Gap Sensor
  • Black Mark Sensor
  • Cover Open Sensor
Media Thickness 7.48 mil
Maximum Roll Diameter 2.20"
Maximum Label Width 4.41"
Fonts & Emulation
Language Emulation
  • SLCS
  • BPL-Z
  • BPL-C
  • ZPL II
  • CPCL
Software
Operating System Supported
  • Windows
  • iOS
  • Android
Power Description
Power Source Battery
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Capacity 2850 mAh
Environmental Conditions
Operating Temperature 5°F (-15°C) - 122°F (50°C)
Operating Relative Humidity 10% - 80%
Storage Temperature -22°F (-30°C) - 158°F (70°C)
Physical Characteristics
Height 2.3"
Width 4.1"
Depth 5"
Weight (Approximate) 1.17 lb
Miscellaneous
Package Contents
  • SPP-L310 3 inch Mobile Label Printer
  • Belt Clip
  • Battery Pack
  • Battery Charger
  • Power Cord
Compatibility
  • iPod
  • iPad
  • iPhone
Platform Supported PC
Energy Star Yes
Documents
ico-plus ico-minus
Product document spp-l310.pdf SPP-L310WK5 Product document spp-l310.pdf MOD-SPP-L310
