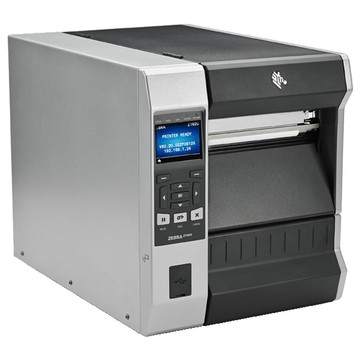

Zebra ZT620, Color Display, 300dpi, Wi-Fi, Bluetooth, Ethernet, Serial, USB, USB Host

SKU:

ZT62063-T01A100Z

At 300 dpi and up to 12.01 in/s, the Zebra ZT62063-T01A100Z delivers high-resolution monochrome output across a 6.61-inch print width using either direct thermal or thermal transfer technology. Label lengths reach 100 in, and media rolls up to 7.99 in in diameter feed stock as wide as 7.01 in, with support for die-cut, continuous, notched and black mark types. Standard 1 GB of memory supports demanding print queues, while serial, USB, Ethernet and Bluetooth connectivity cover integration into existing warehouse, manufacturing and distribution environments. The unit measures 13.4 in wide by 19.9 in deep by 15.6 in tall and weighs 57.40 lb, and it draws power from an AC supply. Energy Star qualification rounds out a configuration built for sustained industrial throughput.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra ZT620 is a heavy-duty industrial thermal transfer label printer designed for procurement and IT teams running high-volume, mission-critical labeling operations in manufacturing, transportation and logistics, retail distribution, and healthcare environments. Built on an all-metal frame, it delivers monochrome thermal transfer printing at speeds up to 12 ips (305 mm/s) and resolutions up to 300 dpi, handling media widths from 2.0 in. to 7.1 in. on rolls up to 8.0 in. in diameter. A 4.3-inch full-color touchscreen simplifies operator control and status monitoring, while Gigabit Ethernet, Bluetooth, USB, and serial connectivity ensure straightforward integration with existing enterprise systems. Running on the Link-OS platform, the ZT620 supports ZPL, ZPL II, and XML emulations, and is Energy Star qualified for cost-conscious operations.

Main Features

  • Rugged: Industrial

  • Equipment Format: Industrial

  • Connection: Serial, USB, Ethernet, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 12.01 in/s
Maximum Print Resolution (dpi) 300
Maximum Print Length 100"
Maximum Print Width 6.61"
Application/Usage Industrial
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 1 GB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Bluetooth Yes
Media Types & Handling
Media Type
  • Black Mark
  • Notch
  • Continuous Label
  • Die-cut Label
Maximum Roll Diameter 7.99"
Maximum Label Width 7.01"
Power Description
Power Source AC Supply
Physical Characteristics
Height 15.6"
Width 13.4"
Depth 19.9"
Weight (Approximate) 57.40 lb
Miscellaneous
Energy Star Yes
Documents
ico-plus ico-minus
Product document mod-zt620-zebra-label-printer-datasheet.pdf ZT62063-T01A100Z  (PDF) Product document mod-zt620-zebra-label-printer-user-manual.pdf ZT62063-T01A100Z  (PDF) Product document zt600.pdf ZT62063-T01A100Z  (PDF) Product document zt600-series-infographic-us-en.pdf ZT62063-T01A100Z  (PDF) Product document zt600-series-specification-sheet-a4-en-us.pdf ZT62063-T01A100Z  (PDF)
FAQs
ico-plus ico-minus
What print resolution options does the Zebra ZT620 support?
The Zebra ZT620 supports 203 dpi as standard and 300 dpi as an optional upgrade. The 600 dpi option available on the ZT610 is not available on the ZT620.
How fast can the Zebra ZT620 print, and does speed change with resolution?
The ZT620 reaches a maximum print speed of 12 ips (305 mm/s) at 203 dpi and 8 ips at 300 dpi.
What connectivity interfaces are built into the Zebra ZT620?
Standard interfaces include USB 2.0, RS-232 Serial, Gigabit Ethernet, and Bluetooth 4.0. Two open communication slots allow field installation of additional cards such as 802.11ac or 802.11ax Wi-Fi, parallel, Ethernet, and applicator interface options.
What media widths and roll sizes does the Zebra ZT620 accommodate?
The ZT620 accepts media widths from 2.0 in. to 7.1 in. for tear and cutter configurations, and 2.0 in. to 6.75 in. for peel and rewind configurations, with a maximum media roll diameter of 8.0 in. on a 3 in. core.
Which industries and applications is the Zebra ZT620 designed for?
The ZT620 targets manufacturing (work-in-process, product ID, package labeling), transportation and logistics (shipping, receiving, compliance labeling), retail distribution centers, and healthcare (laboratory, blood bank, pharmacy, and asset tracking labels).
What optional finishing modules and RFID capabilities are available for the Zebra ZT620?
Available media-handling options include a rewind module, a front-mount guillotine cutter with catch tray, and a peeler. An RFID module supporting UHF EPC Gen 2 V2.1, ISO/IEC 18000-63, and RAIN RFID protocols is also field-installable on the ZT620.
