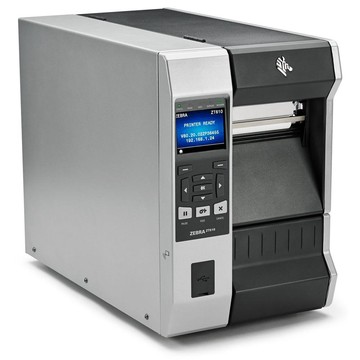

Zebra ZT610 Barcode Printer, Thermal Transfer, 203dpi, 4.09in Print Width, 14in/s, Color Touch Display

The Zebra ZT610 label printer is an industrial-grade, 4-inch class thermal printer designed for high-volume, mission-critical labeling in manufacturing, logistics, warehousing and retail environments. Available in multiple configurations, the ZT610 supports direct thermal and thermal transfer printing with selectable resolutions (203, 300, 600 dpi) and print speeds up to 14 in/s, delivering accurate barcodes, compliance labels and asset tags with consistent readability. Its metal-frame construction, guided media paths and side-loading supplies reduce downtime, while a color touch display and broad wired and wireless connectivity simplify deployment and day-to-day operation. Optional features such as RFID, cutter and rewind further adapt the platform to complex B2B labeling workflows.

Key Features

• Versatile print quality: Multiple resolution options (203 / 300 / 600 dpi) let you choose the level of detail required for barcodes, small text and graphics.
• High throughput: Speeds up to 14 in/s (model dependent) enable efficient output for high-volume production and shipping operations.
• Flexible media handling: Supports a variety of media types (continuous, die-cut, notch, hole, black mark) with guided media paths and side-loading for fast media changes.
• Enterprise connectivity: Broad interfaces including USB, USB Host, Serial/RS-232, Gigabit Ethernet, Bluetooth (4.x) and optional Wi‑Fi simplify integration into existing systems.
• Operator-centric controls: Color touch display provides clear status feedback and intuitive configuration to reduce setup time and troubleshooting.
• Expandability for workflows: Optional RFID, cutter and rewind features let organizations tailor the ZT610 to tracking, finishing and roll-handling requirements.

Specifications

• Brand: Zebra
• Product Family: ZT610
• Print Methods: Direct thermal; Thermal transfer
• Print Resolutions: 203 dpi; 300 dpi; 600 dpi
• Maximum Print Speed: Up to 14 in/s
• Maximum Print Width: 4.09 in
• Maximum Print Length: 100 in
• Supported Media Types: Continuous; Die-cut; Notch; Hole; Black mark
• Connectivity: Serial (RS-232); USB; USB Host; Gigabit Ethernet; Bluetooth 4.0 / 4.2; optional Wi‑Fi (802.11ac)
• Flash Memory: Up to 2 GB
• SDRAM Memory: 1 GB
• Color Touch Panel: Yes
• Cutter Included: Available on selected configurations
• RFID Support: Available on selected configurations (UHF)
• Electrical Input: 90 to 265 VAC; 47 to 63 Hz
• Maximum Media Roll Size (O.D.): 8.0 in
• Ribbon Core Diameter: 1.0 in
• Ribbon Standard Length: 1476 ft
• Maximum Media Width: 4.5 in
• Maximum Media Thickness: 0.012 in
• Minimum Media Thickness: 0.003 in
• Media Roll Core Inner Diameter: 3.0 in
• Operating Temperature (Direct Thermal): 32 to 104 °F
• Operating Temperature (Thermal Transfer): 40 to 104 °F
• Storage/Transportation Temperature: -22 to 140 °F
• Operating Humidity: 20 to 85 %
• Storage Humidity: 20 to 85 %
