This product has been replaced by
Zebra ZT410 RFID, 300dpi, Bluetooth, Ethernet, Serial, USB, USB Host replaced by MOD-ZT411
Zebra ZT411 Label Printers, Industrial, Thermal Transfer/Direct Thermal, 4.09 in SKU: MOD-ZT411 View product
Zebra

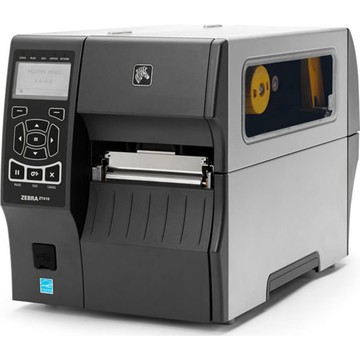

Zebra ZT410 RFID, 300dpi, Bluetooth, Ethernet, Serial, USB, USB Host

SKU:

ZT41043-T0100A0Z

The ZT41043-T0100A0Z pairs 300 dpi resolution with an integrated RFID encoder, distinguishing it from standard-print siblings in the ZT410 family for item-level UHF tracking applications. Running direct thermal or thermal transfer at up to 14 in/s across a 4.09-inch print width, it handles continuous, die-cut, notched, black mark and RFID labels up to 4.49 inches wide, 39 inches long and 9.84 mil thick on rolls to 8 inches in diameter with a 3-inch core. Transmissive and reflective media sensors support the full range of media formats, while 256 MB of RAM and 512 MB of flash back ZPL, ZPL II, EPL and XML emulation with real-time clock support. Serial, USB, Fast Ethernet and Bluetooth connectivity come standard, and the printer accepts 110 V AC or 220 V AC input. Weighing 36 lb, it carries cTUVus and CE certifications, Energy Star qualification, and a one-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra ZT410 is a rugged industrial label printer built for IT and operations teams that demand continuous, high-volume output in demanding environments such as manufacturing, warehousing, transportation and logistics, retail distribution, and healthcare. Constructed around an all-metal frame with a bi-fold metal media cover, it delivers thermal transfer and direct thermal printing at print speeds up to 14 ips/356 mm per second and resolutions of 203 dpi, 300 dpi, or 600 dpi depending on configuration, making it equally capable of high-throughput shipping labels and precise small-label applications. Standard connectivity spans USB, RS-232 Serial, 10/100 Ethernet, and Bluetooth, with optional 802.11 a/b/g/n wireless, ensuring straightforward integration into existing enterprise networks. Select models add UHF RFID encoding for smart label production and item-level traceability, while Zebra's Link-OS environment simplifies remote management and maintenance across distributed print fleets.

Main Features

  • RFID: Yes

  • Equipment Format: Industrial

  • Connection: Serial, USB, Ethernet, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use RFID Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 14 in/s
Maximum Print Resolution (dpi) 300
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-E
  • UPC-A
  • EAN-13
  • EAN-8
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • RSS Composite
  • Aztec Code
Encoding Technology RFID Encoder
Real Time Clock Yes
Application/Usage Desktop
Features
  • Element Energy Equalizer
  • Tear Bar
  • Bi-color LED
Memory
Standard Memory 256 MB
Flash Memory 512 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Bluetooth Yes
RFID Yes
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Label
  • Continuous Label
  • Die-cut Label
  • Notch
  • Black Mark
  • RFID Label
Media Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness 9.84 mil
Maximum Roll Diameter 8"
Maximum Label Width 4.49"
Maximum Label Length 39"
Label Core Size 3"
Ribbon Core Size 1"
Fonts & Emulation
Language Emulation
  • ZPL
  • EPL
  • ZPL II
  • XML
Software
Operating System Supported Zebra's Link-OS
Power Description
Power Source AC Supply
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height 12.8"
Width 10.6"
Depth 19.5"
Weight (Approximate) 36 lb
Miscellaneous
Platform Supported PC
Certifications & Standards
  • Uni Code
  • PFC
  • IEC 60950
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • cTUVus
  • CE Marking
  • FCC-B
  • ICES-003
  • VCCI
  • C-Tick
  • NOM
  • S-Mark (Arg)
  • CCC
  • CU
  • BSMI
  • KCC
  • SABS
  • IN-Metro
Energy Star Yes
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mod-zt410-rfid-zebra-label-printer-datasheet.pdf ZT41043-T0100A0Z  (PDF)
