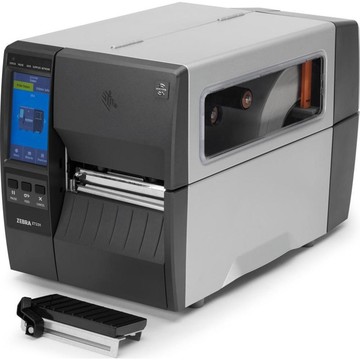

Zebra ZT231 Barcode Printer Direct Thermal, 203 dpi, 4" Print Width, 12 ips, 4.3" Touchscreen, RFID, Peeler

The Zebra ZT231 is an industrial label printer built on a metal frame, designed for operators who need reliable monochrome label output at print speeds up to 12 in/s. It supports both direct thermal and thermal transfer print methods, accommodates media up to 4.09" wide, and ships with a 4.3" color resistive touchscreen that makes on-site setup and status monitoring straightforward without specialist training.

Key Features:

• Dual print method support — direct thermal and thermal transfer — means a single printer platform can handle both ribbon-based and ribbonless media, reducing the need for separate hardware.
• Print resolution is available at 203 dpi or 300 dpi, letting buyers select the level of output sharpness that their label content demands.
• A maximum print speed of 12 in/s at 203 dpi keeps label throughput high during continuous production runs.
• The 4.3" color resistive touchscreen responds to bare or gloved hands, making it practical to operate in environments where operators cannot remove protective gear.
• Standard connectivity covers USB 2.0, USB Host, RS-232 serial, 10/100 Ethernet, and Bluetooth Low Energy, giving IT teams a wide choice of integration paths without add-on hardware.
• 256 MB of on-board Flash memory supports the storage of downloadable fonts, graphics, and label formats, reducing host-dependency for complex label jobs.
• Field-installable options including a cutter, peeler, liner take-up, and UHF RFID allow the printer to be expanded after purchase rather than replaced when requirements change.
• An extensive certification portfolio — including FCC Class B, CE Marking, UKCA, cTUVus, ENERGY STAR, and others — supports deployment across multiple regulatory jurisdictions.

The ZT231 occupies Zebra's value industrial segment, pairing a durable metal-frame build with a compact footprint that conserves bench or floor space while still delivering the connectivity and media-handling flexibility expected of a full industrial platform.

Print Methods and Resolution

The ZT231 operates in direct thermal mode, which uses heat-sensitive media and requires no ribbon, or in thermal transfer mode, which uses a ribbon to bond ink onto a wider range of substrates. Buyers choose the method that suits their media and durability requirements, and a single unit can be configured for either. Output resolution is available at 203 dpi or 300 dpi — the 203 dpi printhead supports programmable speeds from 2.0 in/s through 12 in/s in 1 in. increments, while the 300 dpi printhead supports 2.0 in/s through 8 in/s in the same increments.

Print Width and Media Capacity

The printer handles a maximum print width of 4.09" and accepts media web widths from 0.75" up to 4.50". Roll capacity reaches 8.0" O.D. on a 3" I.D. core, or 6.0" O.D. on a 1" I.D. core, so operators can load large rolls and reduce changeover frequency. Media thickness is supported up to 9.84 mil.

Media Types and Sensor Flexibility

Supported media types include continuous labels, die-cut labels, notch media, and black mark media. Detection is handled by both a transmissive media sensor and a reflective media sensor, and both sensors are adjustable, so the printer accommodates a broad range of label formats without manual workarounds for unusual gap or mark positions.

Media Handling Options

The standard tear bar lets operators remove labels manually. For higher-throughput or more automated workflows, field-installable options include a passive peel with no take-up spindle, a peel with liner take-up, and a front-mount guillotine cutter. These options are added after purchase, so the base printer can be upgraded as operational needs evolve rather than at the initial point of sale.

Ribbon Capacity for Thermal Transfer Configurations

When configured for thermal transfer, the ZT231 accepts ribbon up to 4.33" wide and accommodates a maximum ribbon length of 1,476 ft. (450 m), which translates to fewer ribbon changes during long production runs and less operator intervention between media loads.

Operator Interface and Controls

The 4.3" color resistive touchscreen presents the printer's current status on a home screen and provides access to user menus, setup wizards, and shortcut favorites. Three-color status LEDs on the control panel give a quick visual read of printer state without requiring the operator to approach the touchscreen. Dedicated PAUSE, FEED, and CANCEL buttons handle the most common run-time actions. A real-time clock is built in, enabling time-stamped records and scheduled operations.

Standard Connectivity

Every ZT231 includes USB 2.0, USB Host, RS-232 serial, 10/100 Fast Ethernet, and Bluetooth Low Energy as standard interfaces. The USB Host port enables connection of peripherals such as keyboards and USB flash drives directly to the printer. The RS-232 port is configurable for baud rates from 4800 to 115,200 with selectable parity, data bits, and stop bits, and supports both software and hardware handshake protocols.

Optional Wireless and Network Expansion

An 802.11ac Wi-Fi option card, a second 10/100 Ethernet port, and an Applicator Interface are available as optional connectivity upgrades, one per printer. The NFC Print Touch tag enables tap-to-pair interaction with compatible mobile devices, allowing a phone or tablet to connect and send jobs without navigating a network setup.

Memory and On-Board Storage

The ZT231 carries 256 MB of SDRAM and 256 MB of on-board Flash memory. Of the Flash, 64 MB is available to users for downloadable objects — fonts, graphics, label templates — and 32 MB of the SDRAM is available for format-while-printing operations. This allocation supports complex label formats and reduces the volume of data the host must transmit for each job.

Firmware and Language Emulation

The printer runs ZPL and ZPL II, Zebra's native programming languages, and also emulates EPL and EPL2 for compatibility with formats written for older Eltron-based printers. ZBI 2.0 is available as an optional firmware extension that enables the printer to run stand-alone applications and interface with peripherals without a continuous host connection. EPL with Line Mode is available on direct thermal configurations; EPL is available on 203 dpi models.

Barcode Symbology Coverage

The ZT231 supports a wide set of linear and 2D barcode symbologies under ZPL. Linear formats include Code 11, Code 39, Code 93, Code 128 with subsets A, B, and C, UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- and 5-digit extensions, Plessey, POSTNET, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, LOGMARS, Codabar, MSI, and Planet Code. Two-dimensional formats include Aztec, Codablock, PDF417, Code 49, Data Matrix, Maxi Code, QR Code, Micro PDF-417, TLC 39, RSS-14, and RSS Composite.

UHF RFID Capability

A UHF RFID kit is available as a field-installable upgrade, adding printing and encoding of tags compatible with UHF EPC Gen 2 V2.1, ISO/IEC 18000-63, and RAIN RFID protocols. Zebra's adaptive encoding technology eliminates complex placement guidelines, and an integrated RFID log records all encoding events with timestamps for traceability.

Physical Build and Dimensions

The printer is constructed on a metal frame and measures 17" deep by 9.5" wide by 11" high in its closed configuration, with a weight of 20 lb. The bi-fold media door reduces the clearance height needed to open the printer in constrained spaces, and a side-loading supplies path simplifies both media and ribbon loading. Tool-less platen and printhead removal supports routine maintenance without additional equipment.

Environmental Operating Range

In direct thermal mode the printer operates between 32°F (0°C) and 105°F (40.6°C); in thermal transfer mode the lower operating limit rises to 40°F (5°C). Operating relative humidity is 20% to 85% non-condensing. Storage conditions extend from -40°F (-40°C) to 140°F (60°C) at 5% to 85% non-condensing relative humidity.

Certifications and Compliance

The ZT231 holds an extensive set of agency approvals covering safety, electromagnetic compatibility, and radio frequency regulations across multiple markets: IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209, 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S-Mark, CCC, CU EAC, BSMI, KCC, and BIS. The printer is also ENERGY STAR certified.

Warranty

The ZT231 carries a 1 Year limited warranty covering defects in workmanship and materials from the date of shipment.

Markets and Applications

Manufacturing, Transportation & Logistic, Healthcare, Retail
