Zebra

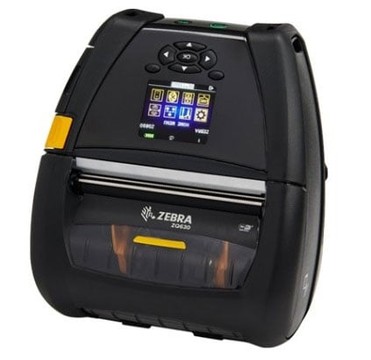

Zebra ZQ630 Plus, Bluetooth, 19mm Core

SKU:

ZQ63-AUFA004-00

Fitted with a 6800 mAh battery — the highest capacity in the ZQ600 Plus Series lineup — the Zebra ZQ63-AUFA004-00 is a direct thermal mobile printer for label and receipt production at 203 dpi and up to 4.53 in/s across a 4.09-inch print width. Media up to 4.40 inches wide and 6.50 mil thick loads on rolls to 2.60 inches in diameter, with gap and black mark sensors covering die-cut labels, tags, receipts and black bar stock up to 32 inches long. Bluetooth and NFC are standard, with optional Wireless LAN, USB, Serial (RS-232) and Ethernet connectivity. The 256 MB of standard memory supports ZPL, EPL, CPCL, ZBI 2.0 and XML emulation, while Link-OS enables platform support for iOS, Android and PC. At 2.43 lb with an IP54 ingress rating and an operating range of -4°F (-20°C) to 122°F (50°C), it carries CE, TUV and CSA safety certifications and is backed by a 1 Year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra ZQ630 Plus is a professional mobile direct thermal label and receipt printer designed for field workers and mobile associates in retail, warehousing, manufacturing, transportation, and logistics environments. Printing at up to 115 mm per second at 203 dpi, it produces sharp barcodes, text, and graphics across a maximum print width of 4.1 in./104 mm, handling linered media up to 4.4 in./112 mm and linerless configurations to reduce consumable waste. A 6,600 mAh removable PowerPrecision+ Li-Ion battery sustains operations through extended shifts, while Bluetooth, Wi-Fi, USB, serial, and Ethernet connectivity options simplify integration with existing host systems and mobile devices. The IP54-rated, high-grade resin housing with over-molding and a tempered-glass color display delivers drop tolerance of up to 6 ft./1.83 m, and support for ZPL, ZPL II, EPL, and CPCL command languages eases deployment across Zebra Link-OS environments. RFID capability is available on compatible configurations.

Main Features

  • POS: Yes

  • Equipment Format: Mobile

  • Connection: Bluetooth

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4.53 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 32.01"
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar (NW-7)
  • Interleaved 2 of 5
  • UPC-A
  • UPC E with 2 and 5 add on
  • EAN-8
  • EAN-13
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • AZTEC
  • MSI PLESSEY
  • FIM
  • POSTNET
  • Data Matrix
  • TLC 39
  • 2 and 5 Digits Add-on
Application/Usage
  • Desktop
  • Industrial
  • Mobile
Features
  • Belt Clip
  • Shoulder Strap
  • Dust Resistant
  • Water Resistant
Mobile Device Printing Yes
Ingress Protection (IP) Rating IP54
Character Sets
  • Universal Font Scaling Technology (UFST)
  • Agfa Monotype
Connectivity Technology Wireless
Optional Connectivity
  • Wireless LAN
  • Serial (RS-232)
  • USB
  • Ethernet
Print Technology Direct Thermal
Memory
Standard Memory 256 MB
Network & Communication
Bluetooth Yes
Near Field Communication (NFC) Yes
Display & Graphics
Display Screen Yes
Media Types & Handling
Media Type
  • Gap
  • Black Mark
  • Receipt
  • Label
  • Die-cut Label
  • Tag
  • Linered Media
  • Black Bar
Media Sensor
  • Black Mark Sensor
  • Gap Sensor
Media Thickness 6.50 mil
Maximum Roll Diameter 2.60"
Maximum Label Width 4.40"
Maximum Label Length 32"
Fonts & Emulation
Language Emulation
  • CPCL
  • EPL
  • ZPL
  • ZBI 2.0
  • XML
Software
Operating System Supported Link-OS
Power Description
Power Source Battery
Battery Information
Battery Capacity 6800 mAh
Environmental Conditions
Operating Temperature -4°F (-20°C) - 122°F (50°C)
Operating Relative Humidity 10% - 90%
Storage Temperature -13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 3.3"
Width 6.5"
Depth 7.4"
Weight (Approximate) 2.43 lb
Miscellaneous
Platform Supported
  • iOS
  • Android
  • PC
Certifications & Standards

Emissions:

  • FCC Part 15
  • Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B


Susceptibility:

  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5


Safety:

  • CE
  • TUV
  • CSA
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mod-zq630-plus-zebra-label-printer-datasheet-1.pdf ZQ63-AUFA004-00 Product document mod-zq630-plus-zebra-label-printer-user-manual.pdf ZQ63-AUFA004-00 Product document zq600-series.pdf MOD-ZQ630-PLUS
FAQs
ico-plus ico-minus
What wireless connectivity options does the Zebra ZQ630 Plus support for integrating with existing warehouse or retail systems?
The Zebra ZQ630 Plus supports Bluetooth (BLE, Classic), Wi-Fi via 802.11ac or the optional 802.11ax (Wi-Fi 6) radio, USB, RS-232 serial, and Ethernet through a charging cradle. The 802.11ac radio pairs with Bluetooth 4.2, while the 802.11ax option pairs with Bluetooth 5.3. NFC is also available for simplified Bluetooth pairing via Zebra Print Touch.
What print resolution and maximum print speed does the Zebra ZQ630 Plus deliver, and how wide a label can it handle?
The Zebra ZQ630 Plus prints at 203 dpi with a maximum speed of up to 115 mm per second. It supports a maximum print width of 104 mm and accepts media up to 112 mm wide for linered media, or up to 104 mm wide for linerless media.
What is the battery capacity of the Zebra ZQ630 Plus, and how rugged is it for field use?
The ZQ630 Plus carries a 6600 mAh PowerPrecision+ Li-Ion battery according to the ZQ600 Plus Series spec sheet, and is rated IP54 for dust and water resistance with drop tolerance of up to 1.83 m to concrete.
Which label programming languages does the Zebra ZQ630 Plus support, and will it work with my current Zebra label templates?
The ZQ630 Plus supports CPCL, EPL, ZPL, and ZPL II programming languages, making it directly compatible with existing ZPL and EPL label templates used across Zebra's broader printer portfolio.
In which industries and workflows is the Zebra ZQ630 Plus typically deployed?
The ZQ630 Plus is designed for retail (shelf-edge labels, markdowns, mobile point-of-sale receipts, return labels), manufacturing and warehousing (pick-and-pack, raw materials, finished goods, RFID case and pallet labels), and transportation and logistics (receiving, put-away, picking, packing, shipping, and reverse logistics).
Can the Zebra ZQ630 Plus print RFID labels, and what media types does it accept?
RFID capability is available on the ZQ630 Plus as a separate product configuration; the sources note it is RFID compatible. Beyond RFID, the printer accepts die-cut labels and tags, linerless labels, receipt paper, and media detected via black bar and gap sensing, on rolls up to 66 mm outer diameter with a 19 mm or 34.9 mm inner core.
