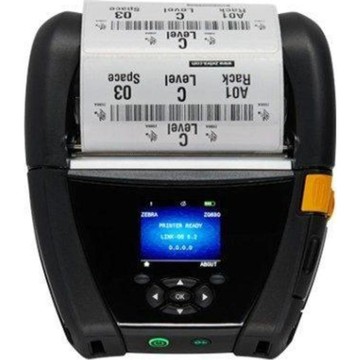

Zebra ZQ630, Wi-Fi 5, Bluetooth, 19mm Core

SKU:

ZQ63-AUWA000-00

Print labels and receipts on the go with the Zebra ZQ630 Mobile Pro Printer, a 4-inch direct thermal mobile printer with 203 dpi resolution, 802.11ac Wi-Fi, Bluetooth 4.1, and USB connectivity. Built with over-molding, a tempered-glass display, and a one-piece design, it is optimized for high-volume mobile printing while delivering dependable power efficiency and easy portability.
Description
ico-plus ico-minus

The Zebra ZQ630 Rugged Connect Printer is a professional-grade mobile label and receipt printer designed for demanding field, retail, logistics, manufacturing and healthcare environments. Built around direct thermal technology, it offers reliable on-the-go printing with a compact, rugged chassis, long‑life battery options and flexible media handling—including linerless support and optional peelers or cutters—so teams can print labels, receipts and barcodes where work happens. With broad connectivity choices and enterprise-class print language compatibility, the ZQ630 streamlines integration into existing workflows, reduces downtime through durable construction and removable batteries, and delivers consistent, high‑quality output for mission‑critical mobile applications.

Key Features

  • Rugged portability: Industrial/commercial design with drop tolerance and IP43‑class ingress protection for reliable operation in harsh field and warehouse conditions.
  • Flexible connectivity: Multi‑interface support including Bluetooth 4.1/LE, Wi‑Fi 802.11ac (Wi‑Fi 5), USB and optional NFC/RS232 for simple pairing with handhelds, scanners and POS systems.
  • Long battery life and serviceability: High‑capacity removable battery (6800 mAh / 49.4 Wh) provides extended runtime and can be swapped to minimize downtime in continuous operations.
  • Media versatility: Supports linerless media, multiple media sensors (gap, black mark, label taken, media width) and optional peel-and-present, cutter or rewinder accessories for diverse workflows.
  • Consistent print quality: 203 dpi thermal resolution with up to 4.5 in/s (115 mm/s) print speed and a maximum print width of approximately 4.1 in (104 mm) for readable barcodes and labels.

Specifications

  • Brand: Zebra
  • Product name: Zebra ZQ630 Rugged Connect Printer
  • Category: Label Printers
  • Print method: Direct Thermal
  • Print resolution: 203 dpi
  • Maximum print width: 4.1 in (104 mm)
  • Print speed: Up to 4.5 in/s (115 mm/s)
  • RAM: 256 MB
  • Flash memory: 512 MB
  • Battery capacity: 6800 mAh
  • Battery energy: 49.4 Wh
  • Removable battery: true
  • Connectivity: Bluetooth 4.1 / Bluetooth LE, Wi‑Fi (802.11ac), USB (USB 2.0), NFC, RS232
  • Supported command languages: CPCL, EPL, ZPL, ZPLII
  • Media features: Linerless support, peel-and-present mode, tear bar
  • Sensors: Label taken, black mark, gap, media width
  • Dimensions (W × H × L): 7.35 × 6.5 × 3.25 in
  • Weight: 2.45 lb
  • Ingress protection rating: IP43
  • Drop tolerance: 6 ft
  • Print languages / fonts: English/Latin fonts

Main Features

  • RFID: Yes

  • POS: Yes

  • Equipment Format: Mobile

  • Connection: Bluetooth

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4.53 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 32.01"
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar (NW-7)
  • Interleaved 2 of 5
  • UPC-A
  • UPC E with 2 and 5 add on
  • EAN-8
  • EAN-13
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • Aztec Code
  • MSI PLESSEY
  • FIM
  • POSTNET
  • Data Matrix
  • TLC 39
Application/Usage
  • Mobile
  • Industrial
Features
  • Belt Clip
  • Shoulder Strap
  • Dust Resistant
  • Water Resistant
Mobile Device Printing Yes
Connectivity Technology Wireless
Print Technology Direct Thermal
Memory
Standard Memory 256 MB
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/c
Near Field Communication (NFC) Yes
RFID Yes
Media Types & Handling
Media Type
  • Gap
  • Black Mark
  • Receipt
  • Label
  • Die-cut Label
  • Tag
  • Linered Label
  • Black Bar
Media Thickness 6.50 mil
Maximum Roll Diameter 2.60"
Maximum Label Width 4.40"
Maximum Label Length 32"
Fonts & Emulation
Language Emulation
  • CPCL
  • EPL
  • ZPL
  • XML
Software
Operating System Supported

Link-OS
Power Description
Power Source Battery
Battery Information
Battery Capacity 6800 mAh
Environmental Conditions
Operating Temperature -4°F (-20°C) - 122°F (50°C)
Operating Relative Humidity 10% - 90%
Storage Temperature -13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 3.3"
Width 6.5"
Depth 7.4"
Weight (Approximate) 2.43 lb
Miscellaneous
Platform Supported
  • iOS
  • Android
  • PC
Certifications & Standards

Emissions:

  • FCC Part 15
  • Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B

Susceptibility:

  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5

Safety:

  • CE
  • TUV
  • CSA
Documents
ico-plus ico-minus
Product document mod-zq630-zebra-label-printer-datasheet.pdf ZQ63-AUWA000-00 Product document mod-zq630-zebra-label-printer-user-manual.pdf ZQ63-AUWA000-00 Product document mod-zq630-zebra-label-printer-datasheet.pdf MOD-ZQ630 Product document mod-zq630-zebra-label-printer-user-manual.pdf MOD-ZQ630
