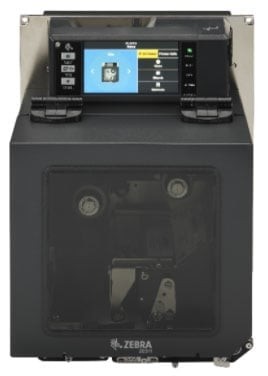

ZE511 4-inch Wide Print Engine

At 600 dpi, the Zebra ZE51146-L010000Z delivers the highest resolution configuration in the ZE511 print engine family, producing monochrome direct thermal and thermal transfer output at up to 6 in/s across a 4.09-inch print width, with maximum label widths to 4.49 inches and print lengths to 39.02 inches. The unit ships with 512 MB of standard memory and a 4.3-inch LCD touchscreen that can be repositioned up to two meters from the engine and rotated to suit the installation. Transmissive and reflective media sensors handle die-cut, continuous and black mark stock, while ZPL, ZPL II and ZBI 2.0 emulation, Unicode and 850 character sets, and a real-time clock round out the software layer. Connectivity spans serial, USB, USB host, Fast Ethernet and Bluetooth, with RFID encoding included in this configuration. Operating across 31°F (-0.6°C) to 104°F (40°C) and 20% to 95% relative humidity, the fanless all-metal chassis weighs 33.95 lb. Certifications include cTUVus, CE, FCC A, IEC 62368-1 and Energy Star, positioning this unit for manufacturing, warehouse, retail and healthcare labeling environments.
