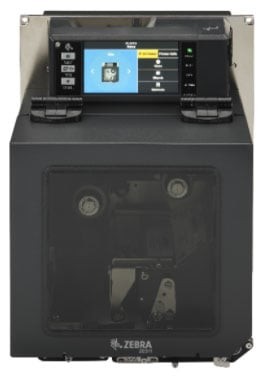

ZE511 4-inch Wide Print Engine

Name: ZE511 4-inch Wide Print Engine
Brand: Zebra
SKU: ZE51143-R01A000Z
Price: 6630.77 USD
Availability: OutOfStock

SKU:

ZE51143-R01A000Z

At 600 dpi, the Zebra ZE51143-R01A000Z delivers the highest print resolution in the ZE511 print engine line, producing monochrome direct thermal and thermal transfer labels at up to 6 in/s across a 4.09-inch print width, with label lengths to 39.02 inches and media up to 4.49 inches wide and 9.84 mil thick. The 512 MB of standard memory supports ZPL, ZPL II and ZBI 2.0 emulation, while transmissive and reflective media sensors handle die-cut, continuous, black mark and label stock. A 4.3-inch LCD touchscreen with a real-time clock simplifies operation, and connectivity spans serial, USB, USB host, Fast Ethernet and Bluetooth, with optional Wireless LAN. Operating across 31°F to 104°F and 20% to 95% relative humidity, the 32.41 lb all-metal chassis carries cTUVus, CE, FCC A and Energy Star certifications, suiting manufacturing, warehouse, automotive and pharmacy labeling environments.

Prices could not be updated.

Item on backorder — chat for lead time

Have you seen a lower price?

Add TrueSupport for 3 years: $154.00 View details

Add a protection plan 1 years for: $182.69 View details

Same-day shipping on orders placed before 2:00 p.m. CT

Secure payment with

Need help? Contact our specialists to learn more about our solutions:

Description

The Zebra ZE511 is an industrial-grade thermal transfer and direct thermal print engine designed for procurement and IT teams deploying high-volume label printing in demanding environments. Built for manufacturing, warehousing, automotive, pharmaceuticals, and food and beverage operations, it delivers print speeds up to 18 ips at 203 dpi and a maximum print width of 4.09 in., making it well suited for continuous, mission-critical production lines. Its all-metal, fanless construction resists debris and water ingress, while a 4.3 in. full-color LCD touch screen simplifies setup and operation with minimal training. Standard connectivity spanning USB 2.0, RS-232 Serial, 10/100 Ethernet, and Bluetooth 4.1 ensures straightforward integration into existing wired and wireless infrastructure. Optional field-installable UHF RFID encoding extends the engine's value into advanced asset tracking and traceability workflows, and ZPL/ZPL II compatibility keeps it at home in any established Zebra environment.

Technical Specifications

Technical Information
Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	6 in/s
Maximum Print Resolution (dpi)	600
Maximum Print Length	39.02"
Maximum Print Width	4.09"
Barcode Symbology Supported	Code 11 Code 39 Code 93 Code 128 (A/B/C) UCC Case Codes ISBT-128 UPC-A UPC-E EAN-8 EAN-13 UPC-A with EAN 2 or 5 Digit Extension Plessey POSTNET Standard 2 of 5 Industrial 2 of 5 Interleaved 2 of 5 LOGMARS MSI Codabar Planet Code Codablock PDF417 Code 49 Data Matrix Maxi Code QR Code TLC 39 Micro PDF RSS-14 AZTEC
Real Time Clock	Yes
Application/Usage	Desktop Manufacturing Warehouse Automotive Pharmacy
Features	LCD Display
Mobile Device Printing	Yes
Character Sets	Unicode 850
Connectivity Technology	Wired & Wireless
Optional Connectivity	Parallel Wireless LAN
Print Technology	Direct Thermal /Thermal Transfer

Memory
Standard Memory	512 MB

Interfaces/Ports
Serial Port	Yes
USB Host	Yes
USB	Yes

Network & Communication
Ethernet	Yes
Ethernet Technology	Fast Ethernet
Bluetooth	Yes

Display & Graphics
Display Screen	Yes
Screen Size	4.3"
Display Screen Type	LCD
Touchscreen	Yes

Media Types & Handling
Media Type	Label Die-cut Label Continuous Label Black Mark
Media Sensor	Reflective Media Sensor Transmissive Media Sensor
Media Thickness	9.84 mil
Maximum Label Width	4.49"

Fonts & Emulation
Language Emulation	ZPL ZBI 2.0 ZPL II

Power Description
Power Source	AC Supply
Frequency	47 Hz 63 Hz

Environmental Conditions
Operating Temperature	31°F (-0.6°C) - 104°F (40°C)
Operating Relative Humidity	20% - 95%
Storage Temperature	40°F (4.4°C) - 160°F (71.1°C)
Storage Relative Humidity	5% - 95%

Physical Characteristics
Height	11.8"
Width	9.6"
Depth	14.9"
Weight (Approximate)	32.41 lb

Miscellaneous
Power Cable Localization	US
Platform Supported	PC
Certifications & Standards	Standards approvals: IEC 62368-1; EN 55032, Class A; EN 55035; EN 61000-3-2, 3-3 Product markings, but not limited to: cTUVus; CE; FCC A; ICES-003; VCCI; RCM; CCC; EAC; S-Mark; KCC; BSMI; India-BIS; In-Metro; Energy Star
Energy Star	Yes
