Zebra

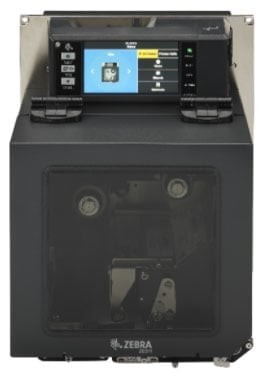

ZE511 4-inch Wide Print Engine

SKU:

ZE51142-L01A000Z

With field-installable RFID encoding and Bluetooth alongside standard USB, USB Host, and Fast Ethernet connectivity, the Zebra ZE51142-L01A000Z is configured for advanced tracking in demanding print-and-apply environments. It prints direct thermal and thermal transfer labels at 203 dpi and up to 18 in/s across a 4.09-inch print width, with a maximum print length of 13.08 ft and media up to 4.49 inches wide and 9.84 mil thick; transmissive and reflective sensors accommodate die-cut, continuous, and black mark stock. A 4.3-inch color LCD touchscreen with a real-time clock and 512 MB of standard memory supports ZPL, ZPL II, and ZBI 2.0 emulation, plus a broad symbology set spanning PDF417, Data Matrix, QR Code, and Aztec. Operating from 31°F (-0.6°C) to 104°F (40°C) at 20% to 95% relative humidity, the 32.41 lb all-metal chassis carries cTUVus, CE, FCC Class A, and Energy Star approvals.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra ZE511 is an industrial-grade thermal transfer and direct thermal print engine designed for procurement and IT teams deploying high-volume label printing in demanding environments. Built for manufacturing, warehousing, automotive, pharmaceuticals, and food and beverage operations, it delivers print speeds up to 18 ips at 203 dpi and a maximum print width of 4.09 in., making it well suited for continuous, mission-critical production lines. Its all-metal, fanless construction resists debris and water ingress, while a 4.3 in. full-color LCD touch screen simplifies setup and operation with minimal training. Standard connectivity spanning USB 2.0, RS-232 Serial, 10/100 Ethernet, and Bluetooth 4.1 ensures straightforward integration into existing wired and wireless infrastructure. Optional field-installable UHF RFID encoding extends the engine's value into advanced asset tracking and traceability workflows, and ZPL/ZPL II compatibility keeps it at home in any established Zebra environment.
Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 18 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 13.08 ft
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Code 11
  • Code 39
  • Code 93
  • Code 128 (A/B/C)
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC-A with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS-14
  • AZTEC
Real Time Clock Yes
Application/Usage
  • Desktop
  • Automotive
  • Pharmacy
  • Manufacturing
  • Warehouse
Features LCD Display
Character Sets
  • Unicode
  • 850
Connectivity Technology Wired & Wireless
Optional Connectivity
  • Parallel
  • Wireless LAN
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 512 MB
Interfaces/Ports
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Bluetooth Yes
RFID Yes
Display & Graphics
Display Screen Yes
Screen Size 4.3"
Display Screen Type LCD
Touchscreen Yes
Media Types & Handling
Media Type
  • Label
  • Die-cut Label
  • Continuous Label
  • Black Mark
Media Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness 9.84 mil
Maximum Label Width 4.49"
Fonts & Emulation
Language Emulation
  • ZPL
  • ZBI 2.0
  • ZPL II
Power Description
Power Source AC Supply
Frequency
  • 47 Hz
  • 63 Hz
Environmental Conditions
Operating Temperature 31°F (-0.6°C) - 104°F (40°C)
Operating Relative Humidity 20% - 95%
Storage Temperature 40°F (4.4°C) - 160°F (71.1°C)
Storage Relative Humidity 5% - 95%
Physical Characteristics
Height 11.8"
Width 9.6"
Depth 14.9"
Weight (Approximate) 32.41 lb
Miscellaneous
Power Cable Localization US
Platform Supported PC
Certifications & Standards Standards approvals: IEC 62368-1; EN 55032, Class A; EN 55035; EN 61000-3-2, 3-3 Product markings, but not limited to: cTUVus; CE; FCC A; ICES-003; VCCI; RCM; CCC; EAC; S-Mark; KCC; BSMI; India-BIS; In-Metro; Energy Star
Energy Star Yes
Documents
ico-plus ico-minus
Product document ze511-ze521.pdf ZE51142-L01A000Z  (PDF)
