Zebra

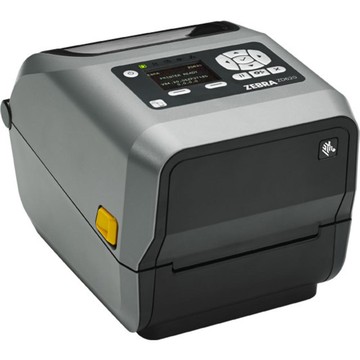

Zebra ZD620 Barcode Printer Thermal Transfer, 300 dpi, 6 in/s, USB Host, Bluetooth Low Energy, Ethernet

SKU:

ZD62043-T01F00EZ

Desktop Label Printer, Zebra ZD620t, Thermal Transfer, 300 dpi, 6ips, USB/USB Host/Bluetooth/Serial/Ethernet, Icon User Interface, 4-inch Print Width
Description
ico-plus ico-minus

The Zebra ZD620 Barcode Label Printer is the ultimate solution for high-performance printing needs. Designed to optimize print speed up to 8 inches per second at 203 dpi, this printer stands out with exceptional print quality and ease of use. Whether you require direct thermal or thermal transfer modes, the ZD620 caters to a diverse range of applications, making it ideal for retail, healthcare, and logistics. Its intuitive color LCD and status icons simplify printer management, ensuring minimal downtime and maximized productivity.


Key Features:
  • Best-in-class print speeds: Up to 8 ips @ 203 dpi and 6 ips @ 300 dpi
  • Easy integration: Compatible with EPL and ZPL printer languages
  • Comprehensive connectivity: USB, Ethernet, and Bluetooth Low Energy options
  • Movable media sensor: Compatible with a variety of media sizes
  • Optional battery: Cordless operation for versatile printing

Specifications:
  • Print Methods: Thermal Transfer or Direct Thermal
  • Print Resolution: 203 dpi (optional 300 dpi)
  • Maximum Print Width: 4.09 in. @ 203 dpi / 4.27 in. @ 300 dpi
  • Dimensions: ZD620d: 8.7 in. x 7.0 in. x 5.9 in.; ZD620t: 10.5 in. x 8.0 in. x 7.5 in.
  • Weight: ZD620d: 3.6 lb; ZD620t: 5.3 lb
  • Operating Temperature: 40° to 105° F
  • Warranty: 2 years against defects

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Equipment Format: Desktop

  • Connection: Serial, USB, Ethernet

  • Printing Technology: Thermal Transfer

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 5.98 in/s
Maximum Print Resolution (dpi) 300
Maximum Print Width 4.25"
Application/Usage Desktop
Print Technology Thermal Transfer
Memory
Standard Memory 512 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Media Types & Handling
Media Type
  • Tag
  • Label
  • Receipt
  • Black Mark
  • Reflective
  • Gap
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Roll
  • Tag Stock
  • Continuous Receipt
  • Wristband
Maximum Roll Diameter 5"
Maximum Label Width 4.65"
Maximum Label Length 39.02"
Power Description
Power Source AC Supply
Physical Characteristics
Height 7.6"
Width 8"
Depth 10.5"
Weight (Approximate) 5.50 lb
Miscellaneous
Package Contents
  • ZD620 Thermal Transfer Printer
  • Empty Ribbon Take-up Cores (1 in. and 0.5 in.)
  • 2 x 300 m Ribbon Core Adapter for Non-Zebra Ribbon
  • AC Power Supply
  • Power Cords (EU & UK)
  • USB Cable
  • Quick Start Guide
  • Regulatory Guide
Cables Included
  • USB
  • AC
Power Adapter Included Yes
Energy Star Yes
Documents
ico-plus ico-minus
Product document mod-zd620-zebra-label-printer-datasheet.pdf ZD62043-T01F00EZ Product document zd620-customer-presentation-en-us.pdf ZD62043-T01F00EZ Product document zd620-technical-specifications-a4-en-us.pdf ZD62043-T01F00EZ Product document mod-zd620-zebra-label-printer-datasheet.pdf MOD-ZD620
