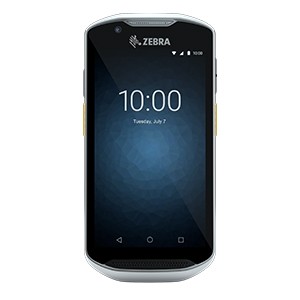

Cool Corning Gorilla Glass fronts a 5-inch Full HD touchscreen on the Zebra TC57x . This rugged Android handheld pairs WWAN and WLAN connectivity with a 2D SE4720 imager, Snapdragon 660 processor, 4 GB RAM, 32 GB storage, and a 4150 mAh battery for fast mobile data capture and enterprise work.
Select model
Description
The Zebra TC57x is a rugged enterprise handheld computer built for field service technicians, retail associates, logistics operators, and government workers who need dependable mobile computing through the longest and most demanding shifts. Powered by a Qualcomm Snapdragon 660 octa-core processor running at 2.45 GHz with 4 GB RAM and 32 GB storage, it runs Android — upgradeable to Android 14 — for a secure, scalable enterprise deployment. The SE4720 2D imager delivers fast, point-and-shoot barcode capture across 1D and 2D symbologies, while WWAN, Wi-Fi 6 with 2x2 MU-MIMO, Bluetooth 5.0, NFC, and USB 2.0 keep workers connected in virtually any environment. A 5.0-inch Full HD 1920 x 1080 touchscreen with Corning Gorilla Glass, water droplet rejection, and a fingerprint-resistant coating ensures clear, reliable interaction indoors and out. IP65/IP68 sealing with the battery installed, military-grade drop resistance, and a 4150 mAh PowerPrecision+ battery with Warm Swap and fast charging complete a platform engineered for all-day enterprise productivity.
Documents
mod-tc57x-zebra-handheld-terminals-datasheet.pdf MOD-TC57X
mod-tc57x-zebra-handheld-terminals-user-manual.pdf MOD-TC57X
FAQs
What barcode scanning capability does the Zebra TC57x offer, and how far can it read barcodes?
The Zebra TC57x is equipped with the SE4720 1D/2D scan engine, which delivers point-and-shoot barcode capture with a sweet spot of up to 24 inches away and handles large barcodes at close range. An optional SE55 Advanced Range scan engine is also available for longer-distance capture needs.
What wireless connectivity options are built into the Zebra TC57x?
The Zebra TC57x supports WWAN cellular, WLAN with Wi-Fi 6 and 2x2 MU-MIMO, Bluetooth 5.0, NFC, and USB 2.0 High Speed in both host and client modes. The cellular radio also carries AT&T FirstNet Ready and Verizon PN certifications, and the device accepts one nano SIM plus one eSIM.
How durable is the Zebra TC57x, and what environmental conditions can it handle?
The TC57x carries IP65 and IP68 sealing ratings with the battery installed, survives multiple 4-foot drops to tile over concrete per MIL-STD-810G, and is rated for operation between -20°C and 50°C. The touchscreen and scanner window use Corning Gorilla Glass for scratch and shatter resistance.
What processor and memory does the Zebra TC57x use, and which Android version does it support?
It runs on a Qualcomm Snapdragon 660 octa-core processor at 2.45 GHz with 4 GB RAM and 32 GB internal storage. The operating system is Android, upgradeable to Android 14.
How long does the Zebra TC57x battery last, and can it be swapped without powering down the device?
The PowerPrecision+ rechargeable Li-Ion battery is rated at over 4150 mAh and supports fast charging at up to 2.4 A. Warm Swap mode allows the battery to be replaced within two minutes without turning off the device or closing active applications.
Which enterprise sectors and workflows is the Zebra TC57x designed to support?
The TC57x is targeted at retail, field service, direct store delivery, parcel and light courier operations, and government and public safety use cases. Its combination of cellular connectivity, 13 MP rear camera, 5 MP front camera, and enterprise voice features supports tasks such as proof of delivery, inventory management, eCitation, and remote expert video calling.
