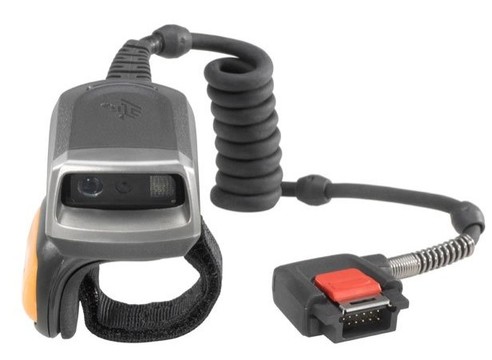

Zebra RS5000, short cable, WT41N0, 2D, kit
RS5000-LCBSWR
Select model
The Symbol RS507 Ring Barcode Scanner is designed for hands-free, efficient scanning of both 1D and 2D barcodes. With its comfortable ring design, Bluetooth® connectivity, and unmatched durability, this scanner enhances productivity in warehouse and field applications. Its ergonomic features allow for seamless operation while handling packages or products, maximizing worker efficiency. Advanced technology ensures rapid and accurate scanning even in challenging environments, making the RS507 an essential tool for tracking and tracing in various industries.
Key Features
- Hands-free scanning: Frees up both hands for maximum efficiency.
- Bluetooth® cordless freedom: Provides enhanced mobility and comfort.
- Best-in-class scanning: Fast and accurate capture of 1D and 2D barcodes.
- Advanced ergonomics: Suitable for all hand sizes, right or left-handed use.
- Durable design: IP54 rating and 6 ft./1.8m drop specification ensure reliability.
Specifications
- Dimensions: 1.16 in. H x 2.1 in. W x 2.92 in. L
- Weight: Triggerless standard battery: 4.3 oz./121.4 g
- Interface: Bluetooth® Class II, v 2.1 and corded options
- Optical Resolution: 752 H x 480 V pixels (gray scale)
- Operating Temperature: -4° to 131° F (-20° to 55° C)
- Drop Specification: 6 ft./1.8 m to concrete
- Humidity: 5% to 85% non-condensing
- Battery: Standard: Li-Ion 970mAh, Extended: Li-Ion 1940mAh
Main Features
-
Rugged: Industrial
-
Connectivity: Corded
-
Scanner Capability: 2D, Imager
| Technical Information | |
|---|---|
| Connectivity Technology | Cable |
| Scanning Capability |
|
| Barcode Symbology Supported |
1D:
|
| Image Sensor Type | Imager |
| Physical Characteristics | |
|---|---|
| Form Factor | Wearable |
| Width | 1.3" |
| Depth | 1.1" |
| Length | 2" |
| Weight (Approximate) | 3.25 oz |
rs5000.pdf RS5000-LCBSWR
mod-rs507-zebra-readers-datasheet.pdf MOD-RS507
mod-rs507-zebra-readers-quick-guide-1.pdf MOD-RS507
mod-rs507-zebra-readers-user-manual.pdf MOD-RS507
