Zebra

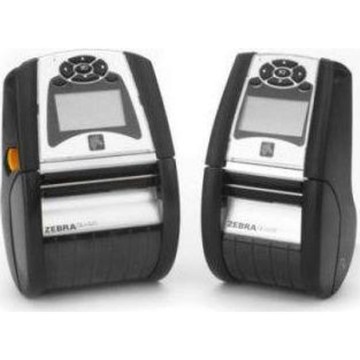

Zebra QLn320 Impresora de etiquetas móvil Térmica directa, 3 pulgadas, 203 dpi, 240.9 in/min, USB, Wi‑Fi, Bluetooth 3.0, RTC

SKU:

QN3-AUNA0M00-00

As Zebra's third generation of QL printers, the QLn series extends these QL-platform benefits to the ''nth'' powerwhether you choose the QLn320 for 3-inch-wide printing, or the QLn220 for print widths up to 2 inches. A new seamless, one-piece design and tempered-glass display join the printer's rubber-infused over -molding to make the lightweight printer even more durable. The QLn printer can boost your operation's productivity through a larger, sharper, easier-to-navigate display; faster, hig
Description
ico-plus ico-minus

The Zebra QLn320 Portable Barcode Printer is engineered to elevate your mobile printing experience with its robust design and high-performance features. As part of Zebra's QL series, it guarantees exceptional durability and efficiency. With its user-friendly interface, fast printing speeds, and seamless integration capabilities, the QLn320 is ideal for a variety of applications in retail, manufacturing, and logistics, allowing you to print high-quality labels and receipts on the go.


Key Features

  • Durable Build: Designed with over-molding and tempered-glass display for maximum resilience.
  • Fast Printing: Achieve print speeds up to 4 inches per second with crisp, clear output.
  • Seamless Integration: Compatible with Zebra's Link-OS platform for easy network management.
  • Remote Management: Monitor and manage the printer using Zebra's Profile Manager.
  • Enhanced Battery Life: Equipped with PowerPrecision+ technology to monitor battery health and manage power usage.

Specifications

  • Print Technology: Direct thermal
  • Max Print Width: 3 inches (72 mm)
  • Max Print Speed: Up to 4 inches per second
  • Memory: 256 MB Flash, 128 MB RAM
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Weight: 1.25 lbs (0.57 kg)
  • Connectivity: 802.11n, Bluetooth 3.0
  • Media Types Supported: Die-cut labels, linerless labels, receipt paper

Main Features

  • Equipment Format: Mobile

  • Rugged: Commercial

  • Connection: Serial, USB, Bluetooth

  • Real Time Clock: Yes

  • Optional Upgrades: Clip Mount

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 2.90"
Barcode Symbology Supported
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar
  • Interleaved 2 of 5
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-8
  • PDF-417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • RSS
  • GS1 DataBar
  • Aztec Code
  • Data Matrix
  • TLC 39
  • FIM
  • POSTNET
  • Plessey
Peel Facility Yes
Real Time Clock Yes
Application/Usage Mobile
Features
  • Belt Clip
  • Tear Bar
  • Mirror Printing
  • Label Odometer
  • Vertical Printing
  • Horizontal Printing
  • Dust Resistant
  • Water Resistant
  • Hand Strap
  • Shoulder Strap
Print Technology Direct Thermal
Memory
Standard Memory 128 MB
Flash Memory 256 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Linerless
  • Black Mark
  • Gap
  • Roll Fed
  • Direct Thermal Label
  • Label
Media Sensor
  • Transmissive Media Sensor
  • Label Taken Sensor
  • Reflective Media Sensor
Media Thickness 6.50 mil
Maximum Roll Diameter 2.60"
Maximum Label Width 3.10"
Maximum Label Length 32"
Label Core Size 0.75"
Fonts & Emulation
Language Emulation
  • CPCL
  • ZPL
  • EPL
  • XML
Power Description
Power Source Battery
Input Voltage 7.4 V DC
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Rechargeable Yes
Physical Characteristics
Form Factor Portable
Height 3.3"
Width 4.6"
Depth 6.8"
Weight (Approximate) 1.60 lb
Miscellaneous
Package Contents
  • QLn320 Mobile Printer
  • Software & Drivers CD
  • Battery
Platform Supported PC
Certifications & Standards
  • IP54
  • FCC Part 15, Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B
  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • CE
  • UL
  • TUV
  • CSA
  • IP43
  • IP54
  • Unicode
  • UTF-16
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mod-qln320-zebra-label-printer-datasheet.pdf QN3-AUNA0M00-00 Product document mod-qln320-zebra-label-printer-quick-guide.pdf QN3-AUNA0M00-00 Product document mod-qln320-zebra-label-printer-user-manual.pdf QN3-AUNA0M00-00 Product document qln-series-product-spec-sheet-en-us.pdf QN3-AUNA0M00-00 Product document mod-qln320-zebra-label-printer-datasheet.pdf MOD-QLN320 Product document mod-qln320-zebra-label-printer-quick-guide.pdf MOD-QLN320 Product document mod-qln320-zebra-label-printer-user-manual.pdf MOD-QLN320
