Zebra

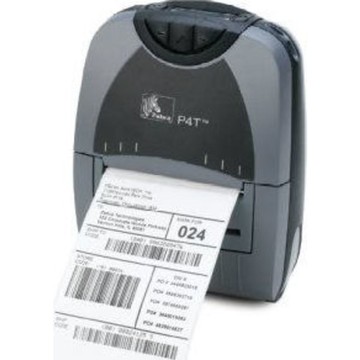

P4T Mobile Thermal Transfer Printer (203 dpi, 802.11g)

SKU:

P4D-0UG00000-00

The Zebra P4D-0UG00000-00 is a genuine Zebra thermal transfer printer. Designed to Zebra OEM specifications for reliable, warranty-safe operation.
Description
ico-plus ico-minus

The Zebra P4T Portable Barcode Printer is your ultimate solution for on-the-go printing, seamlessly combining mobility with robust functionality. Ideal for industries such as manufacturing, logistics, and healthcare, this printer delivers high-quality thermal transfer and direct thermal prints up to 4 inches wide. Its rugged design ensures durability even in harsh environments, while advanced wireless connectivity keeps you connected wherever you are. Experience enhanced workforce efficiency and accuracy with easy label printing right at the point of application.


Key Features:

  • Advanced wireless connectivity: Bluetooth® 2.0 and secure 802.11b/g options
  • Durable printing: Long-lasting thermal transfer labels that resist harsh outdoor conditions
  • User-friendly operation: Fast media and ribbon loading with smart battery monitoring
  • Rugged design: IP54 dust and water resistance with drop tolerance of up to 5 feet
  • Versatile applications: Ideal for indoor and outdoor use across various industries

Specifications:

  • Printer Name: P4T
  • Standard Features:
    • 8 MB Flash / 16 MB SRAM memory
    • Thermal transfer or direct thermal printing modes
    • Large LCD for easy navigation
  • Print Specifications:
    • Resolution: 203 dpi
    • Maximum Print Width: 4.09 inches
    • Maximum Print Speed: 3"/76.2 mm per second (DT), 1.5"/38.1 mm per second (TT)
  • Environmental:
    • Operating Temperature: -4°F to 122°F
    • Storage Temperature: -22°F to 149°F
  • Weight: 2.9 lbs (1.32 kg) with ribbon and battery

Main Features

  • Equipment Format: Mobile

  • RFID: Yes

  • Connection: Serial, USB

  • Printing Technology: Thermal Transfer

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 1.50 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar
  • Interleaved 2 of 5
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 and 5 Digit Extension
  • PDF-417
  • Maxi Code
  • GS1 DataBar
  • QR Code
  • RSS
  • Aztec Code
  • TLC 39
Features Shoulder Strap
Print Technology Thermal Transfer
Memory
Standard Memory 16 MB
Memory Technology SRAM
Flash Memory 8 MB
Interfaces/Ports
Serial Port Yes
USB Yes
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11g
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Fanfold
  • Receipt
  • Tag
  • Tag Stock
  • Black Bar
  • Gap
  • Continuous Label
  • Continuous Receipt
Media Thickness 8.50 mil
Maximum Roll Diameter 2.60"
Maximum Label Width 4.12"
Label Core Size 0.75"
Fonts & Emulation
Language Emulation
  • EPL
  • ZPL
  • XML
  • CPCL
Power Description
Power Source Battery
Input Voltage 7.4 V DC
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Rechargeable Yes
Physical Characteristics
Form Factor Portable
Height 8.6"
Width 7"
Depth 3"
Weight (Approximate) 2.90 lb
Miscellaneous
Package Contents
  • P4T Label Printer
  • Battery
  • Shoulder Strap
Platform Supported PC
Certifications & Standards
  • FCC Part 15
  • EN55022 Class B limit
  • FCC
  • Industry Canada
  • IEC 60950
  • NRTL marking
  • EMC
  • LVD
  • R&TTE Directives
Warranty
Limited Warranty 1 Year
