Zebra

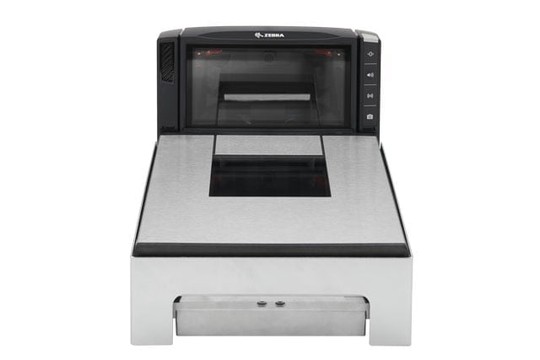

Zebra SpeedScan MP72 Deluxe Barcode Scanner, Multi-plane, Medium, Single interval, DLC glass, High swipe speed

SKU:

MP7201-MNDLN000US

The Zebra MP7201-MNDLN000US is a cable-connected, multi-plane in-counter barcode scanner rated at a maximum operating power consumption of 2.75 W, making it a low-draw option for high-volume checkout lanes in retail, pharmacy, self-checkout, and loyalty program environments. White LED illumination supports reading in ambient light up to 86080 lux, and the scanner captures image output in BMP, JPEG, and RAW formats. Onboard features include a data formatter, notification LED, Sensormatic EAS, Checkpoint EAS, and diagnostic reporting. The unit carries an IP5X ingress protection rating and is noted as spill resistant, with an operating temperature range of 32°F (0°C) to 104°F (40°C) and non-condensing humidity tolerance from 20% to 95%. Measuring 15.7 in long, 11.5 in wide, 5 in high, and 4 in deep, the scanner weighs 15.92 lb and is backed by a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MP72 Multi-Plane Scanner is a family of in-counter barcode imagers engineered for high-throughput retail and point-of-sale environments. Designed to deliver omnidirectional capture of 1D and 2D barcodes, the MP72 series combines a durable sapphire-glass window with multi-plane imaging to reduce rescans and accelerate checkout. Models span short- and long-range configurations, with options that include integrated scales, color camera modules and driver’s-license parsing to meet varied store workflows. With cable-based connectivity for fixed installations and worldwide availability across variants, the MP72 lineup provides reliable, service-friendly performance for retailers, grocery operators, kiosks and logistics use cases that demand consistent, durable scanning at the lane.

Key Features

  • Omnidirectional multi-plane capture: Rapid barcode reading from multiple angles reduces manual presentation and speeds transaction throughput at busy checkout lanes.
  • Durable sapphire window: Sapphire-glass front protects the imaging engine and maintains reliable performance under heavy daily use.
  • Flexible range options: Available in short- and long-range variants to suit close-in POS lanes or extended presentation distances.
  • Modular functionality: Configurations include optional integrated scales, color cameras and driver’s-license parsing to support expanded retail workflows.
  • Scanner-only, fixed deployment: Cable-based connectivity supports secure, permanent installation and straightforward integration into existing POS counters.

Specifications

  • Brand: Zebra
  • Product Family: MP72 / MP7200 / MP7201
  • Product Type: In-counter barcode scanner
  • Form Factor: Multi-plane
  • Scanner Type: Imager / Multi-Plane Scanner
  • Supported Code Types: 1D, 2D
  • Window Material: Sapphire glass
  • Scanner Range: Short, Long
  • Connectivity: Scanner only; requires cable
  • Durability / Intended Environment: Retail / Grocery
  • Integrated Scale Included: Optional (available on some models)
  • Camera Included: Optional (color camera available on some models)
  • Driver's License Parsing: Optional (available on some models)
  • Region / Geographical Availability: Worldwide / United States (model dependent)
Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Features
  • Data Formatter
  • Notification LED
  • Sensormatic EAS
  • Checkpoint EAS
  • Diagnostic Reporting
Image Formats
  • BMP
  • JPEG
  • RAW
Maximum Ambient Light 86080 lux
Illumination Type LED
Illumination Color White
Power Description
Maximum Operating Power Consumption 2.75 W
Environmental Conditions
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 20% to 95%
Physical Characteristics
Durability Spill Resistant
Height 5"
Width 11.5"
Depth 4"
Length 15.7"
Weight (Approximate) 15.92 lb
Miscellaneous
Ingress Protection (IP) Rating IP5X
Application/Usage
  • Retail
  • Merchandising
  • Warehouse
  • Pharmacy
  • Self-checkout
  • Loyalty Program
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mp72.pdf MP7201-MNDLN000US  (PDF)
