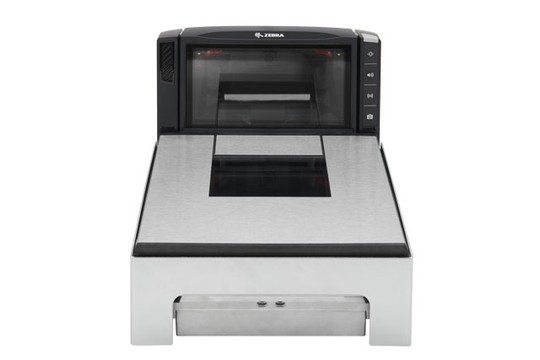

Zebra MP7201 Barcode Scanner Multi-Plane, 1D/2D, Short Range, Requires Cable, DLC Glass

SKU:

MP7201-LNDLN000US

Cable-connected and rated IP5X, the Zebra MP7201-LNDLN000US is a multi-plane in-counter barcode scanner built for retail, pharmacy, self-checkout, and loyalty program applications. Its white LED illumination handles 1D, 2D, GS1, and Digimarc barcodes on paper and mobile devices, reading in ambient light up to 86080 lux with offset illumination to capture reflective surfaces on phones and glossy packaging. The scanner outputs images in BMP, JPEG, and RAW formats and includes data formatting, notification LED, diagnostic reporting, and both Sensormatic and Checkpoint EAS integration. Maximum operating power draw is 2.75 W, supporting low-energy checkout environments. The scanning surface uses Diamond-Like Coating (DLC) glass for durability, and the unit is spill resistant. At 17.86 lb with a 20-inch length, 11.5-inch width, 5-inch height, and 4-inch depth, it operates from 32°F (0°C) to 104°F (40°C) and stores from -40°F (-40°C) to 158°F (70°C) across 20% to 95% non-condensing humidity. A 1-year limited warranty applies.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MP72 Multi-Plane Scanner is a family of in-counter barcode imagers engineered for high-throughput retail and point-of-sale environments. Designed to deliver omnidirectional capture of 1D and 2D barcodes, the MP72 series combines a durable sapphire-glass window with multi-plane imaging to reduce rescans and accelerate checkout. Models span short- and long-range configurations, with options that include integrated scales, color camera modules and driver’s-license parsing to meet varied store workflows. With cable-based connectivity for fixed installations and worldwide availability across variants, the MP72 lineup provides reliable, service-friendly performance for retailers, grocery operators, kiosks and logistics use cases that demand consistent, durable scanning at the lane.

Key Features

  • Omnidirectional multi-plane capture: Rapid barcode reading from multiple angles reduces manual presentation and speeds transaction throughput at busy checkout lanes.
  • Durable sapphire window: Sapphire-glass front protects the imaging engine and maintains reliable performance under heavy daily use.
  • Flexible range options: Available in short- and long-range variants to suit close-in POS lanes or extended presentation distances.
  • Modular functionality: Configurations include optional integrated scales, color cameras and driver’s-license parsing to support expanded retail workflows.
  • Scanner-only, fixed deployment: Cable-based connectivity supports secure, permanent installation and straightforward integration into existing POS counters.

Specifications

  • Brand: Zebra
  • Product Family: MP72 / MP7200 / MP7201
  • Product Type: In-counter barcode scanner
  • Form Factor: Multi-plane
  • Scanner Type: Imager / Multi-Plane Scanner
  • Supported Code Types: 1D, 2D
  • Window Material: Sapphire glass
  • Scanner Range: Short, Long
  • Connectivity: Scanner only; requires cable
  • Durability / Intended Environment: Retail / Grocery
  • Integrated Scale Included: Optional (available on some models)
  • Camera Included: Optional (color camera available on some models)
  • Driver's License Parsing: Optional (available on some models)
  • Region / Geographical Availability: Worldwide / United States (model dependent)
Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Features
  • Data Formatter
  • Notification LED
  • Sensormatic EAS
  • Checkpoint EAS
  • Diagnostic Reporting
Image Formats
  • BMP
  • JPEG
  • RAW
Maximum Ambient Light 86080 lux
Illumination Type LED
Illumination Color White
Power Description
Maximum Operating Power Consumption 2.75 W
Environmental Conditions
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 20% to 95%
Physical Characteristics
Product Material Diamond-Like Coating (DLC) Glass
Durability Spill Resistant
Height 5"
Width 11.5"
Depth 4"
Length 20"
Weight (Approximate) 17.86 lb
Miscellaneous
Ingress Protection (IP) Rating IP5X
Application/Usage
  • Retail
  • Merchandising
  • Warehouse
  • Pharmacy
  • Self-checkout
  • Loyalty Program
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mp72.pdf MP7201-LNDLN000US  (PDF)
