Zebra

Zebra MC94, SE58, Wi-Fi, Bluetooth, 6GB RAM/128GB, 43 Key, GMS

SKU:

MC9401-0G1M6CSS-NA

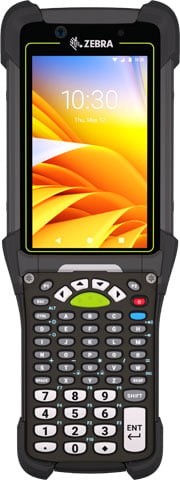

Fitted with the SE58 Extended Range scan engine, the Zebra MC9401-0G1M6CSS-NA reads 1D and 2D barcodes at distances up to 100.07 ft using a green laser aimer and trigger-activated imager. The gun-form-factor terminal runs on a Qualcomm QCM4490 octa-core processor at 2.40 GHz backed by 6 GB of RAM and 128 GB of flash storage, with the Android OS upgradable to Android 17 and Google Mobile Services included. IEEE 802.11 a/b/g/n/ac/ax Wi-Fi, Bluetooth 5.3 BLE, NFC, and USB Type-C cover connectivity, while a 16 Megapixel rear camera and 8 Megapixel front camera handle documentation and collaboration. The 7000 mAh removable Li-Ion battery at 3.60 V supports fast charging, and the unit operates from -4 F (-20 C) to 122 F (50 C) with IP65/IP68 sealing and drop resistance exceeding MIL-STD-810H at 12 ft to concrete. Corning Gorilla Glass protects the 4.3-inch WVGA (800 x 480) touchscreen, and the numeric keypad configuration weighs 1.64 lb with battery installed, suited to warehouse, cold storage, port, yard, and manufacturing operations.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MC9400 Ultra-Rugged Companion is a family of purpose-built handheld mobile computers designed for demanding enterprise workflows in warehousing, distribution, manufacturing, cold‑chain and field service. Offered in gun/grip and pistol‑grip form factors with rugged sealing and enterprise-class wireless, this series combines high-performance barcode imaging, ergonomic keypads and long‑life batteries to reduce downtime and accelerate data capture. Variants support extended- and standard-range imagers, Wi‑Fi 6E, NFC and Bluetooth connectivity, UFS flash and Android with Google Mobile Services, enabling secure, manageable deployments that deliver fast scans, reliable wireless synchronization and all‑shift operation for mission-critical mobile applications.

Key Features

  • Rugged reliability: IP65/IP68 sealing and enhanced drop specifications provide dependable operation in harsh industrial, outdoor and cold‑storage environments.
  • Flexible data capture: Options with SE58 extended‑range imagers or SE4770 standard‑range imagers cover in‑hand to long‑distance barcode scanning needs.
  • Enterprise connectivity: Wi‑Fi 6E, NFC, LAN and Bluetooth support secure, high‑throughput communication and seamless integration with back‑end systems.
  • Ergonomic input options: Gun/trigger and pistol grip designs with keypad choices (29, 43 or 53 keys) and a 4.3‑inch touchscreen speed routine data entry and scanning.
  • All‑shift power: High‑capacity battery options (including 5000 mAh and 7000 mAh) and smart battery features sustain extended field use and reduce interruptions.

Specifications

  • Brand: Zebra
  • Product Type: Mobile computer with keypad
  • Form Factor: Gun/grip or pistol/grip handheld
  • Operating System: Android (with Google Mobile Services / Android 17 on some variants)
  • Display Size: 4.3 in
  • Display Protection: Gorilla Glass / Corning Gorilla Glass
  • Imager / Scan Engine: SE58 (extended range) / SE4770
  • Scan Range: Standard and extended options (up to approx. 100 ft / 30.5 m on extended models)
  • RAM: 6 GB
  • Internal Storage: 128 GB UFS
  • Storage Type: UFS
  • Wireless: Wi‑Fi 6E, Bluetooth (including Bluetooth 5.3 on some models), NFC
  • LAN / Connectivity: Ethernet / LAN supported on select models
  • Keypad Options: 29‑key, 43‑key or 53‑key layouts
  • Battery Capacity: 5000 mAh / 7000 mAh
  • Battery Type: PowerPrecision+ / Rechargeable Li‑Ion
  • Processor: Qualcomm 4490 / Qualcomm Octa‑Core 2.4 GHz
  • Ingress Protection Rating: IP65 / IP68
  • Camera (front + rear): 8 MP front and 16 MP rear on supported variants
  • Weight: 743 g (varies by configuration)
  • Dimensions (L x W x H): 240 x 88 x 189 mm
  • Additional: MicroSD slot (on select models), vibrator/haptic feedback, heated display option for cold‑storage variants

Main Features

  • Equipment Format: Gun Grip

  • Range: Extended Range
