Zebra

Zebra MC94, SE4770, Wi-Fi, Bluetooth, 6GB RAM/128GB, 53 Key, GMS

SKU:

MC9401-0G1J6DSS-NA

The Zebra MC9401-0G1J6DSS-NA is a gun from the MC9000 series running Android. Supports Zebra Mobility DNA for enterprise-grade device management.
Description
ico-plus ico-minus

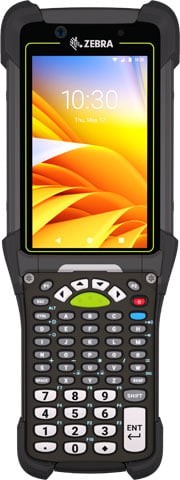

The **Zebra MC9400 Mobile Computer** is the cutting-edge evolution of the ultra-rugged MC9000 Series, designed to excel in the most demanding industrial environments. Equipped with advanced scanning capabilities, the latest Wi-Fi 6E, and 5G connectivity, the MC9400 delivers unmatched performance. Its exceptional scanning range allows users to capture barcodes from over 100 feet, while features like biometric facial recognition enhance security and ease of access. Built to withstand tough conditions, this mobile computer combines agility with power, making it the ideal choice for manufacturing, retail, and warehouse applications.

Key features:
  • Advanced Wireless Connectivity: Supports Wi-Fi 6E and **private/public 5G** for faster communication.
  • Outstanding Scanning Range: Captures barcodes from in-hand up to **100 ft. (30.5 m)** away.
  • Enhanced Security: Biometric facial recognition for secure access.
  • High-Resolution Cameras: Ideal for video collaboration and documentation with a **16 MP rear camera**.
  • Durable Design: IP68 and IP65 rated, ready for the toughest environments.


Specifications:
  • Dimensions: 9.4 in. L x 3.5 in. W x 7.4 in. H
  • Weight: 26.2 oz. / 743 g (with battery)
  • Display: 4.3 in. WVGA; 800 x 480 pixels
  • Battery: 7000 mAh Li-Ion, hot-swap capable
  • Memory: 6 GB RAM / 128 GB Flash
  • Operating System: Upgradeable to **Android 17**
  • Scanning Technology: SE58 Extended Range Scan Engine
  • Camera: Front: 8 MP; Rear: **16 MP** with HDR
  • Operating Temperature: Standard: -4°F to 122°F; Freezer: -22°F to 122°F
  • Protection Ratings: IP68 and IP65 for water and dust resistance

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Range: Standard Range

  • Connection: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4770
Image Sensor Type Imager
Light Source Laser
Scanner Range Standard Range
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • eCompass
  • Motion Sensor
  • Accelerometer
  • Gyroscope
Features
  • Water Resistant
  • Gorilla Glass
  • Push-to-talk
  • VoIP
  • Non Incendive
  • Corning Gorilla Glass
Drop Specification
  • Exceeds per MIL-STD-810H: 12 ft./3.65 m to concrete; Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H
  • Freezer version: 7 ft. (2.1 m) to concrete (-30°C to 50°C) exceeding MIL-STD810H
Processor & Chipset
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 128 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 800 x 480
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 53
Keyboard Type Alphanumeric
Buttons & Keys

Trigger scan button; keypad scan button

Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Software
Operating System Android
Upgradable Operating System Android 17
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Voltage 3.60 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 7.4"
Width 3.5"
Length 9.4"
Weight (With Battery) 1.64 lb
Miscellaneous
Application/Usage
  • Warehouse
  • Logistics
  • Manufacturing
  • Retail
  • Distribution
  • Inventory Management
Ingress Protection (IP) Rating
  • IP65
  • IP68
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Documents
ico-plus ico-minus
Product document mc9400-mc9450.pdf MC9401-0G1J6DSS-NA Product document mc9400-mc9450.pdf MOD-MC9400
