Zebra

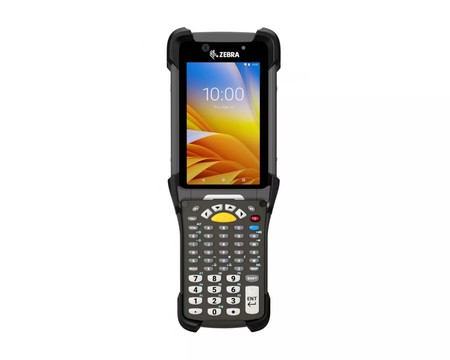

Zebra MC9300 Handheld Mobile Computer

SKU:

MC930B-GSEDG4RW

Fitted with the SE4850 long-range imager, the Zebra MC930B-GSEDG4RW reads 1D and 2D barcodes across an extended scan range and pairs it with an alphanumeric keypad for direct data entry. The octa-core Snapdragon 660 runs at 2.20 GHz, backed by 4 GB of RAM and 32 GB of Flash storage, with microSD, SDHC and SDXC expansion supported. A 4.3-inch WVGA LED touchscreen at 480 x 800 resolution displays the Android 10 interface, while a 13 Megapixel rear camera and Gorilla Glass protection add to the configuration. The 7000 mAh Li-Ion battery at 3.60 V supports wireless charging, and connectivity spans IEEE 802.11a/b/g/n/ac/d/h/i/k/r/w Wi-Fi with MU-MIMO, Bluetooth 5.0 + LE, NFC and USB. IP67 ingress protection and MIL-STD-810G drop ratings of 10 ft. at room temperature and 8 ft. to concrete across temperature support operation from -4°F (-20°C) to 122°F (50°C), covering warehouse, cold chain, manufacturing and government deployments. The 1.69 lb gun-form unit is TAA Compliant.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra MC9300 is an ultra-rugged Android handheld mobile computer built for enterprise workers in warehouses, logistics, manufacturing, retail, cold chain, and government operations who need dependable data capture and computing power in demanding environments. Powered by a Qualcomm Snapdragon 660 octa-core 2.2 GHz processor with 4 GB RAM and 32 GB Flash, it pairs a 4.3 in. WVGA multi-touch display — operable with gloved hands — with a choice of field-replaceable backlit keypads ranging from 29-key numeric to 58-key alpha-numeric configurations. Multiple scan engine options cover standard and extended-range 1D and 1D/2D barcode capture, while IEEE 802.11 a/b/g/n/ac Wi-Fi with 2x2 MU-MIMO, Bluetooth 5.0, NFC, and USB 2.0 keep the device seamlessly connected. IP65 and IP67 sealing, MIL-STD-810G-rated drop resistance, and an operating temperature range of -4°F to 122°F (-20°C to 50°C) ensure reliable performance across harsh conditions, backed by a 7000 mAh PowerPrecision+ Li-Ion battery engineered to sustain extended shifts.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Connection: Bluetooth, USB

  • Keyboard: 53 Key Standard Alpha Numeric

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4850
Image Sensor Type Imager
Scanner Range Long Range
Google Mobile Services (GMS) Yes
Wireless Charging Yes
Sensor Type
  • Ambient Lighting
  • Motion Sensor
  • Accelerometer
Features Gorilla Glass
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • SDXC
  • SDHC
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 480 x 800
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Keyboard/Keypad
Keyboard Type Alphanumeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac/d/h/i/k/r/w
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0 + LE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Camera
Front Camera Yes
Front Camera Resolution 5 Megapixel
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android 10
Battery Information
Battery Capacity 7000 mAh
Battery Included Yes
Battery Voltage 3.60 V
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 7.4"
Width 3.5"
Weight (Approximate) 1.69 lb
Miscellaneous
Ingress Protection (IP) Rating IP67
Country of Origin China
TAA Compliant Yes
Documents
ico-plus ico-minus
Product document mod-zebra-mc9300-zebra-mobile-computing-datasheet.pdf MC930B-GSEDG4RW  (PDF) Product document mod-zebra-mc9300-zebra-mobile-computing-user-manual.pdf MC930B-GSEDG4RW  (PDF) Product document mc9300-specification-sheet-en-us.pdf MC930B-GSEDG4RW  (PDF) Product document 7921e332029d79df54c885cd5b582e4d.pdf MC930B-GSEDG4RW  (PDF)
