Zebra

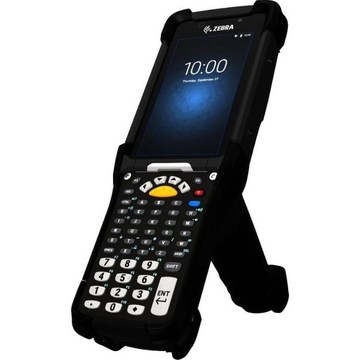

Zebra MC9300, SE965, 1D, SR, Wi-Fi, Bluetooth, 53 Key

SKU:

MC930B-GSADG4RW

portable data collection device, 1D, laser, standard range, screen size: 10,9cm (4,3''), resolution, 800x480 pixels, miscellaneous (properties/characteristics), keypad (Quantity keys 53 keys, alphanumeric), pistol grip, Interactive Sensor, interfaces, Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, processor (Qualcomm Octa Core, 2.2GHz), RAM, RAM: 4 GB, Flash: 32 GB, OS/emulation, Android, accessories, incl.: battery, 7000 mAh, protection class, IP65, IP67
Description
ico-plus ico-minus
The Zebra MC9300 Mobile Computer is the epitome of performance and durability in mobile computing. Built to thrive in industrial settings, this ultra-rugged device combines a familiar Android interface with powerful processing capabilities. With optional front and back cameras, superior scanning technology, and twice the battery life of its predecessor, the MC9300 meets the demands of today's fast-paced operations. Its large touchscreen enhances readability, whether inside a warehouse or outdoors, ensuring your team can capture data efficiently. Upgrade your operations with a device designed for seamless integration and exceptional endurance.

Key Features
  • Powerful 8-core processor with up to 8x RAM and 16x Flash memory for peak performance.
  • Extended battery life with nearly twice the runtime and fast charging capabilities.
  • Superior scanning technology for lightning-fast capture of 1D and 2D barcodes.
  • Highly durable design, water, dust, and drop-proof for harsh environments.
  • Support for Terminal Emulation (TE) apps with no backend modifications required.


Specifications
  • Dimensions: 9.4 in. L x 3.5 in. W x 7.4 in. H
  • Weight: 26.9 oz./765g with battery
  • Display: 4.3" WVGA (800 x 480) color display with Corning Gorilla Glass
  • Processor: Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
  • Operating System: Android 8.1 Oreo
  • Memory: 4 GB RAM/32 GB Flash PSLC
  • Battery: Rechargeable Li-Ion 7000mAh with PowerPrecision+
  • Scanning: SE965 1D, SE4750 SR/DP, SE4850 imaging engines
  • Camera: Rear-facing 13MP, front-facing 5MP
  • Environmental Sealing: IP67 and IP65 ratings

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Connection: Bluetooth

  • Keyboard: 53 Key Standard Alpha Numeric

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Scan Engine Model SE965
Light Source Laser
Barcode Symbology Supported Laser Decode Capability:
  • Code 39
  • Code 128
  • Code 93
  • Codabar
  • Code 11
  • Discrete 2 of 5
  • Interleaved 2 of 5
  • EAN-8
  • EAN-13
  • MSI
  • UPCA
  • UPCE
  • UPC/EAN supplementals
  • Coupon Code
  • Trioptic 39
  • Webcode
  • RSS-14
  • RSS Limited
  • RSS Expanded
  • Chinese 2 of 5
Imaging Decode Capability:
  • Code 39
  • Code 128
  • Code 93
  • Codabar
  • Code 11
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • EAN-8
  • EAN-13
  • UPCA
  • UPCE
  • UPC/EAN supplementals
  • Coupon Code
  • Trioptic 39
  • Webcode
  • TLC39
  • Composite AB
  • Composite C
  • Micro PDF-417
  • PDF-417
  • Macro PDF-417
  • (Macro) Micro PDF-417
  • QR Code
  • RSS Expanded
  • RSS Limited
  • RSS-14
  • Data Matrix
  • Maxi Code
  • US Postnet
  • US Planet
  • UK 4-state
  • Australian 4-state
  • Canadian 4-state
  • Japanese 4-state
  • Dutch Kix
  • Chinese 2 of 5
  • USPS 4-state (US4CB)
  • Aztec
  • microQR
  • Dotcode
Google Mobile Services (GMS) Yes
Sensor Type
  • Ambient Lighting
  • Motion Sensor
Features Gorilla Glass
Drop Specification
  • 10ft To Concrete
  • 8ft To Concrete
Air Electrostatic Discharge (+/-) 15kV AC
Direct Electrostatic Discharge (+/-) 8kV AC
Indirect Electrostatic Discharge (+/-) 8kV AC
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Slot Yes
Memory Card Supported
  • microSD
  • SDXC
  • SDHC
Maximum Memory Card Size Supported 256 GB
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 800 x 480
Backlight Technology LED
Touchscreen Information
Touchscreen Yes
Touchscreen Type Capacitive
Multi-touch Screen Yes
Keyboard/Keypad
Keyboard Type Alphanumeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0 + LE
Software
Operating System Android
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Removable Battery Yes
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 9.4"
Width 3.5"
Depth 7.4"
Weight (Approximate) 1.68 lb
Miscellaneous
Application/Usage
  • Logistics
  • Retail
  • Government
  • Manufacturing
Ingress Protection (IP) Rating IP67
