Zebra

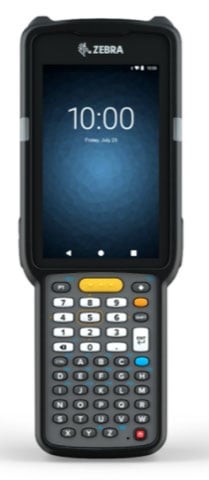

Zebra MC3300ax Mobile Computer Wi-Fi 6, Bluetooth 5.1, Extended-Range 2D Imager, 4.0" Display, 47-Key, 4GB/32GB, Extended Battery

SKU:

MC330X-SE4EG4NA

The SE4850 long-range scan engine in the Zebra MC330X-SE4EG4NA delivers 1D and 2D barcode reads at distances up to 70 ft, setting this configuration apart for warehouse pick operations and large-floor manufacturing environments. That imager pairs with Wi-Fi 6 and Bluetooth 5.1 for wireless connectivity, while NFC and USB round out the interface set. A Snapdragon 660 octa-core processor running at 2.20 GHz is backed by 4 GB RAM and 32 GB of flash storage, with microSD, SDHC and SDXC expansion supported. The included 7000 mAh Li-Ion battery recharges in 5 hours and is rated at 3.60 V. A 4-inch WVGA LED touchscreen at 800 x 480 resolution works alongside a 47-key alphanumeric keypad and two programmable side scan keys. The unit runs Android, upgradable to Android 14, and carries Gorilla Glass protection. IP64 sealing and multiple 6 ft./1.8 m drops to concrete per MIL-STD-810G confirm suitability across an operating range of -4°F (-20°C) to 122°F (50°C). RoHS and REACH compliance apply, and a 1-year limited warranty covers defects in workmanship and materials.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra Wi‑Fi PowerTrack MCax is a rugged family of handheld mobile computers engineered for demanding warehouse, distribution, retail backroom and field-service workflows. Built on an Android platform with Google Mobile Services, the series delivers enterprise-grade Wi‑Fi 6 connectivity, robust Bluetooth and NFC support, and versatile data-capture options—ranging from standard-range to long-range 2D imagers—to accelerate inventory, receiving and asset-tracking tasks. Available in gun, full-size brick and pistol-optional form factors, MCax devices combine extended-capacity batteries, tactile keypads and industrial sealing to maximize uptime, simplify integration with existing systems and sustain productivity across multi-shift operations.

Key Features

  • Enterprise Wi‑Fi 6: 802.11 a/b/g/n/AX support (with 2x2 MU‑MIMO on select SKUs) for higher throughput and reliable connectivity in congested environments.
  • Flexible data capture: Choice of high-performance imagers (SE4770, SE485x) including long- and extended-range 2D scanning to handle diverse barcode distances and print qualities.
  • Rugged and ergonomic designs: Gun, full-size brick and pistol-configurable form factors with IP64 sealing, Gorilla Glass protection and drop/tumble ratings for harsh operational use.
  • All‑day power options: Extended-capacity and 7000 mAh battery variants (BLE-enabled on select models) to reduce downtime and support long shifts.
  • Enterprise-ready Android: Android with Google Mobile Services (GMS), prelicensed Enterprise Browser on some SKUs and upgradeable OS options for secure app deployment and management.

Specifications

  • Brand: Zebra
  • Platform / Operating System: Android with Google Mobile Services (GMS); some SKUs upgradeable to Android 14
  • Processor: Snapdragon 660, up to 2.2 GHz octa-core
  • RAM: 4 GB
  • Storage (Flash / ROM): 32 GB
  • Display: 4.0 in (800 x 480 on selected SKUs)
  • Keypad / Key Counts: Options include 38-key and 47-key (alphanumeric / functional numeric)
  • Form Factors: Gun, Full-size (brick) and pistol-option capable
  • Scanner Models / Types: SE4770 (2D long/standard range), SE485x (2D long/extended range)
  • Maximum Scan Range: Up to 70 ft (selected long-range SKU)
  • Wireless Standards: 802.11 a/b/g/n/AX (Wi‑Fi 6); 2x2 MU‑MIMO on select models
  • Bluetooth: Yes (including Bluetooth 5 / 5.1 on select SKUs)
  • NFC: Yes
  • Connectivity: Wi‑Fi 6, Bluetooth, USB / USB‑A (varies by model)
  • Battery: Extended-capacity options; 7000 mAh available on select SKUs (BLE battery variants noted)
  • Ingress Protection: IP64
  • Drop / Tumble: Drop: 6 ft / 1.8 m (typical); Tumble: 3000 tumbles on select SKUs
  • Touch Protection: Corning Gorilla Glass on selected models
  • Weight: Approximately 2 lbs on selected SKUs
  • Sensors: Built-in sensors present (model-dependent)

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Battery Capacity: Extended

  • IP Rating: IP64

  • Range: Extended Range

  • Connection: USB, NFC

  • Keyboard: 47 Key Alpha Numeric

  • Camera: None

  • Included Battery: Yes

  • Battery Features: BLE Battery

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4850
Image Sensor Type Imager
Scanner Range Long Range
Scanning Distance 70 ft
Google Mobile Services (GMS) Yes
Sensor Type
  • Motion Sensor
  • Accelerometer
  • Gyroscope
Features
  • Water Resistant
  • Gorilla Glass
  • Push-to-talk
Drop Specification Multiple 6 ft./1.8 m drops to concrete across the operating temperature range per MIL-STD-810G


Processor & Chipset
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • SDHC
  • SDXC
Display & Graphics
Screen Size 4"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 47
Keyboard Type Alphanumeric
Buttons & Keys

Two programmable side scan keys
Network & Communication
Wireless LAN Yes
Bluetooth Yes
Bluetooth Standard Bluetooth 5.1
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Camera
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android
Upgradable Operating System Android 14
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.60 V
Maximum Battery Recharge Time 5 Hour
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Full-size
Rugged Yes
Width 2.9"
Depth 1.4"
Length 8"
Weight (Approximate) 1.04 lb
Miscellaneous
Package Contents
  • Mc3300ax Mobile Computer
  • Extended Battery
Application/Usage
  • Warehouse
  • Distribution
  • Manufacturing
  • Retail
Ingress Protection (IP) Rating IP64
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 1 Year
Additional Warranty Information

Subject to the terms of Zebra's hardware warranty statement, the MC3300ax is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment.
