Zebra

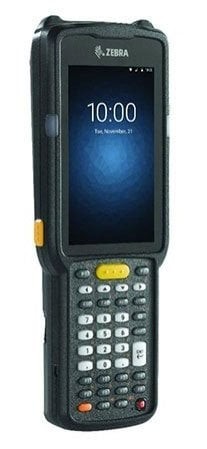

MC330L-SM3EG4NA Brick 45 Degrees

SKU:

MC330L-SM3EG4NA

The MC330L-SM3EG4NA is configured with a 38-key numeric keypad alongside a 4-inch WVGA LED touchscreen, giving warehouse and industrial users a dual-input device that runs Android 8.1 Oreo on a 2.2 GHz octa-core processor. Its 4 GB RAM and 32 GB flash support demanding applications, with microSD, SDHC and SDXC card slots available for expanded storage. Wireless connectivity spans IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w with 2x2 MU-MIMO, Bluetooth 5.0 at speeds up to 2 Mbps, and integrated NFC for peripheral pairing. The 7000 mAh battery is rated for up to three shifts, and rugged credentials include a 6 ft drop specification, 3,000 tumble cycles at 3.3 ft and IP64 sealing. Weighing 13.47 oz, the unit ships from China and carries a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra MC3300 Mobile Computer is an industrial-rugged Android handheld designed for warehouse, distribution, manufacturing, and retail backroom operations where reliable data capture and real-time connectivity are essential. Running Android 7.0 Nougat on a touchscreen-equipped platform, it combines a 4" WVGA color display with a choice of keypad configurations — 29-key numeric, 38-key function numeric, or 47-key alphanumeric — to match the data-entry style of any workflow. Flexible scanning options spanning standard and extended range support tasks from close-proximity item reads to high-rack barcode capture. IEEE 802.11a/b/g/n/ac Wi-Fi, Bluetooth, and NFC keep workers connected to WMS and back-end systems, while IP54-rated sealing and an industrial-grade build help the device withstand the demands of high-volume operations.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Range: Standard Range

  • Connection: Bluetooth

  • Keyboard: 38 Key Function Numeric

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • SDHC
  • SDXC
Display & Graphics
Screen Size 4"
Screen Mode WVGA
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 38
Keyboard Type Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w
Bluetooth Yes
Near Field Communication (NFC) Yes
Camera
Rear Camera Yes
Software
Operating System Android 8.1 Oreo
Physical Characteristics
Width 2.9"
Depth 1.4"
Weight (Approximate) 13.47 oz
Miscellaneous
Country of Origin China
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mc3300x.pdf MC330L-SM3EG4NA  (PDF)
FAQs
ico-plus ico-minus
What scanning options are available on the Zebra MC3300-Brick Mobile Computer?
The MC3300-Brick supports three scanner types: a 1D laser, a standard-range 2D imager, and a long-range 2D imager, giving you flexibility for close-up item reads as well as extended-distance barcode capture typical in tall-rack warehouse environments.
What wireless connectivity does the Zebra MC3300-Brick support for integration with WMS and back-end systems?
The MC3300-Brick includes Wi-Fi (802.11ac), Bluetooth, USB, and NFC, enabling real-time data exchange with warehouse management systems and easy pairing with peripherals such as label printers and ring scanners.
What keypad configurations are offered on the Zebra MC3300-Brick?
Three keypad layouts are available: a 38-key functional numeric, a 47-key alphanumeric, and a 29-key numeric, allowing you to match the input method to your workers' specific workflow requirements.
How rugged is the Zebra MC3300-Brick, and is it suitable for demanding industrial or warehouse environments?
The MC3300-Brick carries an IP54 ingress protection rating and includes ESD protection, making it suited for industrial and retail environments where dust, splashing liquids, and electrostatic discharge are concerns.
What is the battery capacity of the Zebra MC3300-Brick, and will it last a full shift?
The MC3300-Brick is equipped with a 5200 mAh rechargeable battery, designed to provide extended runtime capable of covering full work shifts and reducing downtime for charging.
What operating system does the Zebra MC3300-Brick run, and does it support Push-to-Talk communication?
The MC3300-Brick runs Android 7.1 (AOSP) and includes Push-to-Talk capability, supporting voice-directed workflows alongside standard data capture applications.
