Zebra

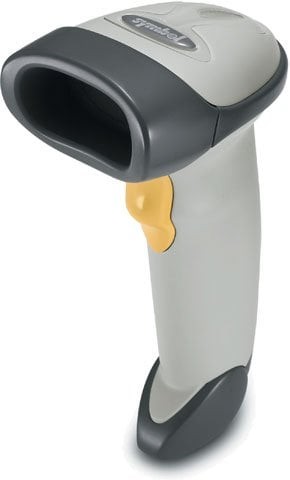

LS2208 Black Decoded Multi Acadi

SKU:

LS2208-SR30007R

The Zebra LS2208-SR30007R is a corded, single-line laser scanner reading 1D bar codes at 100 scan/s across a scanning distance of 43.10 in, resolving Code 39 elements from 3 mil to 40 mil with a minimum print contrast of 20%. Its reading angles span 65 degrees pitch, 60 degrees roll, and 10 degrees skew, and it tolerates ambient light up to 86080 lux, making it viable across varied lighting conditions. Host connectivity covers Keyboard Wedge, USB, Serial, and IBM 46XX interfaces, while input current runs 175 mA with a 90 mA standby draw. Rated IP30 and built to withstand multiple drops at 5.0 ft to concrete, the scanner weighs 5.29 oz and operates from 32 F (0 C) to 122 F (50 C) with 5% to 95% non-condensing humidity tolerance. RoHS compliant and backed by a 5-year limited warranty, it suits retail, inventory, asset tracking, education and library environments.
Prices could not be updated.
Description
ico-plus ico-minus

The Symbol LS2208 Barcode Scanner is the ultimate solution for efficient and reliable scanning needs. With over eight million units sold, this enterprise-class handheld scanner combines ergonomic design with robust functionality. It supports all standard 1D barcodes and even high-density codes, making it perfect for any inventory or retail environment. Built for durability, it withstands daily wear with a rugged build and long-range scanning capabilities, ensuring a seamless checkout experience and increased productivity for your workforce.


Key Features
  • Durable construction with patented single board design and scratch-resistant tempered glass
  • Class-leading working range captures barcodes from up to 25 inches away
  • Plug-and-play simplicity with universal cable and extensive international keyboard support
  • Ergonomic design reduces user fatigue and enhances productivity
  • Flexible operation with optional Intellistand for hands-free or handheld use

Specifications
  • Physical Characteristics:
    • Dimensions: 6.0 in. H x 2.5 in. W x 3.3 in. D
    • Weight: 5.3 oz./150.0 g
    • Color: Cash Register White, Twilight Black
  • Performance:
    • Scan Speed: 100 scans per second
    • Scanning Technology: 650 nm Laser Diode Class 2
  • User Environment:
    • Operating Temperature: 32° to 122° F
    • Storage Temperature: -40° to 158° F
    • Drop Specification: Multiple drops at 5.0 ft. to concrete
  • Warranty: 5 years on workmanship and materials

Main Features

  • Case color: Black

  • Range: Standard Range

  • Connection: Serial, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Light Source Laser
Scan Rate 100 scan/s
Scan Pattern Single Line
Scanner Range Short Range
Scanning Distance 43.10"
Features
  • Ergonomic Design
  • Beep
  • Notification LED
  • Data Formatter
Reading Angle (Skew) 10°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 60°
Maximum Ambient Light 86080 lux
Drop Specification

Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete

Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 40 mil
Air Electrostatic Discharge (+/-) 15kV
Contact Electrostatic Discharge (+/-) 8kV
Interfaces/Ports
Host Interface
  • Keyboard Wedge
  • USB
  • Serial
  • IBM 46XX
Power Description
Input Current 175 mA
Standby Current 90 mA
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Durability Scratch Resistant
Height 6"
Width 2.5"
Depth 3.3"
Weight (Approximate) 5.29 oz
Miscellaneous
Ingress Protection (IP) Rating IP30
Application/Usage
  • Retail
  • Inventory
  • Loyalty Program
  • Education
  • Asset Tracking
  • Library
  • Self-checkout
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 5 Year
Documents
ico-plus ico-minus
Product document ls2208-new.pdf LS2208-SR30007R Product document ls2208-new.pdf MOD-LS2208
