Zebra

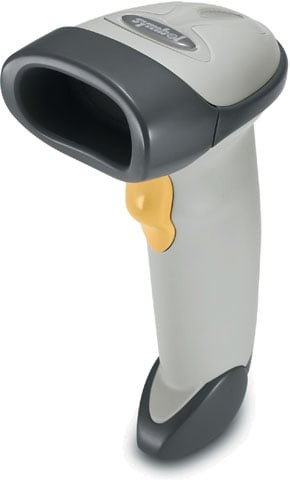

LS2208-SR White USB KIT - NA ONLY: LS2208-SR20001NA Scanner, CBA-U01-S07ZAR USB Cable

SKU:

LS2208-1AZU0100ZNA

At 5.15 oz and measuring 6 in tall by 2.5 in wide by 3.3 in deep, the Zebra LS2208-1AZU0100ZNA is a USB-connected, cash-register-white handheld laser scanner configured as a North America kit that pairs the LS2208-SR20001NA scanner with the CBA-U01-S07ZAR USB cable. Its bi-directional laser scan engine delivers 100 scan/s across a broad depth of field that ranges from near-contact out to 76.00 cm on 40-mil Code 39 stock, and to 43.00 cm on 13-mil 100% UPC targets. Seventeen 1D symbologies are supported, including UPC/EAN with Supplementals, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Codabar, Interleaved 2 of 5, Code 93, Code 11, GS1 DataBar variants and Chinese 2 of 5. The unit is RoHS compliant and carries a 5-year limited warranty, suiting retail point-of-sale, healthcare and education deployments where a lightweight corded scanner is paired directly with a host workstation.
Prices could not be updated.
Description
ico-plus ico-minus

The Symbol LS2208 Barcode Scanner is the ultimate solution for efficient and reliable scanning needs. With over eight million units sold, this enterprise-class handheld scanner combines ergonomic design with robust functionality. It supports all standard 1D barcodes and even high-density codes, making it perfect for any inventory or retail environment. Built for durability, it withstands daily wear with a rugged build and long-range scanning capabilities, ensuring a seamless checkout experience and increased productivity for your workforce.


Key Features
  • Durable construction with patented single board design and scratch-resistant tempered glass
  • Class-leading working range captures barcodes from up to 25 inches away
  • Plug-and-play simplicity with universal cable and extensive international keyboard support
  • Ergonomic design reduces user fatigue and enhances productivity
  • Flexible operation with optional Intellistand for hands-free or handheld use

Specifications
  • Physical Characteristics:
    • Dimensions: 6.0 in. H x 2.5 in. W x 3.3 in. D
    • Weight: 5.3 oz./150.0 g
    • Color: Cash Register White, Twilight Black
  • Performance:
    • Scan Speed: 100 scans per second
    • Scanning Technology: 650 nm Laser Diode Class 2
  • User Environment:
    • Operating Temperature: 32° to 122° F
    • Storage Temperature: -40° to 158° F
    • Drop Specification: Multiple drops at 5.0 ft. to concrete
  • Warranty: 5 years on workmanship and materials

Main Features

  • POS: Yes

  • Case color: White

  • Range: Standard Range

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UPC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • GS1 DataBar (Formerly RSS) Variants
  • Chinese 2 of 5
Light Source Laser
Scan Rate 100 scan/s
Depth of Field
  • 6.00cm - 15.25cm@5mil - Code 39
  • 3.80cm - [email protected] - Code 39
  • 2.54cm - 14.25cm@10mil - Code 39
  • 0cm - 43.00cm@13mil - 100% UPC
  • 0cm - 58.50cm@20mil - Code 39
  • 0cm - 76.00cm@40mil - Code 39
Scan Pattern Bi-directional
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Product Color Cash Register White
Height 6"
Width 2.5"
Depth 3.3"
Weight (Approximate) 5.15 oz
Miscellaneous
Additional Information

USB Cable separate
Country of Origin Mexico
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 5 Year
Documents
ico-plus ico-minus
Product document ls2208.pdf LS2208-1AZU0100ZNA  (PDF)
